Evinrude E-tec 2011 Series - Trim and Tilt

37
SERVICE INFORMATION

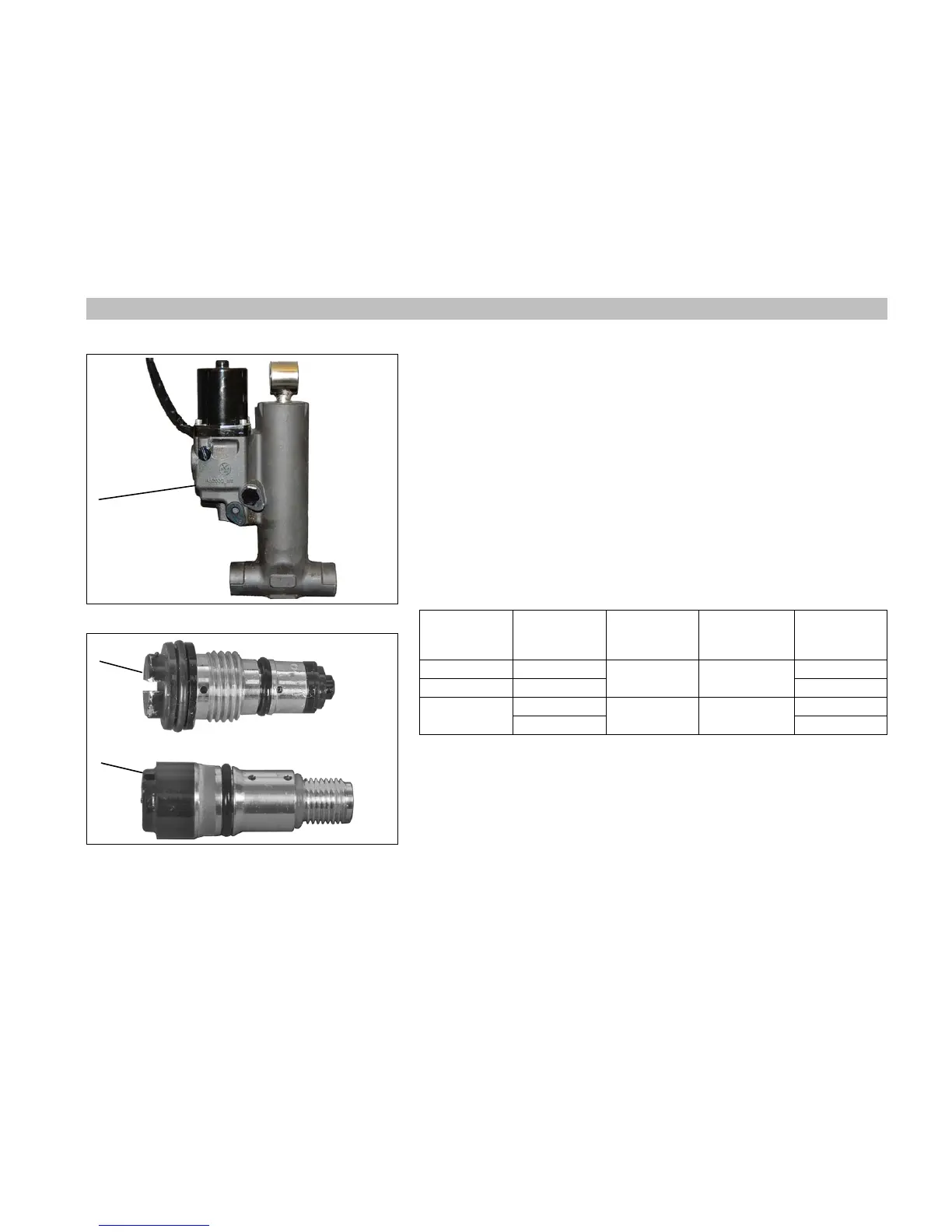

Hydraulic Trim and Tilt Assembly
1. P/N 5007776, Black anodized manifold
Manual Relief Valves
1. P/N 5006321, use in hydraulic trim and tilt assembly, P/N 5005756
2. P/N 5007782 (red anodized), use in hydraulic trim and tilt assembly,
P/N 5007776
1
1
2
TRIM AND TILT
Single Piston Hydraulic Trim and Tilt Assemblies
Identification
Dealers must correctly identify single piston hydraulic trim and tilt assemblies to
order the correct service parts.
The single piston hydraulic trim and tilt assembly is used on 75–90 HP (20 inch)
models in 2005 and on 115–130 HP V4 (20 inch) models in 2007.
Hydraulic Trim and Tilt Assembly, P/N 5005756 superseded to P/N 5007776,
starting in 2008.
Some service parts for these hydraulic trim and tilt assemblies are NOT inter-
changeable. Use the table below and the appropriate Parts Catalog to correctly
identify the hydraulic trim and tilt assembly.
Manual Release Issue
If a hydraulic trim and tilt assembly, P/N 5007776, cannot be lifted manually,
replace the manual release valve, P/N 5007782. The replacement manual
release valve is identified by its red anodized color.
Model Year Models
Hydraulic
Trim and Tilt
Assembly P/N
Manifold
Description
Use Parts
Catalog
2005–2008 75 – 90
5005756
Painted Gloss
Black
2005–2008
2007–2008 115 – 130 2007–2008
2009 & newer
75 – 90
5007776
Anodized Flat
Black
2009 or newer
115 – 130 2009 or newer
