OILING SYSTEM
Code 36; Rear Oil Injection Pump Circuit OPEN

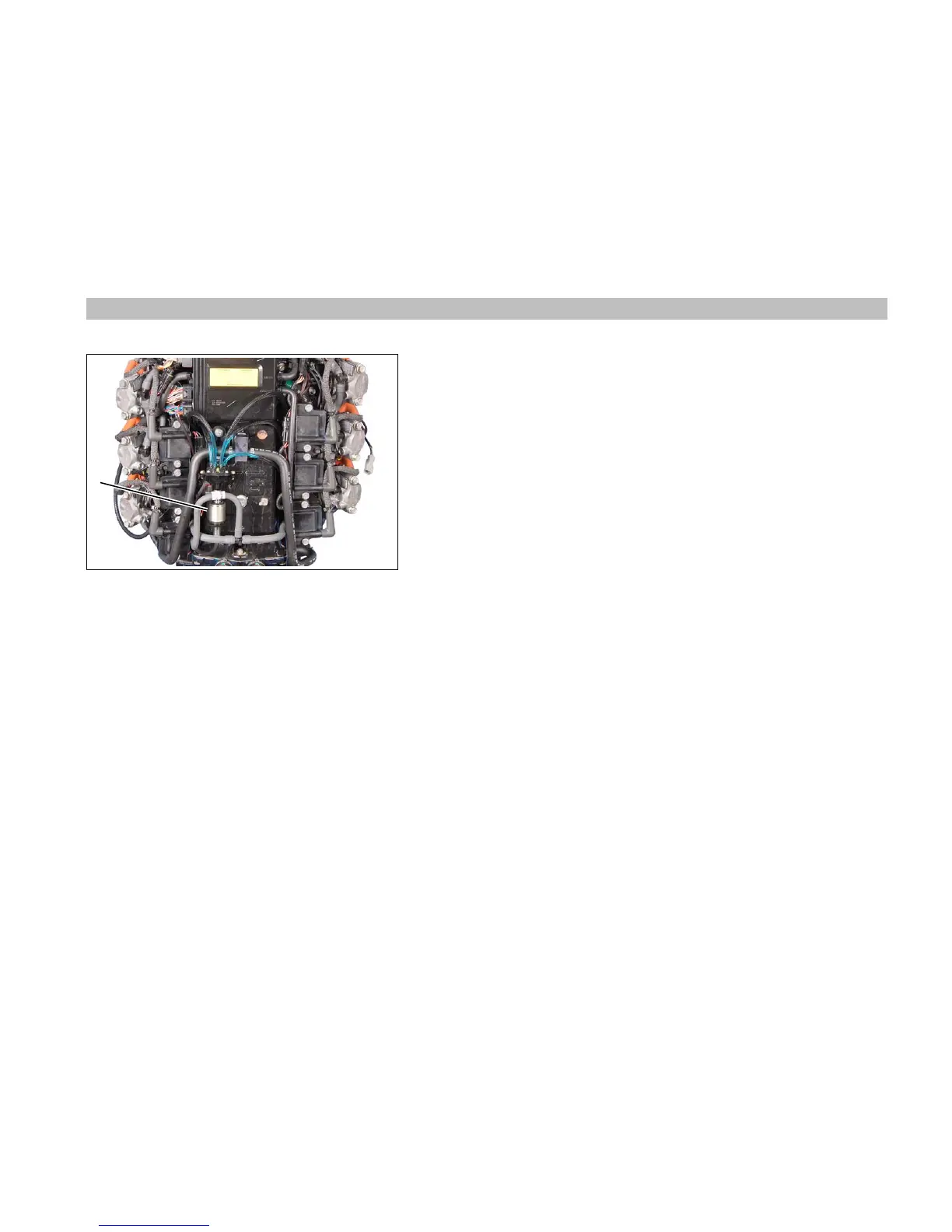

Code 36 is a new service code for Evinrude E-TEC 250 – 300 HP 90° V6 (3.4L)
models with the new rear oil pump. The rear oil pump is powered by the 12 V
electrical circuit. The EMM controls pump operation by rapidly connecting and
disconnecting the pump’s internal coil to ground.
Refer to the 2011 Service Manual for code description.
Possible Causes: Damaged wire harness or electrical connector between EMM
and oil pump. Failed internal coil of oil pump. Failed circuit in EMM.
Troubleshooting procedure: Use the correct service manual to check the fol-
lowing:
• Rear oil pump voltage and control signal. Refer to Cylinder Oil Pump Voltage
Tests.
• Oil injection pump circuit resistance. Refer to Cylinder Oil Pump Resistance
Test.
