2. Cabling

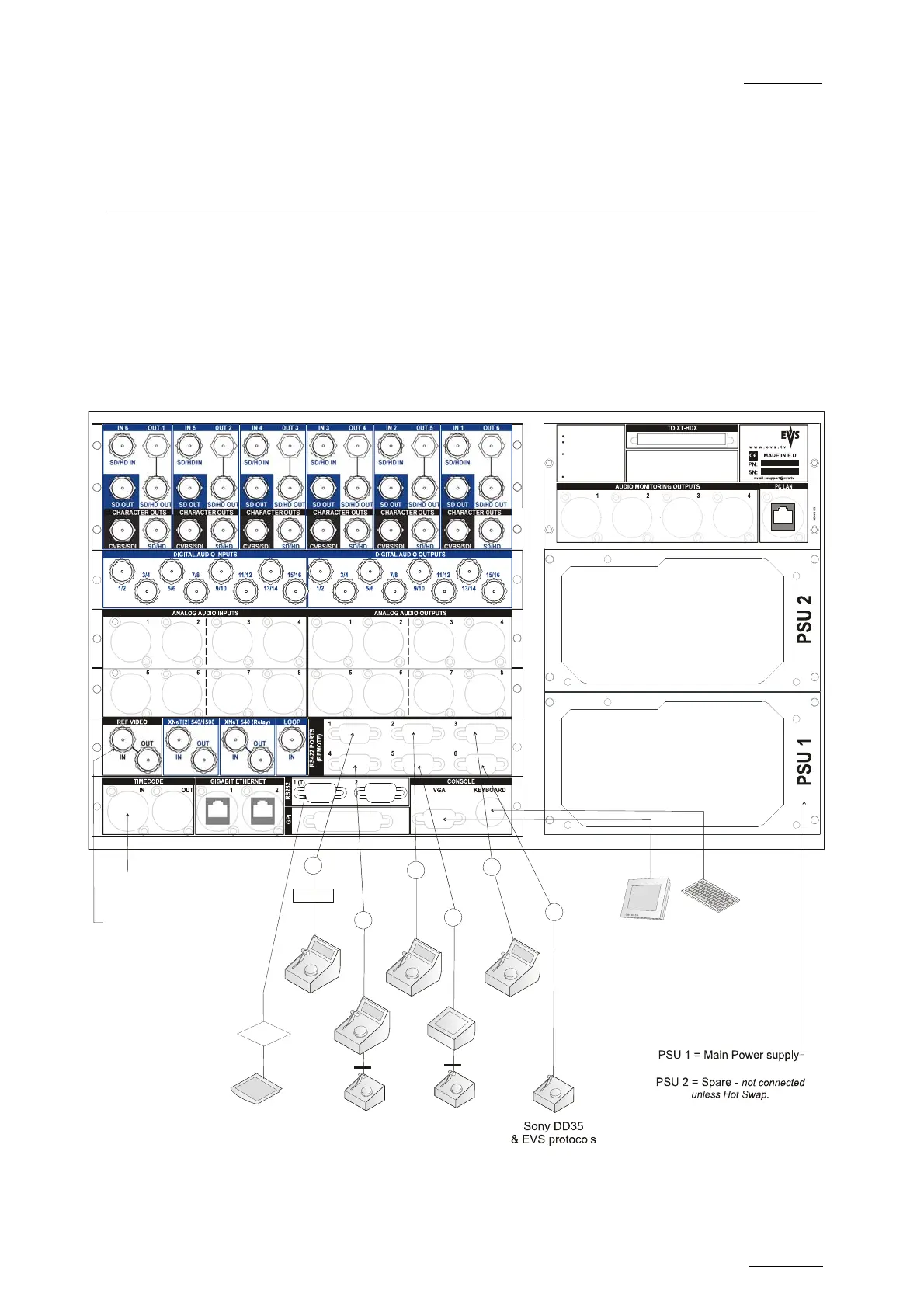

2.1 XT[2] 6U BACK PLANE, MULTICAM
MODE
LTC
Timecode
reference
EVS
Remote
RS 422
1
2
3
Tablet
Analog
Genlock
Reference
4
OR
RS 232
5
OR
6
CAUTION
This apparatus must be earthed. Do not block ventilation
slots. To prevent electric shocks, do not remove the
back panel. Turn power off before connecting peripheral
equipment or circuit boards.
SPECIFICATIONS
Power consumption : 550 W
Line variations limits :
90-130 / 180-260V 47-63Hz
Operating conditions :
Temperature 10-50°C
Humidity 0-90% RH
non condensing
Size : 19’’ / 6RU
