2.2 XT[2] 4U BACK PLANE

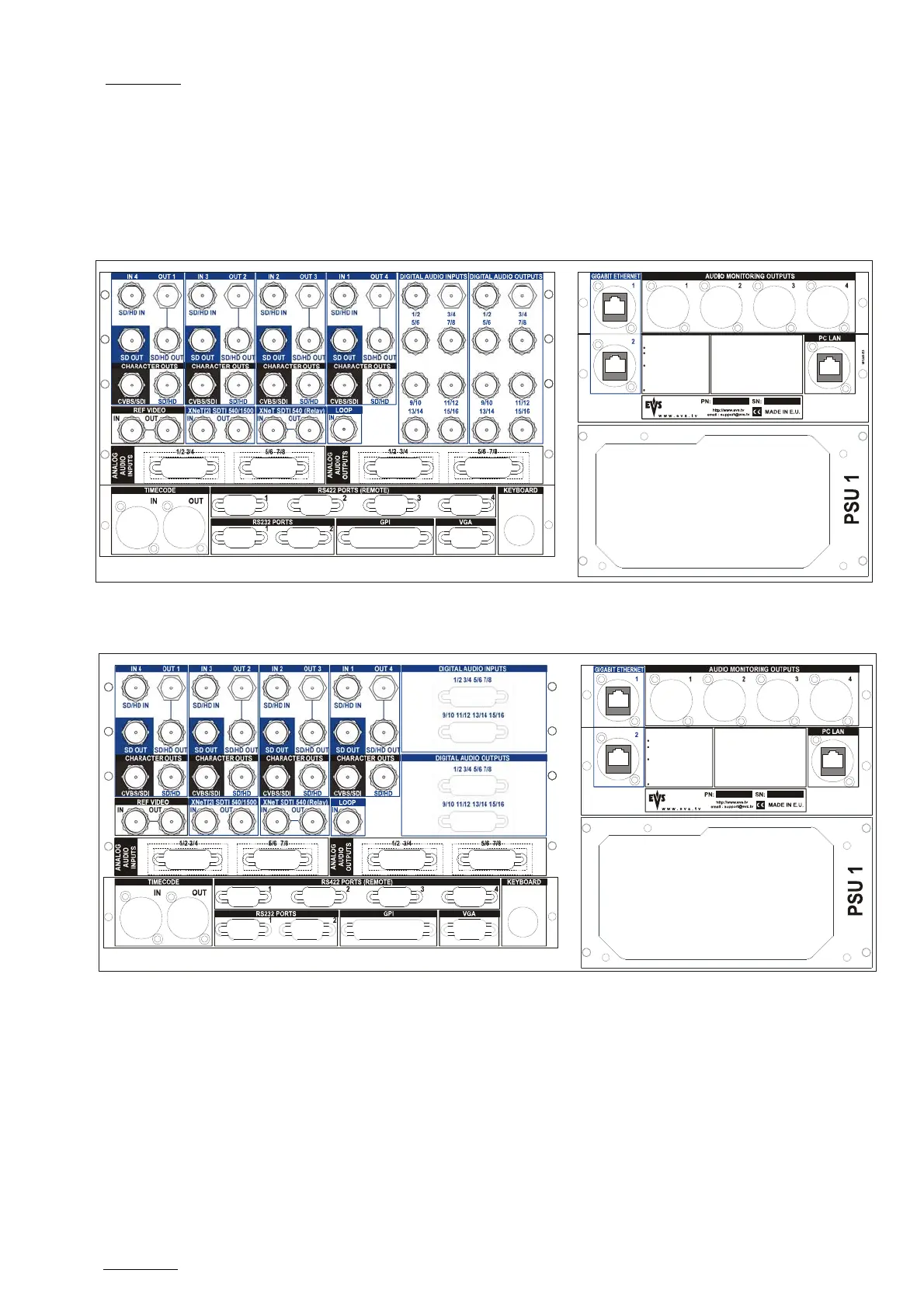

(XT[2]H-4-A3) Shown with Optional AES on BNC Connector Option
SPECIFICATIONS
Power consumption : 550W
Line variations limits :
90-130 / 180 260V 47-63Hz
Operating conditions :
Temperature 10-50°C
Humidity 0-90% RH
non condensing
Size : 19’’ 6RU
-
CAUTION
This apparatus must be earthed.
Do not block ventilation slots
To prevent electric shocks, do not remove
the back panel. Turn power off before
connecting peripheral equipment or
Circuit boards.
(XT[2]H-4-A3B) Shown with Optional AES on Multi-pin Connector Option
CAUTION
This apparatus must be earthed.
Do not block ventilation slots
To prevent electric shocks, do not remove
the back panel. Turn power off before
connecting peripheral equipment or
Circuit boards.
SPECIFICATIONS
Power consumption : 550W
Line variations limits :
90-130 / 180 260V 47-63Hz
Operating conditions :
Temperature 10-50°C
Humidity 0-90% RH
non condensing
Size : 19’’ 6RU
-
