3.4.1.4 GIGABIT CONNECTORS
The two Gigabit connectors of the card are connected to the two Gigabit
ports of the backplane.
The Gigabit connectors must be on a network that supports Jumbo
Frames of (at least) 9014 bytes Ethernet frames. One of the tested switch
belongs to the Cisco 3750 G family, for example the WS-C3750G-24T-S.
For more information, refer to the Software Technical Reference manual
for setting up the IP addresses.

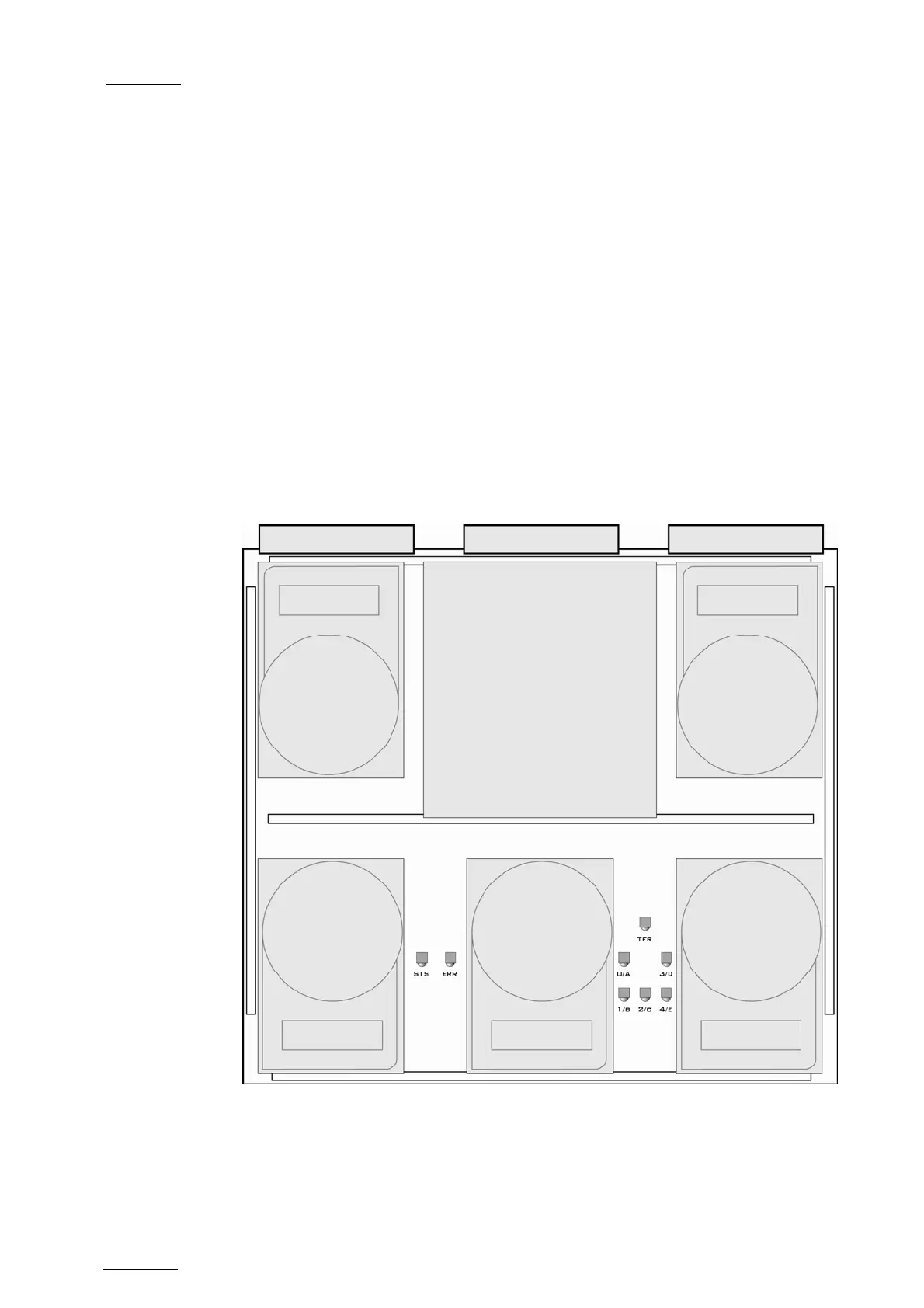

3.4.2 RTCL BOARD ON DISK ARRAY (WITH HCTX)
Disk Arrays on systems with HCTX Boards have a controller on the disk
array board.
