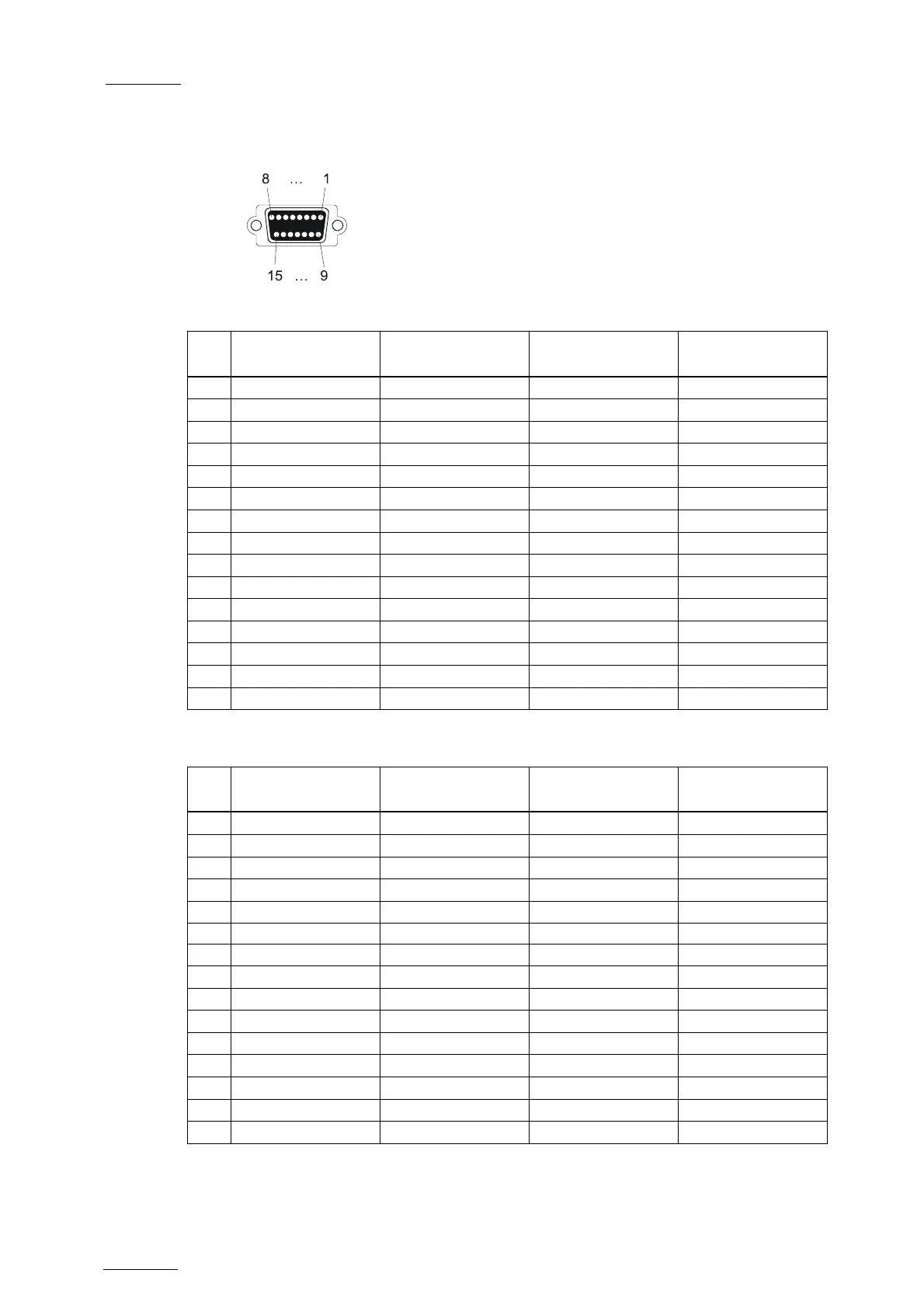

2.7.2 PIN ASSIGNMENT ON SUB-DB15 CONNECTORS
AES DB15 Connectors
Pin
#
Sub-DB15 #1
Inputs 1-8 (mono)
Sub-DB15 #2
Inputs 9-16 (mono)
Sub-DB15 #3
Outputs 1-8 (mono)
Sub-DB15 #4
Outputs 9-16 (mono)
1 GND GND GND GND
2 AES input 1/2 + AES input 9/10 + AES output 1/2 + AES output 9/10 +
3 GND GND GND GND
4 AES input 3/4 + AES input 11/12 + AES output 3/4 + AES output 11/12 +
5 GND GND GND GND
6 AES input 5/6 + AES input 13/14 + AES output 5/6 + AES output 13/14 +
7 GND GND GND GND
8 AES input 7/8 + AES input 15/16 + AES output 7/8 + AES output 15/16 +
9 AES input 1/2 - AES input 9/10 - AES output 1/2 - AES output 9/10 -
10 GND GND GND GND
11 AES input 3/4 - AES input 11/12 - AES output 3/4 - AES output 11/12 -
12 GND GND GND GND
13 AES input 5/6 - AES input 13/14 - AES output 5/6 - AES output 13/14 -
14 GND GND GND GND
15 AES input 7/8 - AES input 15/16 - AES output 7/8 - AES output 15/16 -
Analogue DB15 Connectors
Pin
#
Sub-DB15 #1
Inputs 1-4 (mono)
Sub-DB15 #2
Inputs 5-8 (mono)
Sub-DB15 #3
Outputs 1-4 (mono)
Sub-DB15 #4
Outputs 5-8 (mono)
1 GND GND GND GND
2 Analogue input 1 + Analogue input 5 + Analogue output 1 + Analogue output 5 +
3 GND GND GND GND
4 Analogue input 2 + Analogue input 6 + Analogue output 2 + Analogue output 6 +
5 GND GND GND GND
6 Analogue input 3 + Analogue input 7 + Analogue output 3 + Analogue output 7 +
7 GND GND GND GND
8 Analogue input 4 + Analogue input 8 + Analogue output 4 + Analogue output 8 +
9 Analogue input 1 - Analogue input 5 - Analogue output 1 - Analogue output 5 -
10 GND GND GND GND
11 Analogue input 2 - Analogue input 6 - Analogue output 2 - Analogue output 6 -
12 GND GND GND GND
13 Analogue input 3 - Analogue input 7 - Analogue output 3 - Analogue output 7 -
14 GND GND GND GND
15 Analogue input 4 - Analogue input 8 - Analogue output 4 - Analogue output 8 -
