Note
Only front backplanes labelled BKP7 are compatible with COHX
boards (4 slots for 4U frames, and 7 slots for 6U frames). The
BKP7 backplanes (compatible with COHX boards) have 3 rows of
soldering per slot, while the backplanes compatible with IO-E,
COHD or COHU boards have 2 rows of soldering per slot. Note
that the top slot of BKP7 backplanes must always
be connected
to the HCTX board.

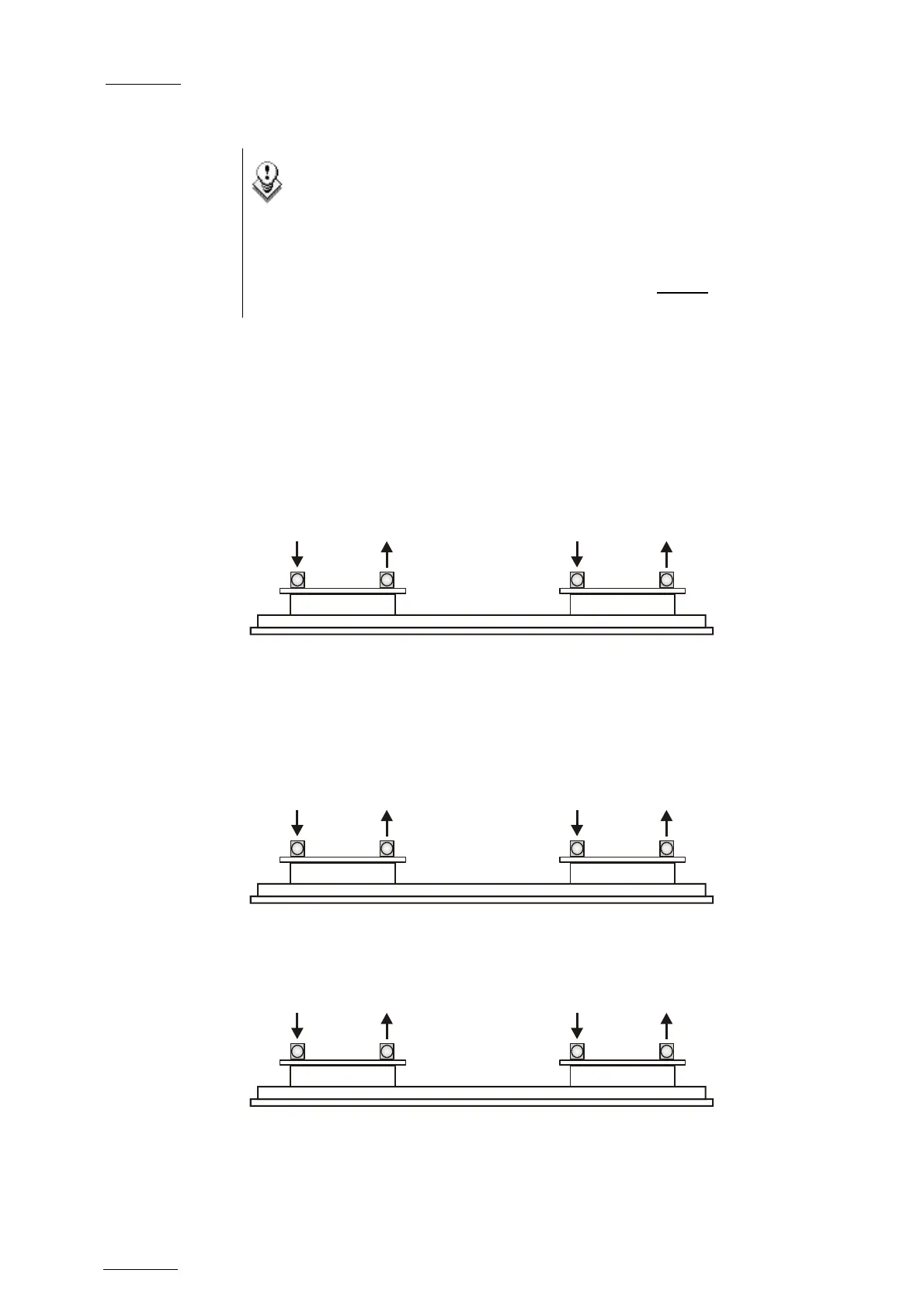

3.2.1.5 CHANNEL ASSIGNMENT
2-
CH XT[2] SERVER
Lower Codec (#2)
CAM B
or
PGM 1
CAM A
or
PGM2/PRV
4-CH XT[2] SERVER
Upper Codec (#4)
CAM B
or
PGM 3
CAM A
or
PGM4
Lower Codec (#2)
CAM D
or
PGM 1
CAM C
or
PGM2
