EVS XT2 - Unpacking; Dimensions

XT Series DISK RECORDER – Version 9 - Hardware Technical ReferenceIssue 5.00
EVS Broadcast Equipment SA – April 2008
2
1.1 UNPACKING
On receipt of the equipment examine pa
damage. If damaged, do not unpack and inf
cking for obvious signs of
orm the carrier immediately.
Check thanks to the included packing list if all the items are present and
yes, report damage or the
missing parts to EVS or their appropriate representative.

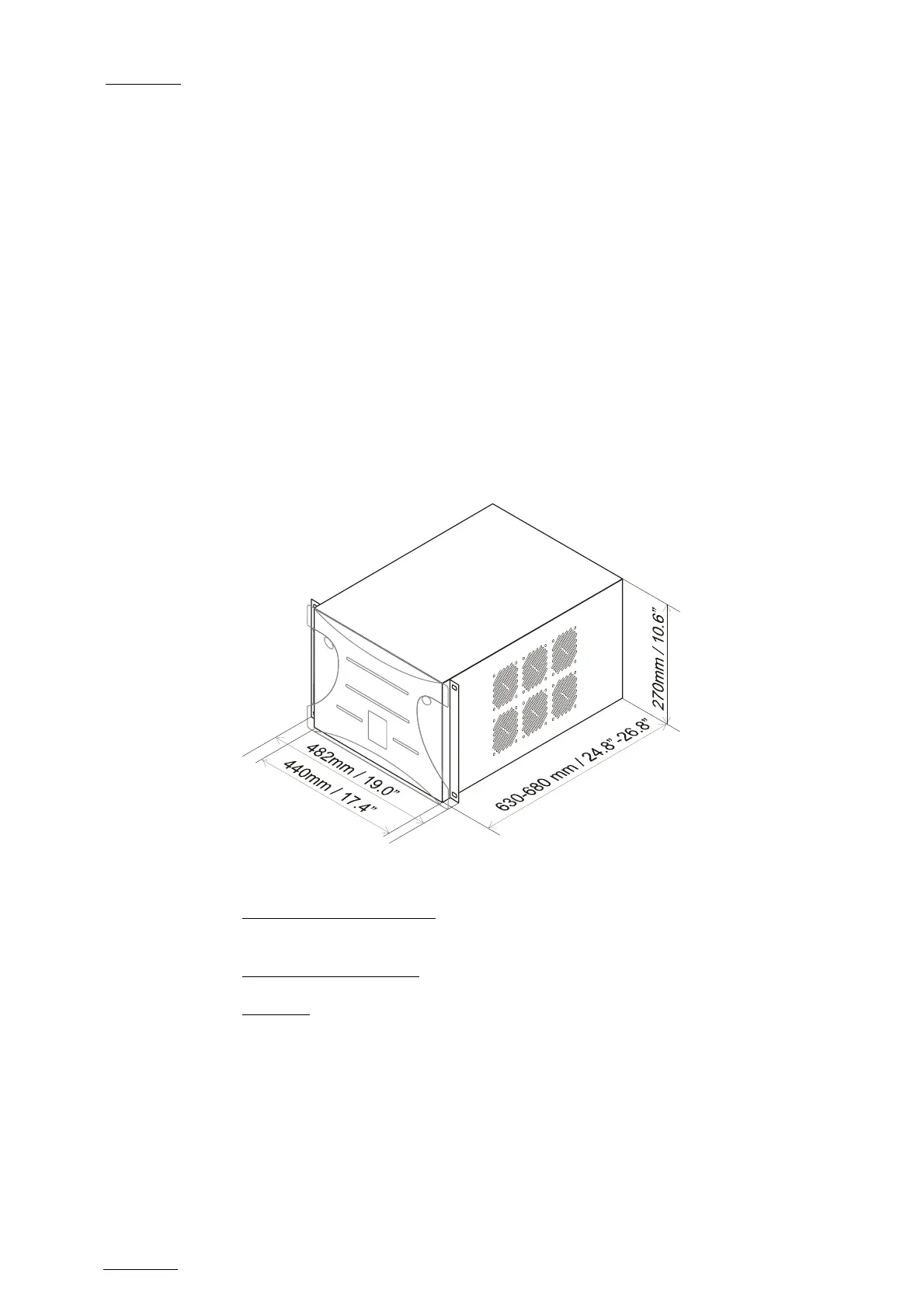

1.2 DIMENSIONS
Video disk recorder Main frame 19 inches
Rack mount 6U – Weight: 32.5 Kg/ 71.5 Lbs.
if they show any mechanical damage. If
Rack mount 4U: Height: 170 mm
Hot swap power supplies
sticks out by 25mm / 1’’ (H: 187mm / 7.2’ by W:
170mm / 6.65’)
Rack mounting stripes:
L: 270 mm / 10.6” by W 21 mm / 0.8”
Handles:
H: 55mm / 2.2” by L: 160 mm / 6.3” by W: 21 mm / 0.8”
