3.4.3 EXTERNAL RAID ARRAY XT-HDX FOR XT[2]
SERVER
The XT-HDX is an external disk storage containing up to 15 SCSI disks. It
is connected to the XT[2] server via a dedicated SCSI cable on the
backplane of the server.
This XT-HDX is only available with XT[2] 6U with hot-swappable power
supply.
Necessary equipment
• XT[2] 6U with XT-HDX connector on the back plane and MT5D_LNK
board
• Multicam version 08.04.25 or later
• XT-HDX external disk storage
Important
An XT[2] server can not
work simultaneously with an internal
RAID array (MT5D) and an external RAID array (XT-HDX). When
an XT[2] server is equipped with the XT-HDX external disk
storage, the MT5D internal RAID is replaced by the MT5D_LNK
board. This replacement has to be done by EVS staff.

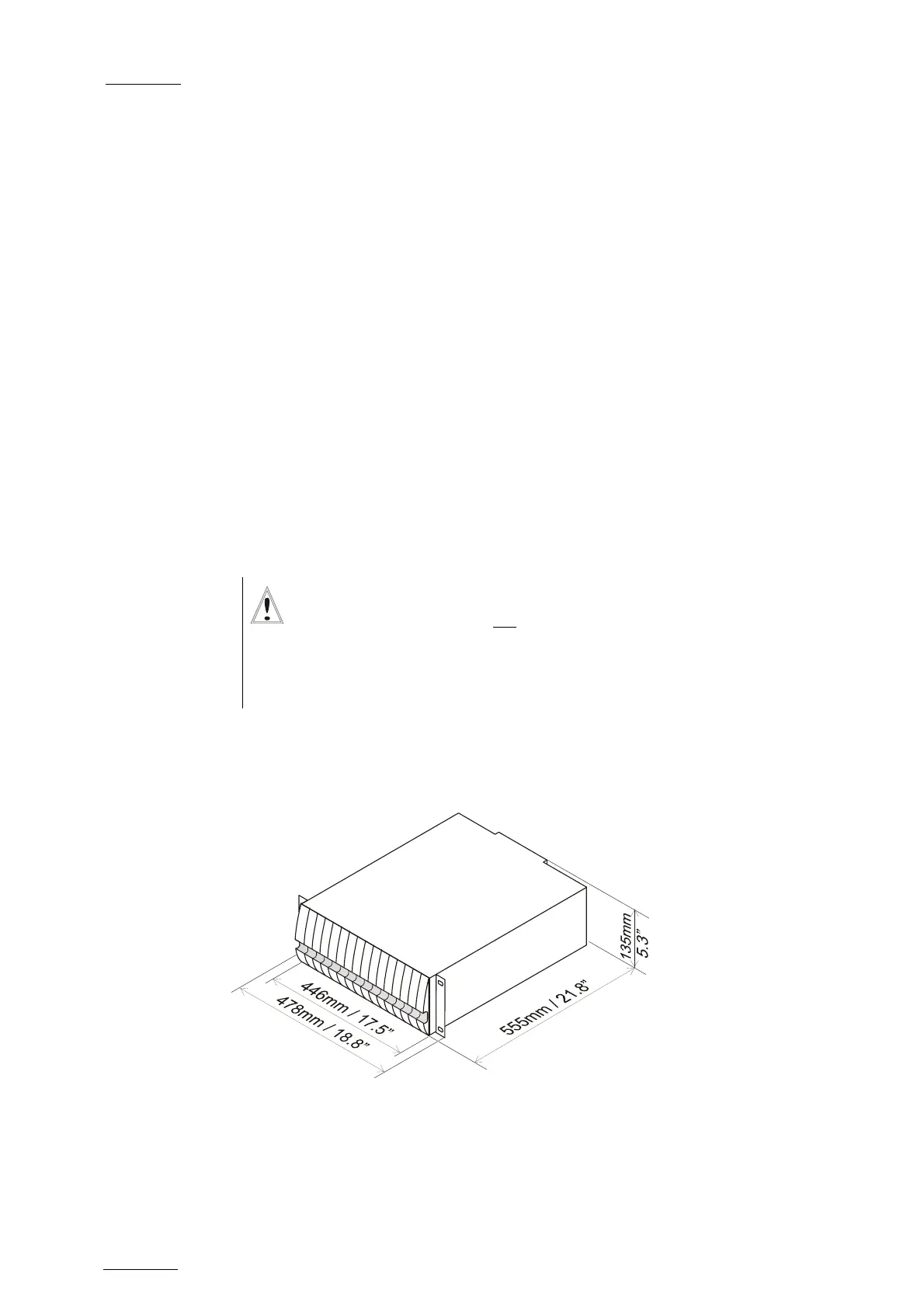

3.4.3.1 XT-HDX DIMENSIONS
