2.6 RS422 CONNECTOR OF THE REMOTE
CONTROL PANEL

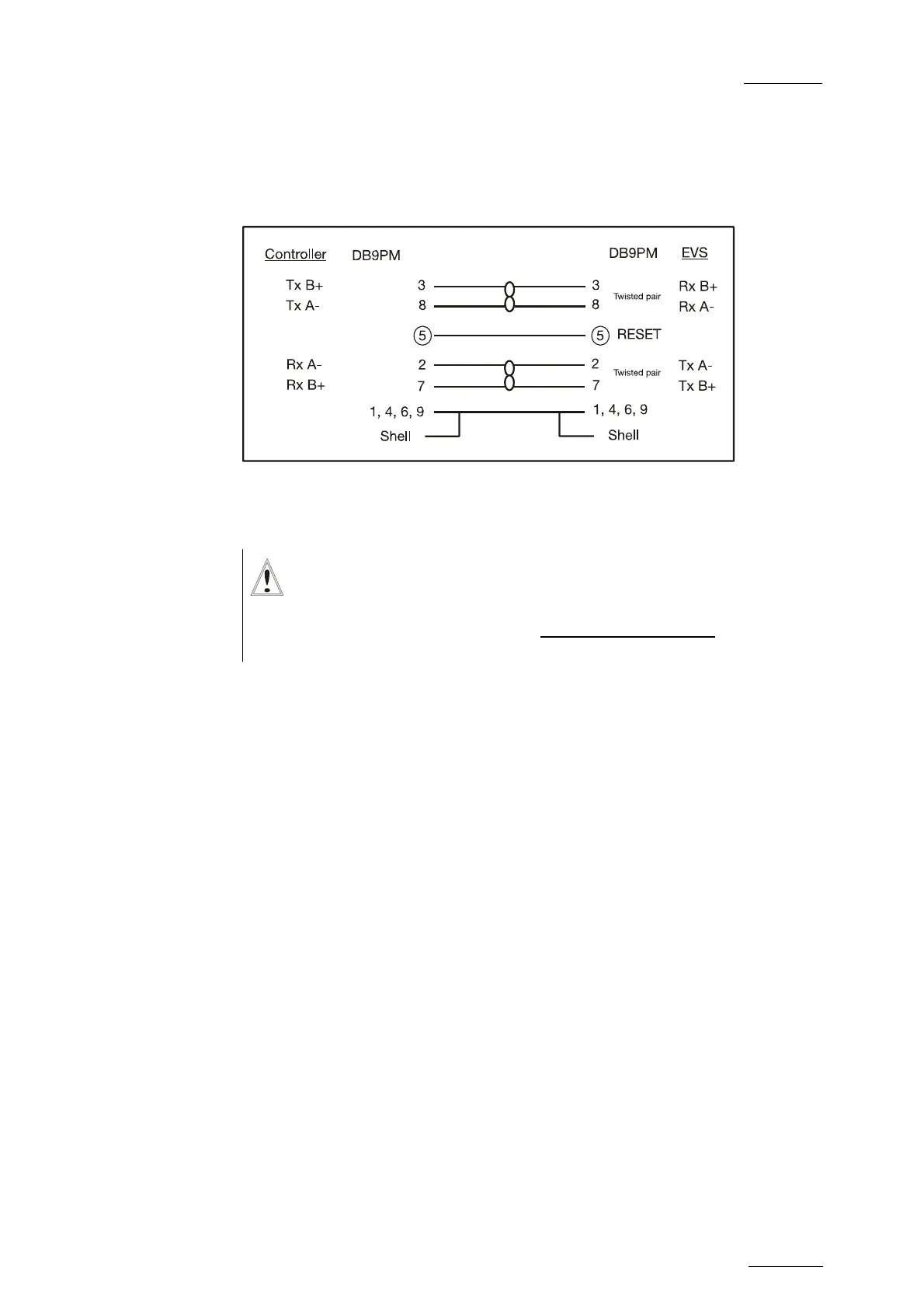

The RS 422 cable of the Remote control panel must be wired PIN TO PIN
following the above diagram. Use shielded cable to avoid electromagnetic
interference on long distances.
Important
The Reset command from the Remote is sent through the Pin n°5
of RS422 connector. This function should be disabled when the
controller on RS422 #1 is not an EVS controller
(refer to the
section ‘MTPC Board’ on page 54 of this manual).
2.7 AUDIO CONFIGURATIONS
2.7.1 CODA FOR XT[2]
Internal Audio Module: Embedded + AES/EBU + Analogue Balanced
• Embedded Audio 24 stereo channels (input or output)
• AES/EBU Audio 8 stereo inputs + 8 stereo outputs (110 Ohm balanced
on SUB-DB15, breakout cable with 4 XLR IN/OUT available optionally
OR 75 Ohm unbalanced on BNC)
• Analogue Balanced audio 4 stereo inputs + 4 stereo outputs (110 Ohm
balanced on SUB-DB15, breakout cable with 4 XLR IN/OUT available
optionally OR XLR)
• Audio monitoring : 4 analogue balanced mono outputs (XLR)
