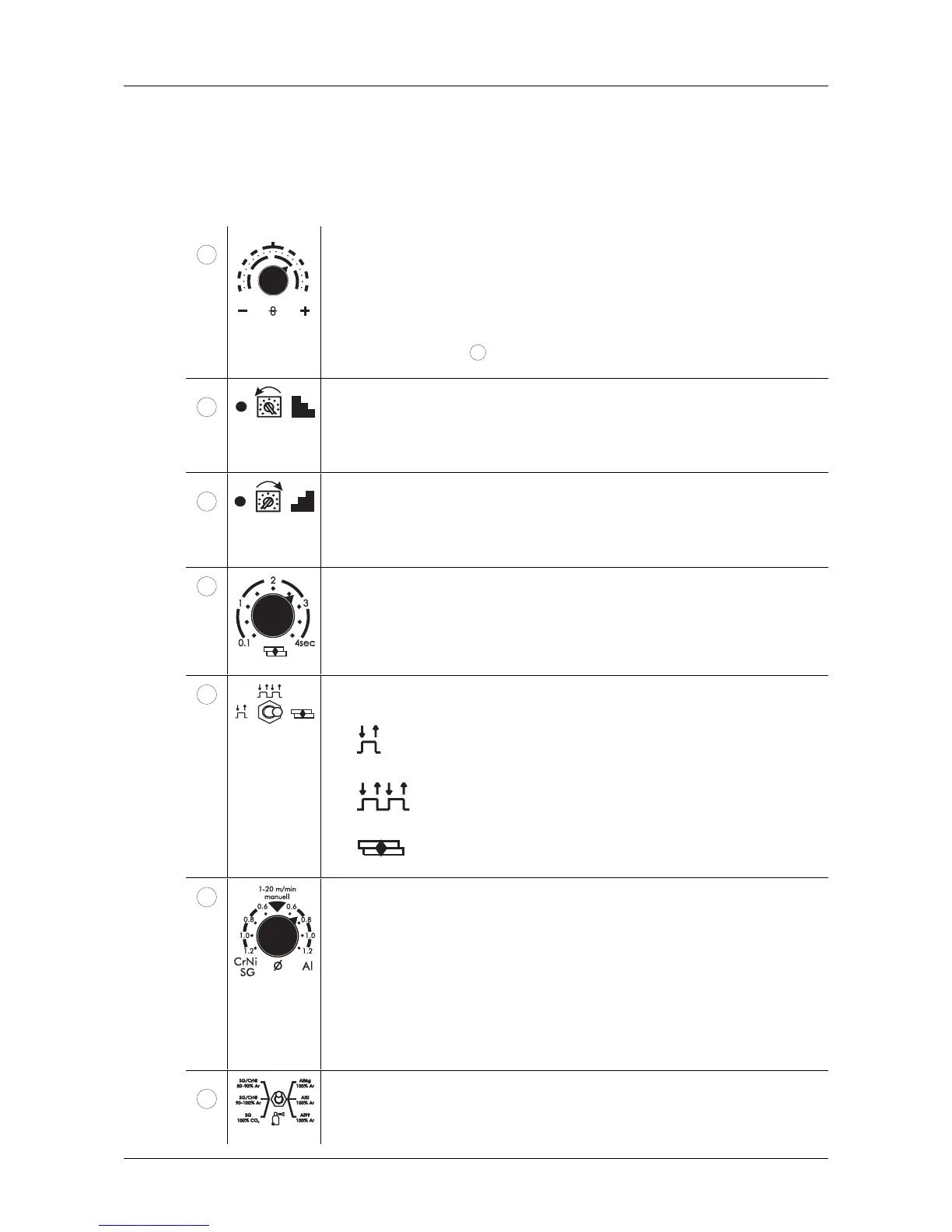

4.3.1 Control "PROGRAM" M201
1
0
m/min
2
4
6
8
-10
2
4
6
8
+10
15
201
5
10
Rotary knob for the stepless setting of:
•
Correction of the wire-feed speed
•
Wire-feed speed 1 - 20 m/min
(Selector switch
6
set to Manual position)
2
Signal - Lamp:
Recommended change of switch setting if welding power selection too high
"Turn Step switch to the left" (or error message see 6.4)
3
Signal - Lamp:
Recommended change of switch setting if welding power selection too low
"Turn Step switch to the right" (or error message see 6.4)
4
Rotary knob for the stepless setting of:
•
Spot welding time 0,1 - 4 Seconds
5
Changeover switch Operating Mode:
•
2- Step Mode,
•
4- Step Mode,
•
Spot Welding.
6
Selection switch for setting:
• Setting "manual": Two knob operation
• Welding wire diameter and type of material for Aluminium welding
• Welding wire diameter and type of material for welding Chrome-Nickel
Steels
7
Changeover switch for selecting type of gas
