EWM SATURN MIG 300 PROGRAM - MIG;MAG- Welding Jobs and Setting of the Working Point; (Without Option M210; Operating Mode Programme, One-Knob Operation)

6 Description of M201 control
6/2

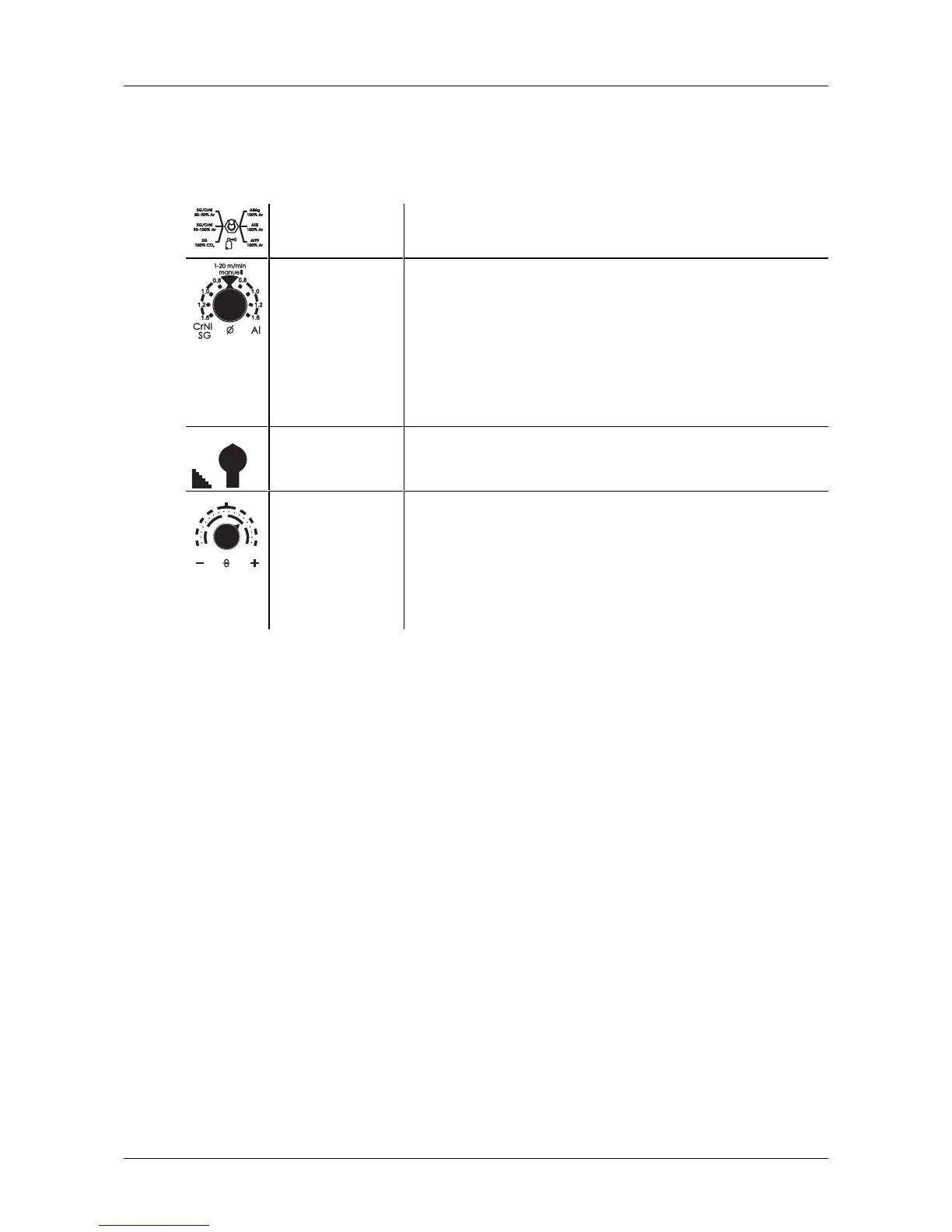

6.1.1 MIG/MAG- welding jobs and setting the working point
(without option M210 / operating mode Programme, one-knob operation)
Selection switch
gas type
Selection switch for the various types of gas
Selection switch
welding wire
diameter / type
of material
Selection switch for setting the:
• Welding wire diameter and material for Aluminium (Al)
• Welding wire diameter and material for high-alloyed
steels (CrNi) or low alloyed steels (SG)
•
Setting
"manual": Two knob operation (no preselected
programme)
1
12
11
10
9
86
5
4
3
2
Step switch
„fine“
For setting the welding power in fine steps
0
m/min
2
4
6
8
-10
2
4
6
8
+10
15
201
5
10
Rotary knob Rotary knob for setting the:
1. Wire feed speed correction (outer scale) in Programme
operating mode (one knob operation)
2. Wire feed speed 1- 20m/min (inner scale) in manual
operating mode (two knob operation)
