EWM SATURN MIG 300 PROGRAM - M100 Control Functions

4 Description of the System components
4/6
4.3.2 Control M100
t
t
0.5
1
1.5
2sec0sec
0sec 2sec
1.5
1
0.5
4
6
10
18
m/min
0
20
8
12
14
16
2
4
3
2
1

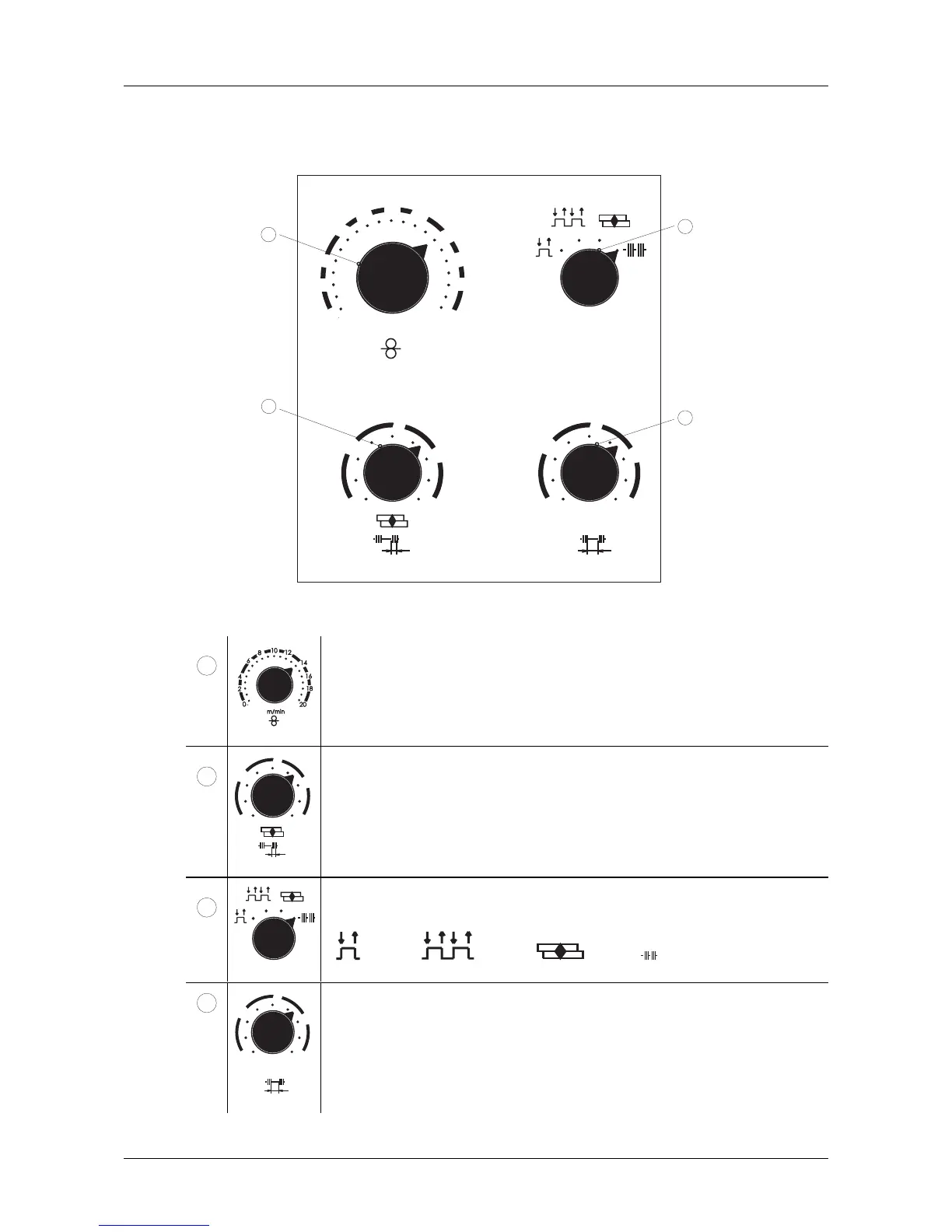

Fig.: 4/4 Operating panel M100
1
Rotary knob "Wire feed speed"
for stepless selection of the wire feed speed (1 - 20m/min)
2
t
0.5
1
1.5
2sec0sec
Rotary knob "Spot and Pause Time"
for stepless selection of the welding times (0 - 2s)
in "SPOT and STITCH " welding modes
3
Selection switch "Operating Mode"
2- Step; 4- Step; Spot or Stitch
4
t
0sec 2sec
1.5
1
0.5
Rotary knob "Pause Time"
for stepless setting of the pause time (0 - 2s)
in "STITCH " welding mode
