5 Steuerungsbeschreibung M100 / M110
5/1
5.1 Description M100 Control

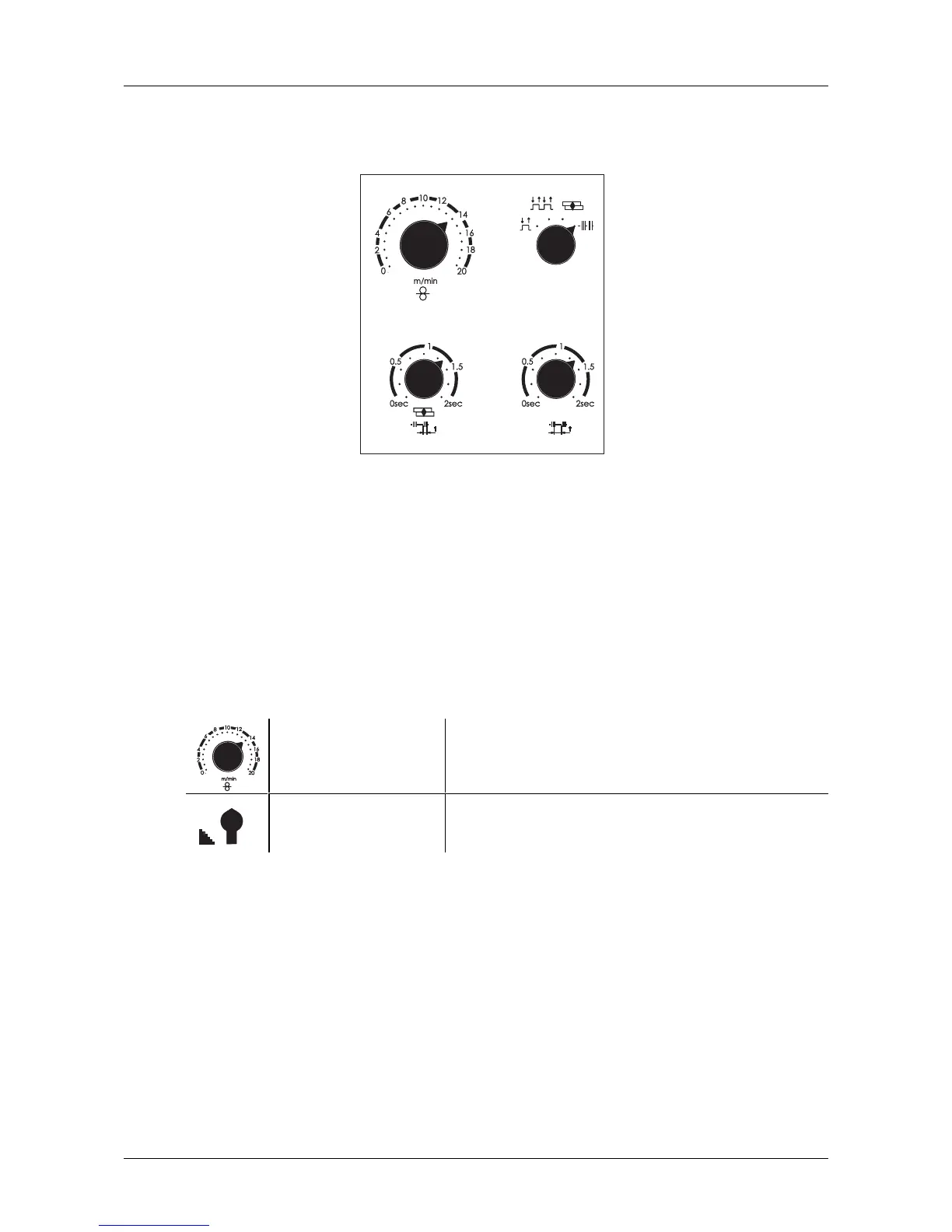

Fig. 5/1: M100 Control
5.1.1 Setting the Working Point
The M100 MIG/MAG control functions on the two-knob operating principle, i.e.:
to determine his working point the operator must only enter the required
Wire feed speed on the control and the
Welding Voltage on the step switches
corresponding to the material and the welding wire diameter.
Selection
Wire-feed Speed
Turn knob to appropriate
Wire-feed speed
1
12
11
10
9
86
5
4
3
2
Step Switch Fine step switch for
Setting welding voltage
