EWM SATURN MIG 300 PROGRAM - (Without Option M210; Operating Mode Manual, Two-Knob Operation); Selection of the Operating Mode 2-Stroke, 4-Stroke, Spot Welding; Selection of the Choke Tapping

6 Description of M201 control
6/3

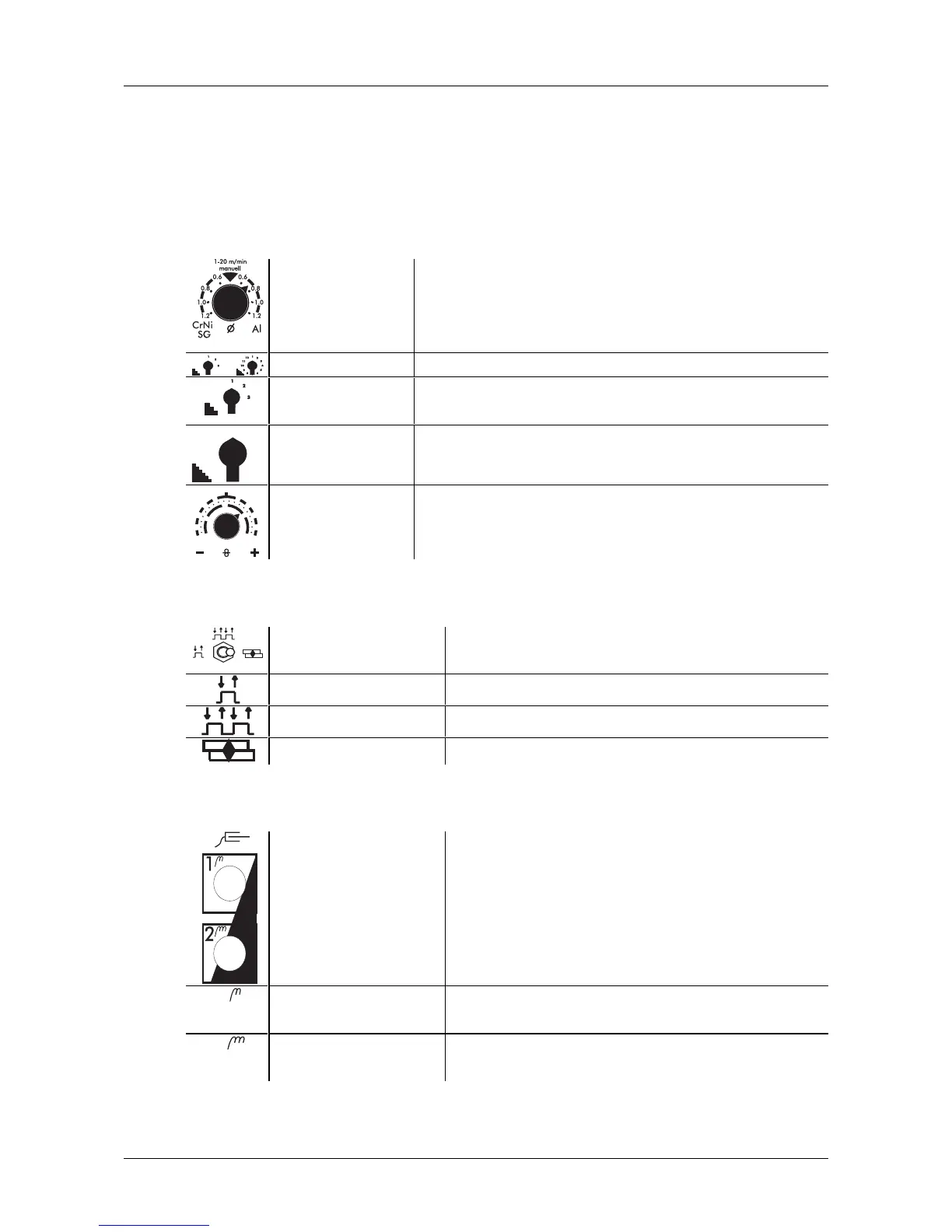

6.1.2 MIG/MAG- welding jobs and setting the working point
(operating mode manual, two knob operation)
Two knob operation as with conventional MIG/MAG welding units is possible with the
M201 control.
Selection switch
welding wire
diameter / type of
material
Switch selection to the "manual" two knob operating mode
setting.
Step Switch Select welding voltage
Step switch
"Coarse "
For setting the welding voltage in coarse steps
1
12
11
10
9
86
5
4
3
2
Step switch
"Fine"
For setting the welding voltage in fine steps
0
m/min
2
4
6
8
-10
2
4
6
8
+10
15
201
5
10
Rotary knob
Wire feed speed
Knob for setting the
Wire feed speed
1- 20 m/min
6.2 Selection of operating mode 2- Stroke, 4- Stroke, Spot welding
Operating mode
selector
2- Stroke setting e.g.: Tack welding, short weld seams
4- Stroke setting e.g.: long weld seams
Spot welding setting e.g.: spot welding
6.3 Selection of the Choke Tapping
Selection
Choke Tapping
2 Choke tappings are available depending upon the
shielding gas used:
1
Choke setting 1 "hard" welding choke connection
e.g. for welding under CO
2
2
Choke setting 2 " soft" welding choke connection
e.g. for welding under Mixed gases and Argon
