Configuration Tab
System Settings Page
The XTP II CrossPoint switcher downloads the System Settings page (see figure 60)
when you click the Configuration tab. The screen consists of fields in which you can
view and edit IP administration and system settings. You can access the Email Settings
and Passwords pages by clicking the appropriate link (see Ethernet Link on page 154
for basic information about IP addresses and subnetting).

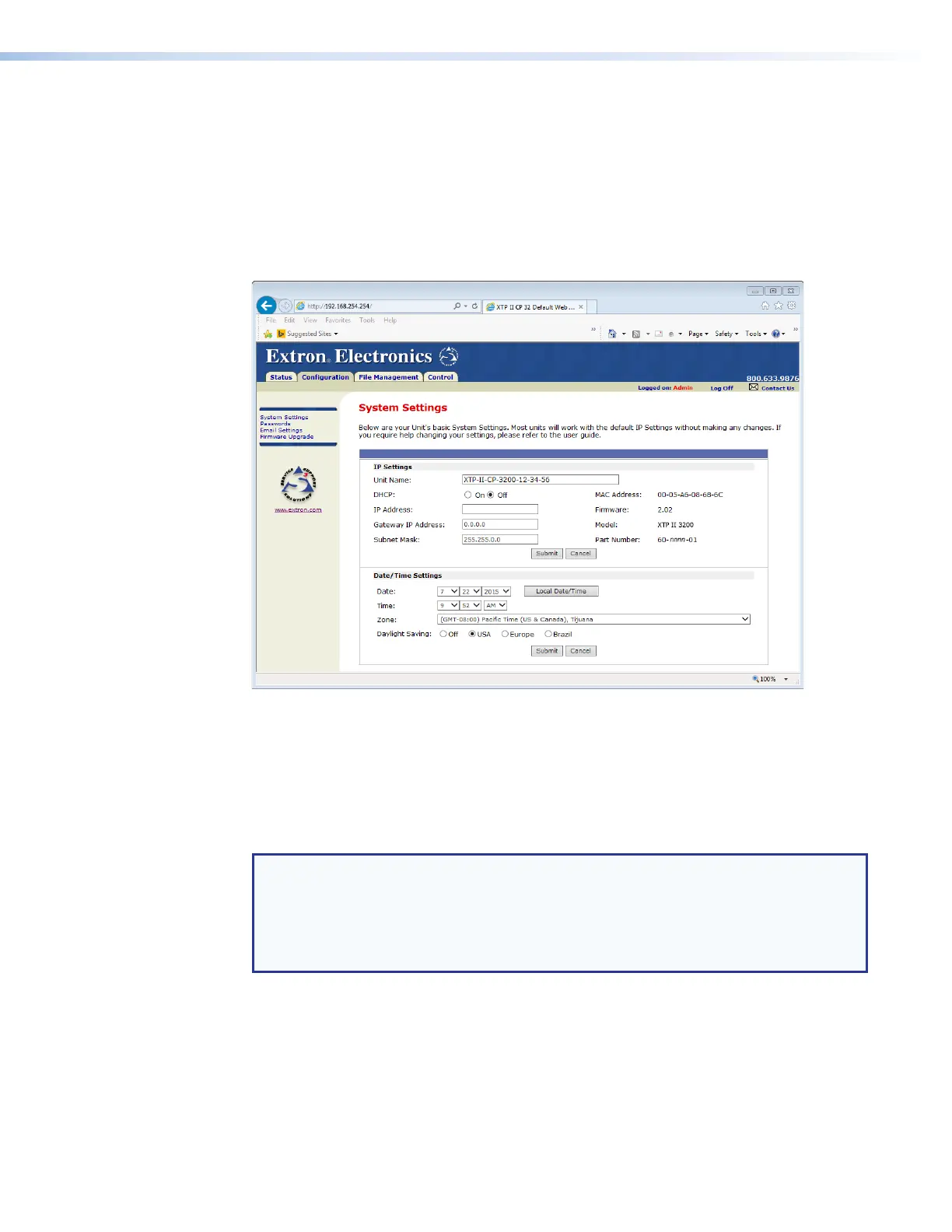

Figure 60. System Settings Page
On password-protected connections, there are two levels of protection: administrator and
user. Administrators have full access to all switching capabilities and editing functions. Users
can create ties, create and recall presets, set audio mutes, and view all settings with the
exception of passwords.
IP Settings panel
NOTE: Editing variables in the IP Settings panel can immediately disconnect
the user from the switcher. Extron recommends editing these settings using SIS
commands (see SIS Command and Response Table for IP- and Remote
Port-Specific Commands, starting on page 117) and protecting the Ethernet
access to this screen by assigning an administrator password to qualified and
knowledgeable personnel only.
The IP Settings panel provides a location for viewing and editing settings unique to the
Ethernet interface. After editing any of the settings on this page, click the Submit button at
the bottom of the page to save the changes.
XTP II CrossPoint 1600, 3200, and 6400 Switchers • HTML Operation
124
