Extron electronics XTP II CrossPoint Series User Manual

Global Presets Page
You can save and recall global presets from the Global Presets page (see figure 74).
Access the Global Presets page by clicking the Global Presets link on the left
of the Set and View Ties, Input Adjustments, Output Adjustments, EDID
Configuration, or XTP Power page.

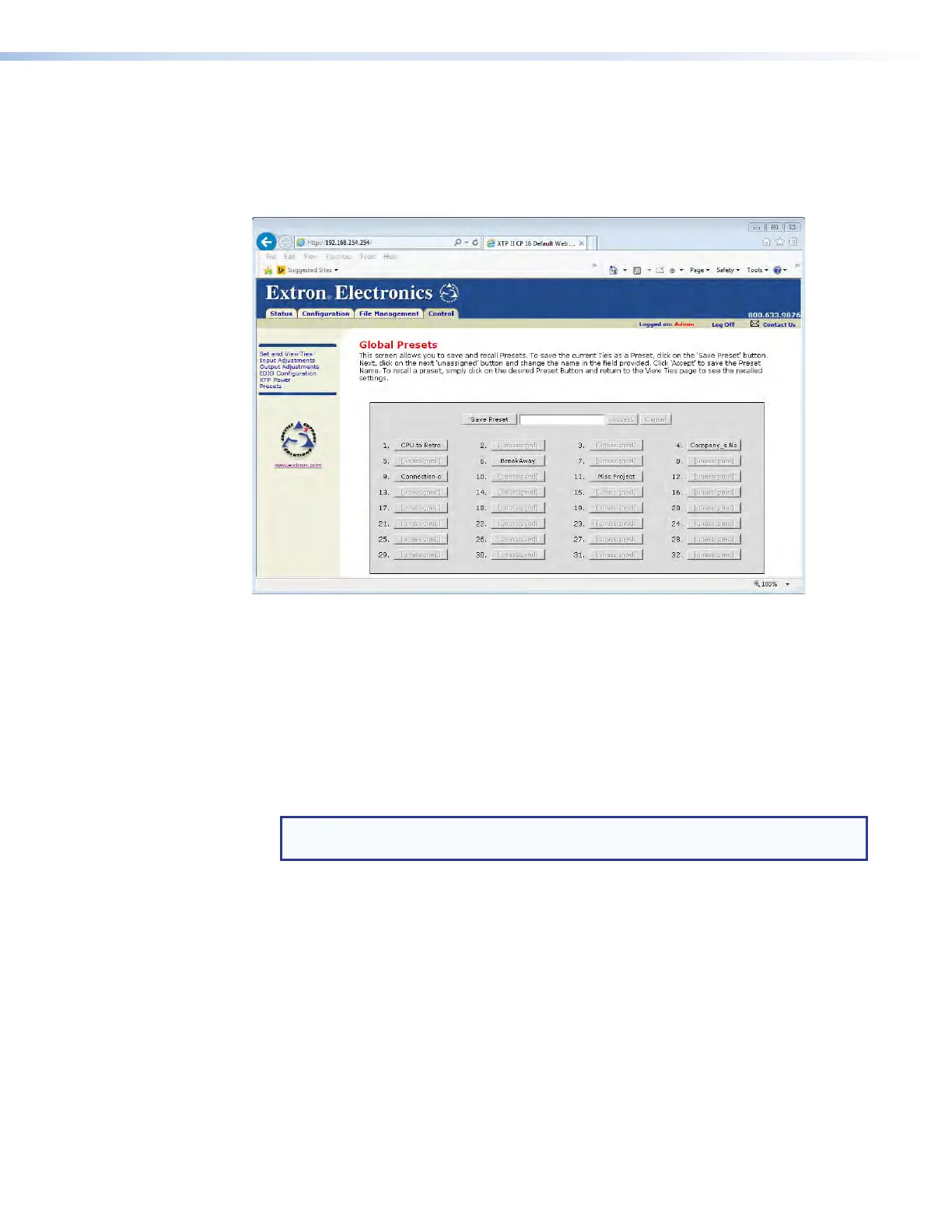

Figure 74. Global Presets Page
Saving a preset
Save the current configuration (configuration 0) as a preset as follows:
1. Click the Save Preset button.
2. Select the desired preset by clicking on one of the presets listed. To create a new
preset, click one of the [unassigned] buttons. Overwrite an existing preset by clicking
an already existing preset.
3. If desired, type over the current name in the box adjacent to the Save Preset button.
NOTE: The HTML language reserves certain characters for specific functions (see
Special Characters on page 118.
If you do not rename an unassigned button, the XTP II CrossPoint switcher names the
preset as Preset <next available number>.
If you do not rename an existing preset when it is overwritten, the XTP II CrossPoint
switcher retains the same name.
4. Click the
Accept button.
Recalling a preset
To recall a global preset as the current configuration, click the button associated with the
desired preset.
XTP II CrossPoint 1600, 3200, and 6400 Switchers • HTML Operation 142
