Extron electronics XTP II CrossPoint Series User Manual

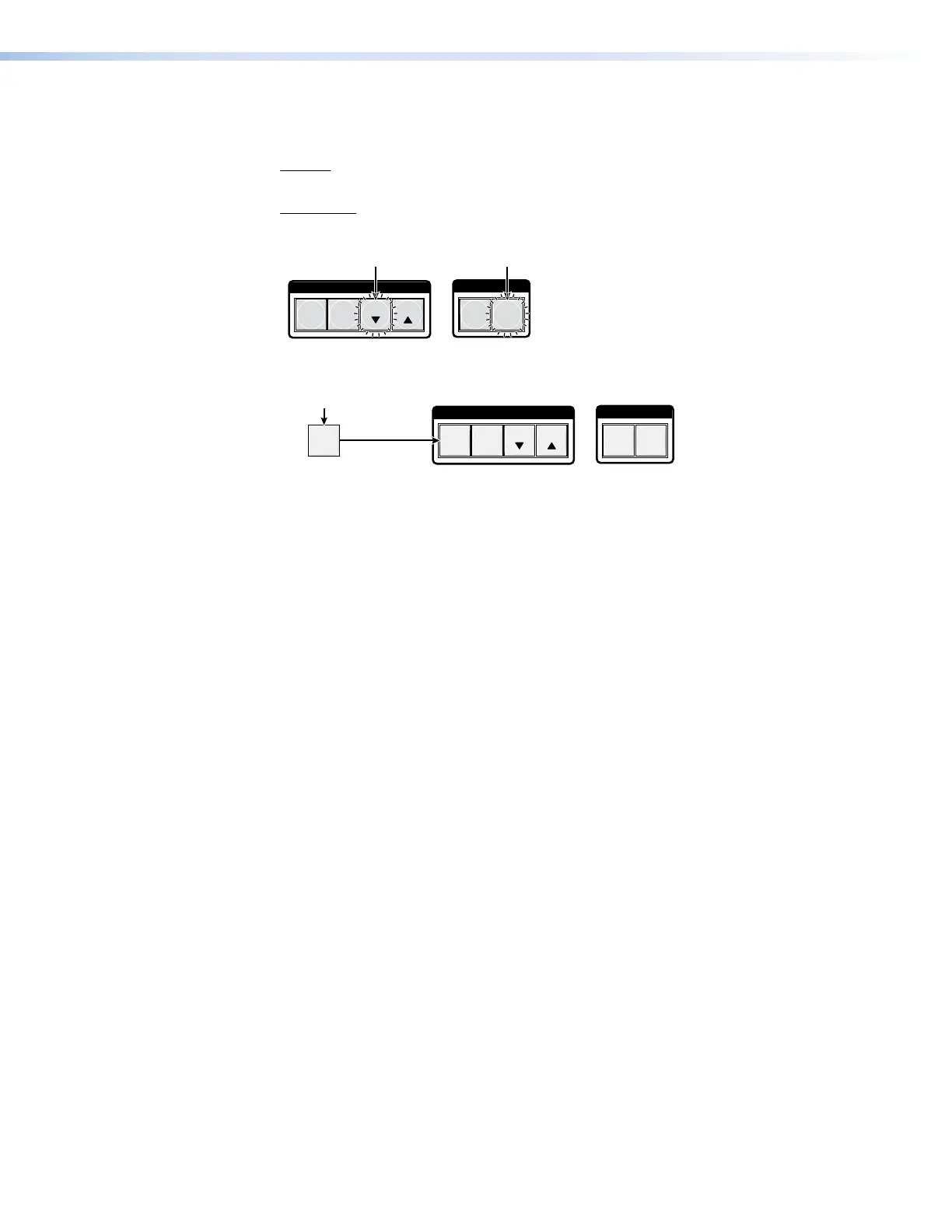

3. Change a value: Press and release the button that relates to the desired value.
C O N T R O L
PRESET ENTER
I / O
VIDEO AUDIO
ESC VIEW
Press and release the button(s) to configure the port as
follows:
Baud rate:
Enter — 9600 Preset — 19200
View — 38400 Esc — 115200
Serial protocol:
Video — RS-232 Audio — RS-422/RS-485
The selected buttons blink and the others remain lit.
In this example, the port is set to RS-422 at 38400 baud.
4. Exit the Serial Port Configuration mode: Press and release an output button.
C O N T R O L
PRESET ENTER
I / O
VIDEO AUDIO
ESCVIEW
5
All Control and I/O buttons return
to unlit or background illumination.
Press and release
an output button.
Rear Panel Operations
The rear panel has a Reset button that initiates four levels of resets (numbered 1, 3, 4, and
5 for the sake of comparison with an Extron IPL product). The Reset button is recessed, so
use a small screwdriver, a pointed stylus, or a ballpoint pen.
See table 6, on the next page, for a summary of the modes.
XTP II CrossPoint 1600, 3200, and 6400 Switchers • Operation 65
