Outnn•Volxx
]
The switcher initiates the Vol message when a front panel output audio volume change has
occurred. nn is the output number and xx is the volume level.
Vmtnn*x
]
The switcher initiates the Vmt message when an output video mute is toggled on or off from
the front panel. nn is the output number and x is the mute status: 1 = on, 0 = off.
Amtnn*x
]
The switcher initiates the Amt message when an output audio mute is toggled on or off from
the front panel. nn is the output number and x is the mute status: 1 = on, 0 = off.
Exen
]
The switcher initiates the Exe message when the front panel security lockout (Executive
mode) is switched from the front panel. “n” is the Executive mode: 0, 1, or 2.
Switcher Error Responses
When the switcher receives an SIS command and determines that it is valid, it performs the
command and sends a response to the host device. If the switcher is unable to perform
the command because the command is invalid or contains invalid parameters, the switcher
returns an error response to the host. The error response codes are:
E01 — Invalid input channel number (out of range)
E10 — Invalid command
E11 — Invalid preset number (out of range)
E12 — Invalid output number (out of range)
E13 — Invalid value (out of range)
E14 — Invalid command for this configuration
E17 — Timeout (caused only by direct write of global presets)
E22 — Busy
E24 — Privileges violation (Users have access to all view and read commands [other than
the administrator password], and can create ties, presets, and audio mutes
E25 — Device not present
E26 — Maximum number of connections exceeded
E27 — Invalid event number
E28 — Bad filename / file not found
Using the Command and Response Tables
The command and response tables begin on page 86. Symbols used in the tables
represent variables in the command and response fields. Command and response examples
are shown throughout the tables. With the exception of the audio input gain and attenuation
commands, the SIS commands are not case sensitive. The ASCII to HEX conversion table
below is for use with the command and response table.

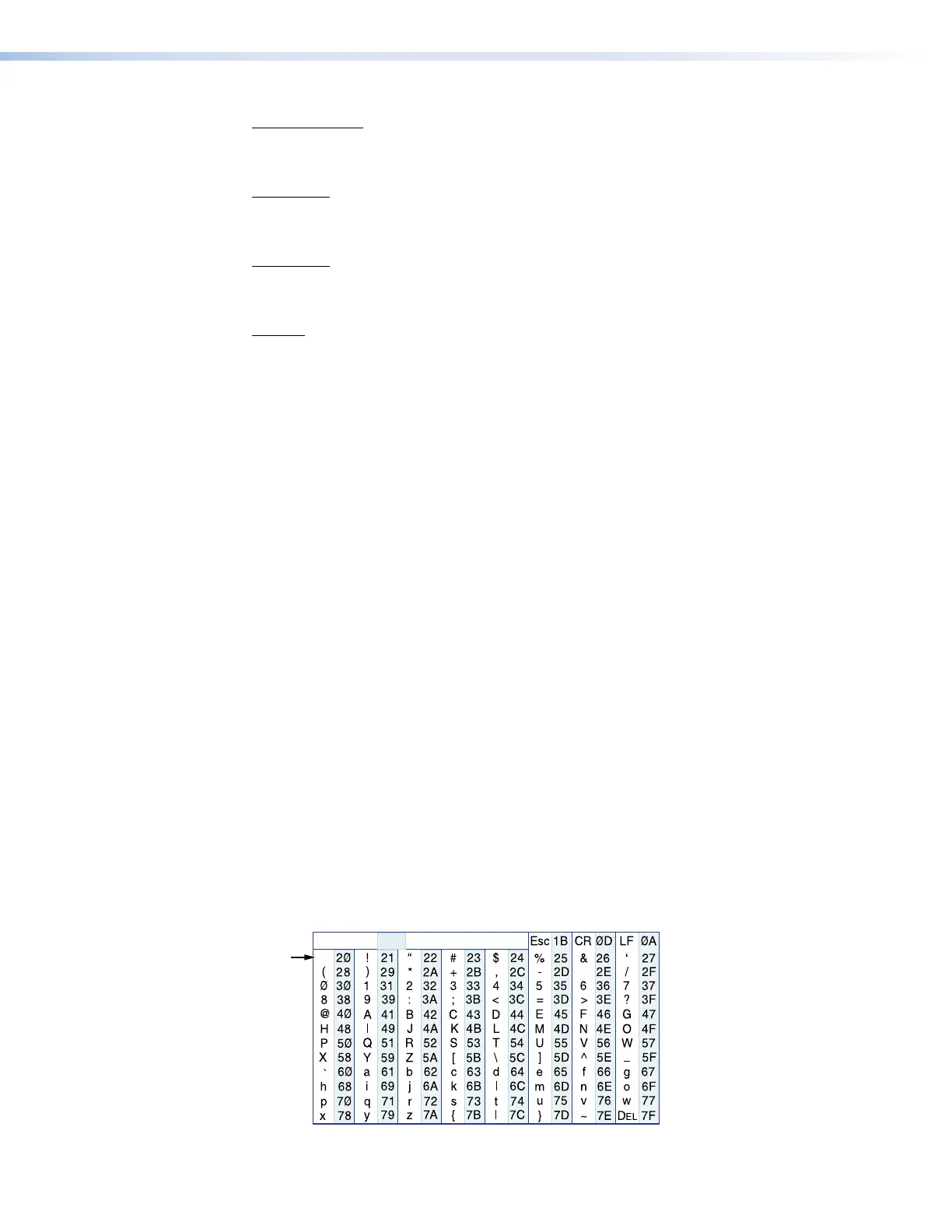

ASCII to Hex Conversion Table
•
Space
XTP II CrossPoint 1600, 3200, and 6400 Switchers • Programming Guide 80
