14. Connect the terminal lugs on the replacement cable to the terminal block inside the
switcher power distribution box (see figure 82).
NEUTRAL
LINE
External Wiring
Ring Terminal
Stud Size: #10 / M5
Wire Range: 12 - 10 AWG / 4.1 - 6.0 mm2
Chassis Ground
2
LINE

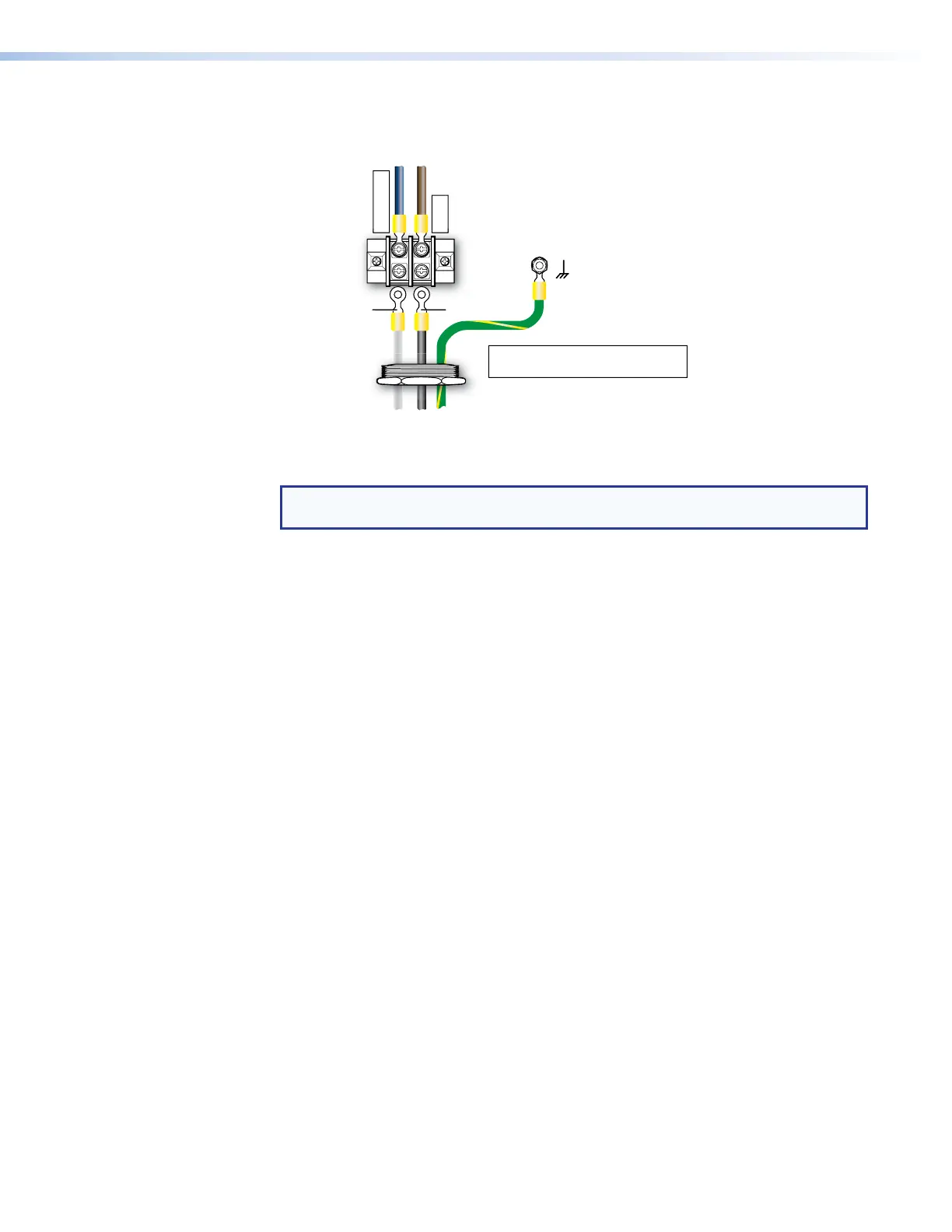

Figure 82. Power Connection and Cable and Ring Specifications
NOTE: Figure 82 also specifies the wire gauge and ring terminal and ground stud
sizes.
15. Replace the power distribution box cover and secure it in place with the screw removed
in step 6.
16. Replace the power distribution box in the switcher and secure it in place with the two
screws removed in step 5.
17. Fasten the chassis ground strap to the ground stud with the nut removed in step 4.
18. Orient the fan assembly so that the fans are on the underside and the board power
connector is to the left. Align the board edges with the board guides in the cabinet and
slide the fan assembly into place.
19. Replace the lower panel and secure it in place with the 15 screws removed in step 2.
Removing and Installing Button Labels
Making Labels Using the Button-Label Generator Program
The Button Label Generator creates labels that you can place in the translucent covers of
the input and output selection buttons. You can create labels with names, alphanumeric
characters, or even color bitmaps for easy and intuitive input and output selection (see
Installing Labels in the Buttons on page 152 for the procedure for removing and
replacing the translucent covers).
Installing the Button Label Generator software
The Extron Button Label Generator is available on the Extron Website, www.extron.com,
under the Download tab. Click the Software link (see figure 83 on the next page), and
download and install the program on your PC.
XTP II CrossPoint 1600, 3200, and 6400 Switchers • Maintenance and Modifications 150
