EDID Configuration Page
The EDID Configuration page (see figure 72) allows you to select the EDID for each
installed input and save the output 1 EDID to one of the user locations. Access the page
by clicking the EDID Configuration link on the left of the Set and View Ties, Input
Adjustments, Output Adjustments, XTP Power, or Global Presets page.
The page displays the EDID drop boxes for inputs on installed boards only.

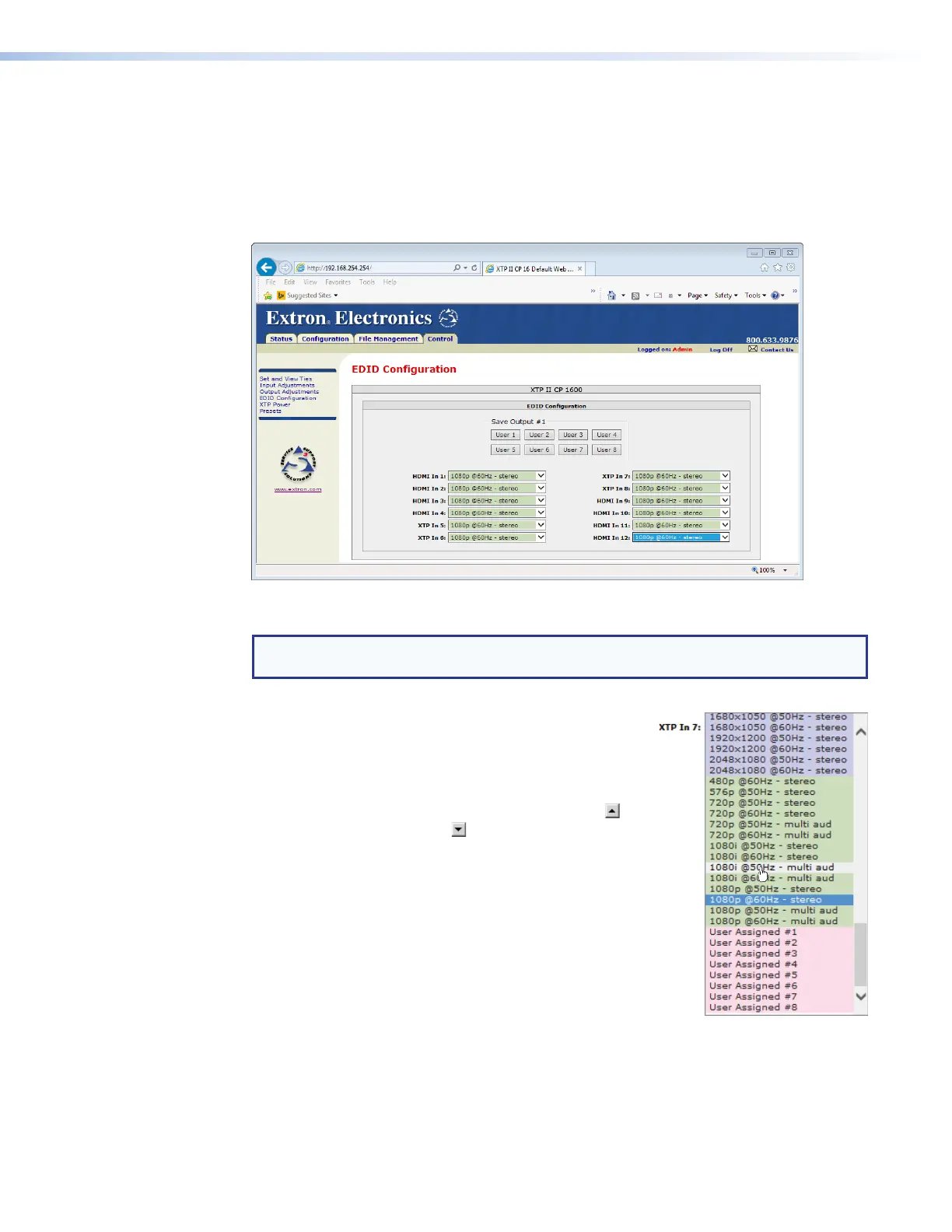

Figure 72. EDID Configuration Page
NOTE: The page displays the EDID drop boxes for inputs and outputs on installed
boards only.
Changing the EDID setting
Select the EDID for an input as follows:
1. Click the drop-down list for the desired input. A drop-
down list appears.
2. Click and drag the slider or click on the scroll up
button or the scroll down button until the desired
value is visible.
3. Click the desired value.
XTP II CrossPoint 1600, 3200, and 6400 Switchers • HTML Operation
