Using Presets
The current configuration (configuration 0) can be saved as a preset in any one of 32 preset
memory addresses. All 32 presets are assigned to the input buttons and (where necessary)
output buttons and are available to be either saved or retrieved from the front panel. All 32
presets can be selected from the front panel to be either saved or retrieved. When a preset
is retrieved from memory, it becomes the current configuration.
NOTES:
• Only the audio and video ties are stored and recalled; audio gain settings are not
saved, and they do not change when a preset is recalled.
• Presets cannot be viewed from the front panel unless they are recalled as the
current configuration.
• The current configuration and all presets are stored in non-volatile memory. When
power is removed and restored, the current configuration is still active and all
presets are retained.
• When a preset is recalled, it replaces the current configuration, which is lost
unless it is also stored as a preset. The recalled preset overwrites all of the current
configuration ties in favor of the preset configuration ties.
• All models have 32 presets; on the XTP II CrossPoint 1600, preset numbers 17
through 32 are available using the output buttons. Figure 37 shows the presets
associated with the input and output buttons on the XTP II CrossPoint Matrix 1600.
Input
buttons
Output
buttons
Preset
1
Preset
6
Preset
7
Preset
10
Preset
15
Preset
16
Preset
11
Preset
3
Preset
8
Preset
9
Preset
4
Preset
5
Preset
13
Preset
14
Preset
12
Preset
2
Preset
17
Preset
22
Preset
23
Preset
26
Preset
31
Preset
32
Preset
27
Preset
19
Preset
24
Preset
25
Preset
20
Preset
21
Preset
29
Preset
30
Preset
28
Preset
18
INPUTS
1
2
3 4
5
6
7
8
9
10
11
12
14
15
16
13
1
2
3
4
5
6
7
8
9
10
11
12
14
15
16
13
OUTPUTS

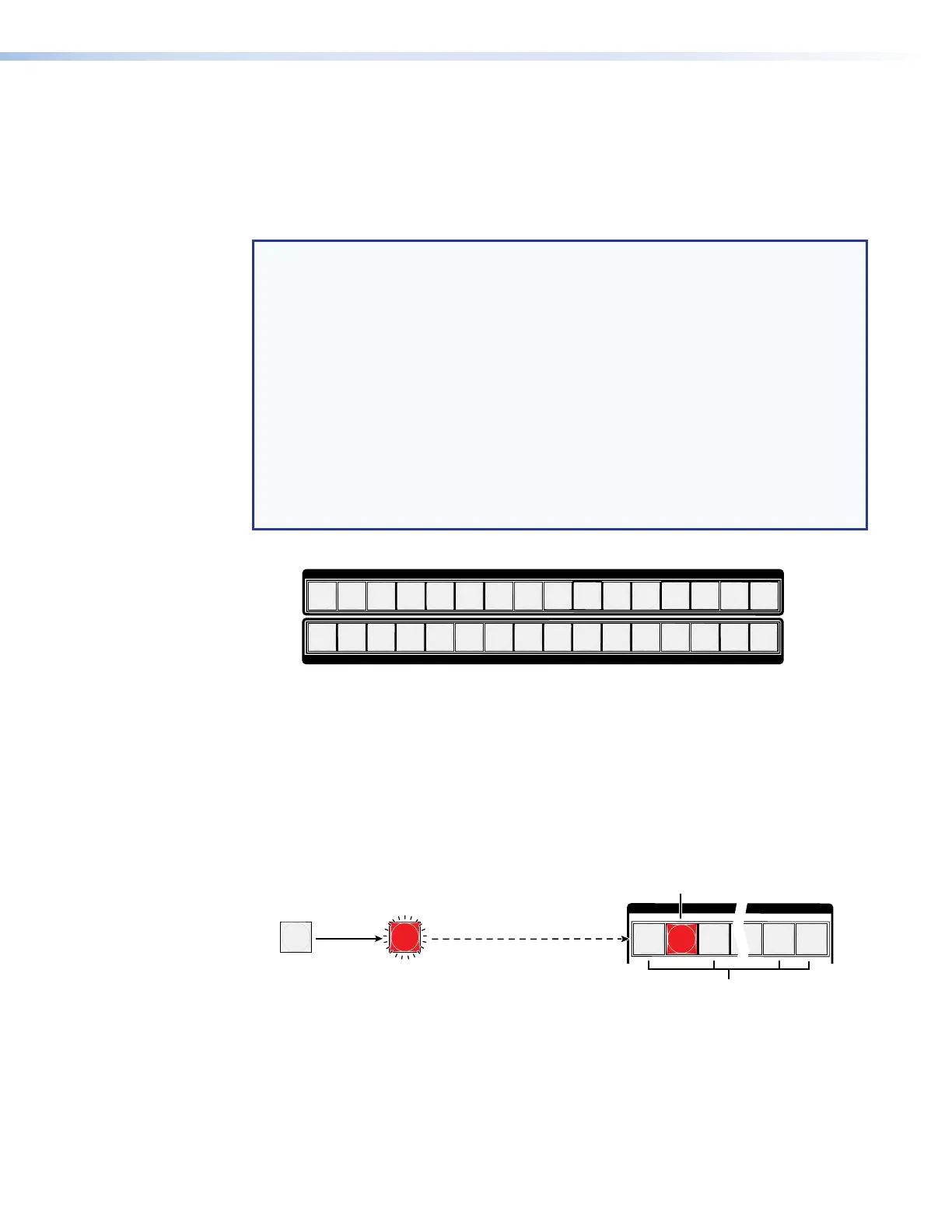

Figure 37. XTP II CrossPoint 1600 Preset Locations
Example 5: Saving a preset
In the following example, the current configuration is saved as a preset. The example shows
the front panel indications that result from your actions.
1. Clear all selections: Press and release the Esc button.
2. Select Save Preset mode: Press and hold the Preset button for approximately
2 seconds until it blinks.
PRESET PRESET
1
2
3
14
15
16
Press and hold the Preset button until it blinks.
2 seconds
All input buttons with assigned
presets light red.
If you then save the configuration
to a lit preset number, the
configuration data at that preset
location will be overwritten.
Preset Assigned
No Preset Assigned
XTP II CrossPoint 1600, 3200, and 6400 Switchers • Operation 47
