Performing Soft System Resets (Resets 3, 4, and 5)
Perform a soft reset of the switcher as follows:
1. Use a small screwdriver to press and hold the rear panel Reset button until the Reset
LED and the front panel Video and Audio buttons blink the number of times for the
desired reset: once (events reset), twice (system reset), or three times (absolute reset)
(see figure 52).
I / O
VIDEO AUDIO
I / O
VIDEO AUDIO
I / O
VIDEO AUDIO
RESETRESET RESET
RESETRESET RESET
RESETRESET RESET
Release, then immediately
press and release again.
IP Settings
Reset
6 seconds
Absolute Reset
9 seconds
Press and hold
the Reset button.
Press and hold
the Reset button.
Press and hold
the Reset button.
3 seconds
Events Reset
(Mode 4)
(Mode 5)
(Mode 3)
Front panel I/O buttons blink once.
Reset LED blinks once.
Release, then immediately
press and release again.
Reset LED blinks twice.
Reset LED blinks
three times.
Front panel I/O buttons blink twice.
Front panel I/O buttons blink three times.
Release, then immediately
press and release again.

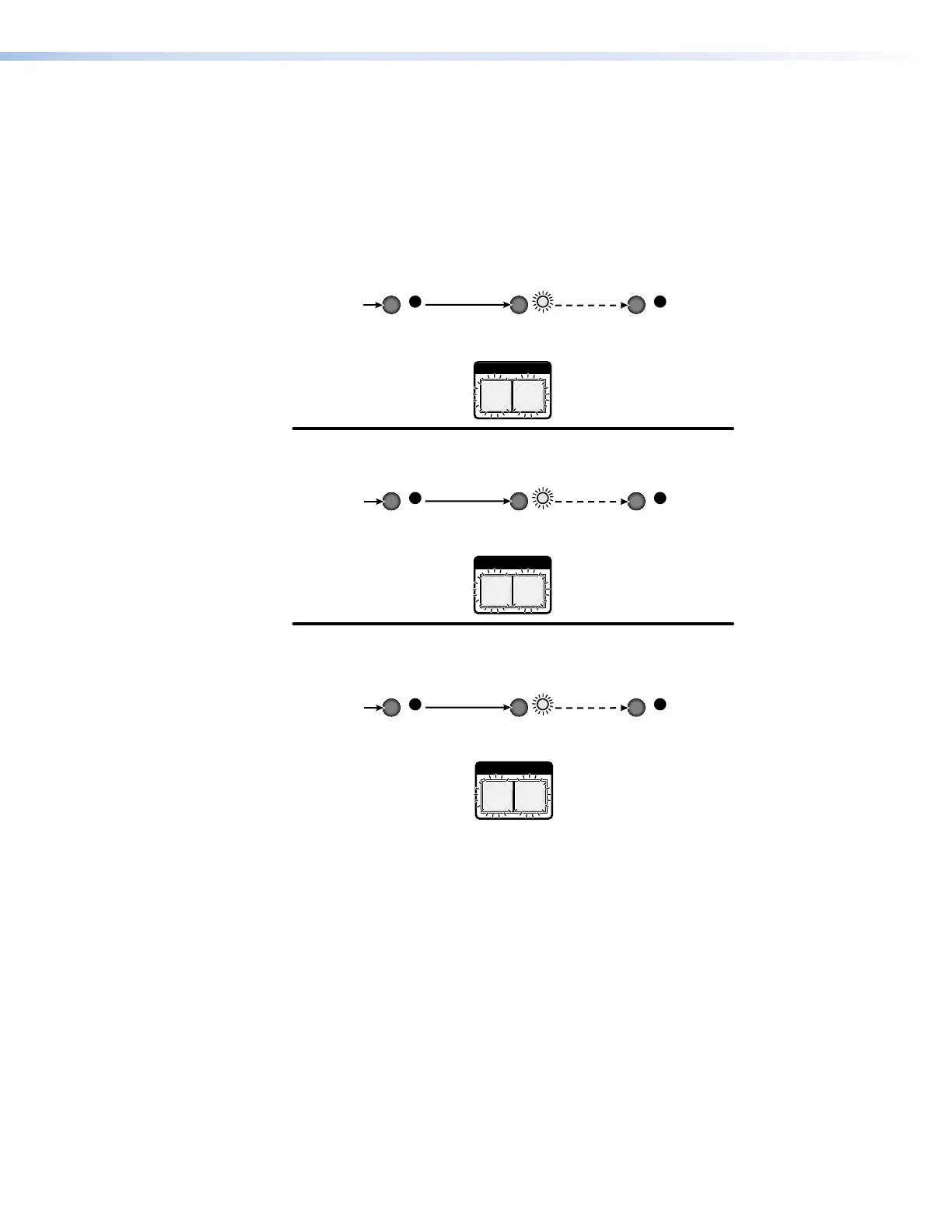

Figure 52. Soft System Resets
2. Release the Reset button and then immediately press and release the Reset button
again. Nothing happens if the second momentary press does not occur within 1 second.
XTP II CrossPoint 1600, 3200, and 6400 Switchers • Operation 68
