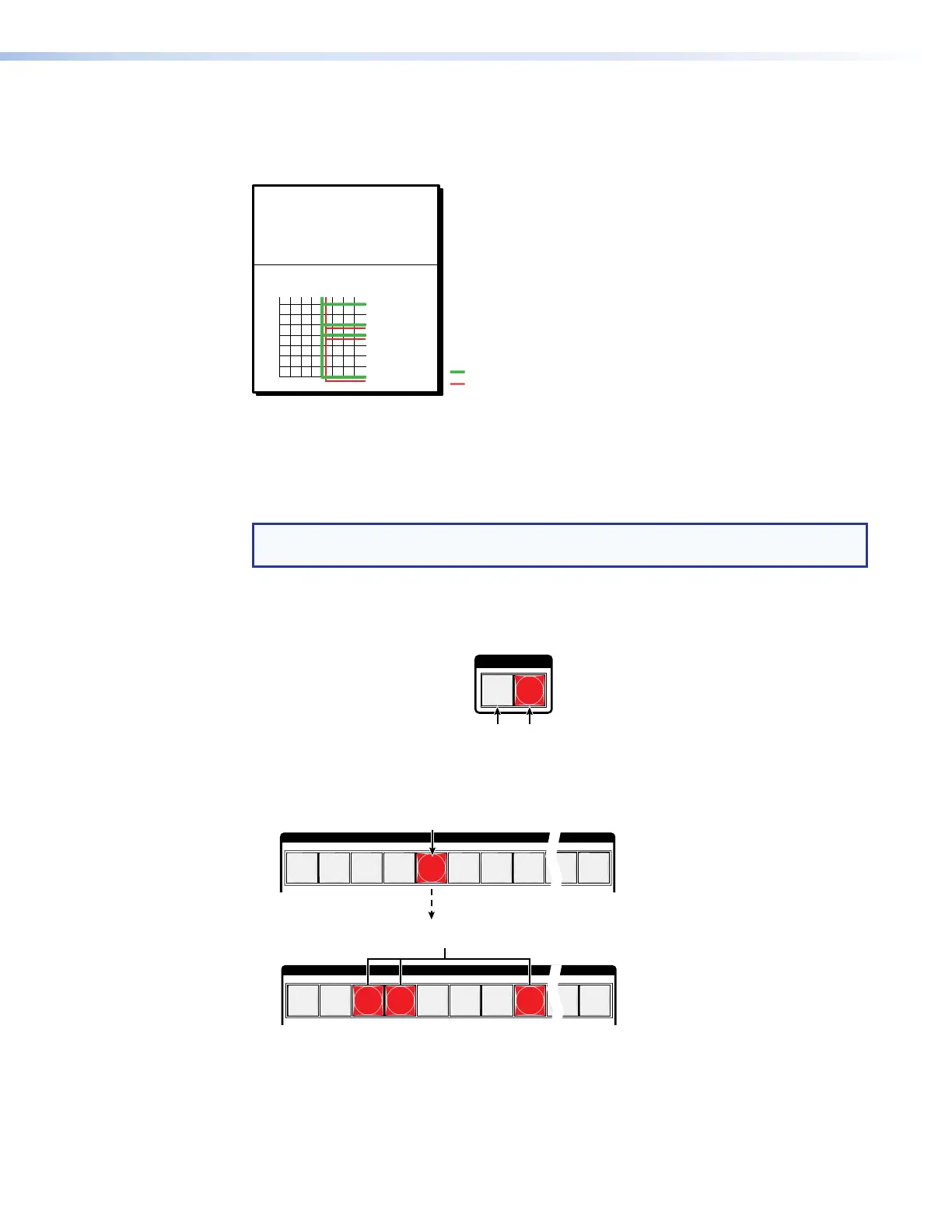

The current configuration (see figure 35) is now:
• Video — Input 5 video is tied to output 1, output 3, output 4, and output 8.
• Audio — Input 5 audio is tied to output 3, output 4, and output 8.
Input 5 video tied
to outputs 1, 3, 4, and 8
Input 5 audio tied
to outputs 3, 4, and 8
Input
Output
1
3
4
8
5
Video
Audio
Figure 35. Final Configuration, Example 2
Example 3: Remove a tie from a set of ties
In the following example, an existing tie is removed from the current configuration. The
example shows the front panel indications that result from your actions.
NOTE: This example assumes that you have performed example 1 on page 39 and
example 2 on page 41.
1. Clear all selections: Press and release the Esc button.
2. Select audio only for the tie: Press and release the Video button and the Audio
button as necessary to light Audio only.
I / O
VIDEO AUDIO
Press the Video button to toggle on and off.
The button is unlit or background illuminated
when deselected.
Press the Audio button to toggle on and off.
The button lights red when selected.
3. Select an input: Press and release the Input 5 button.
INPUTS
1
2
3
4
5
6 7
8
15
16
OUTPUTS
1
2
3
4
5
6 7
8
15
16
The Output 1 button does not light to indicate the tie
created in example 2 because that tie is video only.
The Output 3, Output 4, and Output 8 buttons light
red to indicate the audio ties created in example 1.
Press the button.
The button lights red.
XTP II CrossPoint 1600, 3200, and 6400 Switchers • Operation 42
