Extron electronics XTP II CrossPoint Series User Manual

Example 8: Viewing and adjusting an input audio level
Because of the different gain and attenuation display schemes, the input audio levels that
result from the following example are shown two times:
• As displayed on an XTP II CrossPoint 3200 or XTP II CrossPoint 6400 switcher
• As displayed on an XTP II CrossPoint 1600 switcher
The XTP II CrossPoint 3200 and XTP II CrossPoint 6400 drawings show the actions that led
up to the display. The XTP II CrossPoint 1600 drawings show the gain or attenuation display
only, not the actions that caused it. The actions are the same for both models.
In the following example, an audio level is viewed and adjusted. The steps show the front
panel indications that result from your action.
1. Clear all selections: Press and release the Esc button.

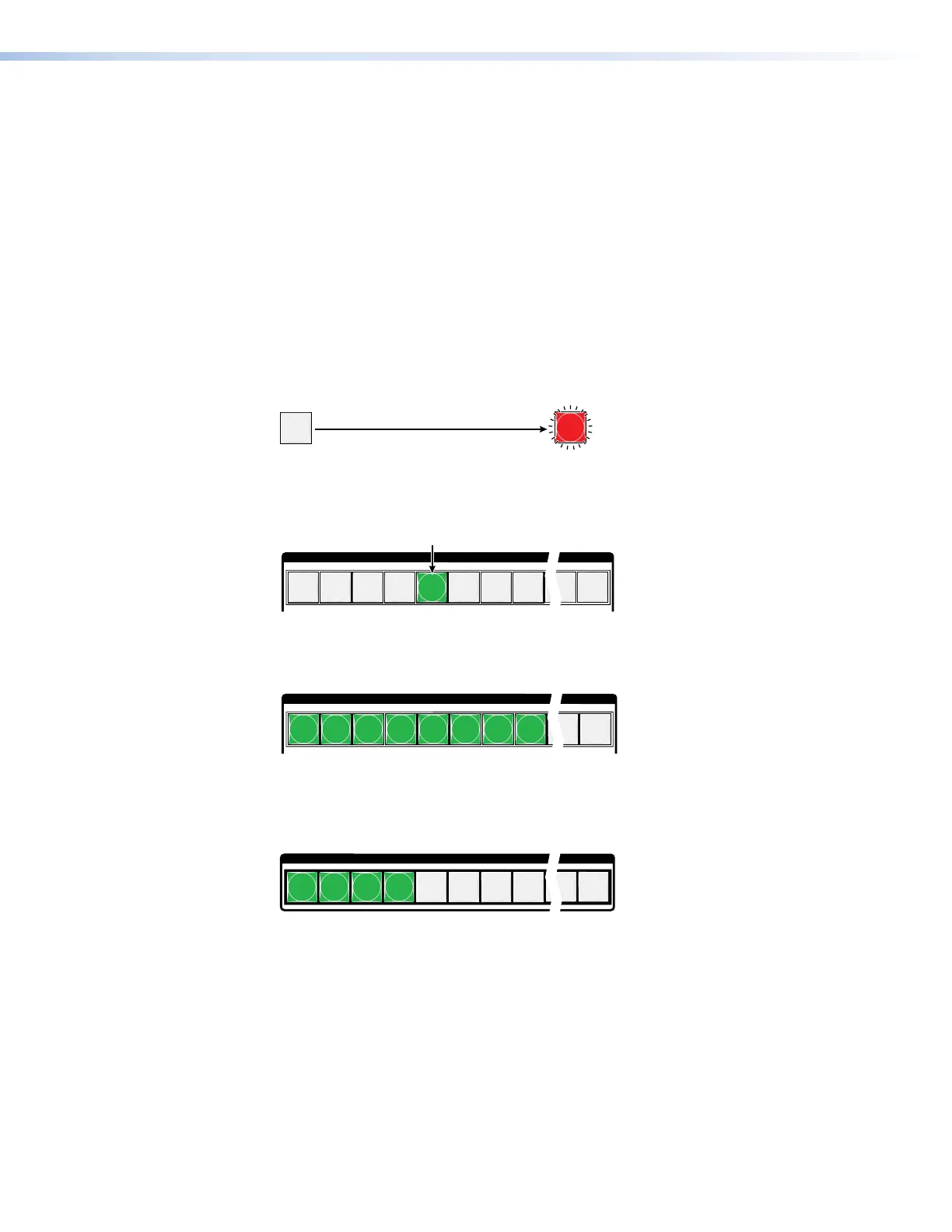

2. Select Audio mode: Press and hold the Audio button for approximately 2 seconds
until it blinks.
AUDIO
AUDIO
Press and hold.
2 seconds
3. Select an input with analog audio: Press and release the Input 5 button (see
figure 39).
Figure 39 and figure 40 show an audio gain level of +8 dB.
INPUTS
1
2
3
4
5
6 7
8
15
16
OUTPUTS
1
2
3
4
5
6 7
8
15
16
Press the button. It lights green.
Each output button indicates 1 dB when lit.
When the buttons are lit green, then indicate a gain (+) audio level.
When the output buttons are lit red, they indicate an attenuation (-) level.
The output buttons display the audio level and polarity (gain or attenuation)
of the selected input.
Figure 39. Select an Input
Figure 40 shows the same +8 dB level as figure 39, but displayed on an
XTP II CrossPoint 1600 switcher.
OUTPUTS
1
2
3
4
5
6 7
8
15
16
Figure 40. Level Display on an XTP II CrossPoint 1600 Switcher
XTP II CrossPoint 1600, 3200, and 6400 Switchers • Operation 55
