OPERATING G3 WIRELESS UNDER SPECIAL
CIRCUMSTANCES
The following sections will give you pointers on setting up and operating the MP-
73/53 control under special circumstances you may encounter.
MIXING WIRELESS & CONVENTIONAL CABLE HOOKUPS (G3)
The controller is capable of a wired connection to one (1) scoreboard while
wireless connection to G3 scoreboards.
To use conventional control wire with a scoreboard, first disconnect the wireless
receiver from the lamp driver card. Conversely, before using a wireless link,
disconnect the conventional control wire from the lamp driver card.
On indoor scoreboards, lamp driver and radio receiver cards are both located
behind the scoreboard HOME SCORE window or shot timer SECONDS window.
On outdoor scoreboards, the lamp driver and radio receiver cards are located
behind a service access door adjacent to the disk antenna.
AVOIDING POTENTIAL PROBLEMS WITH MULTIPLE CONTROLS (G3)

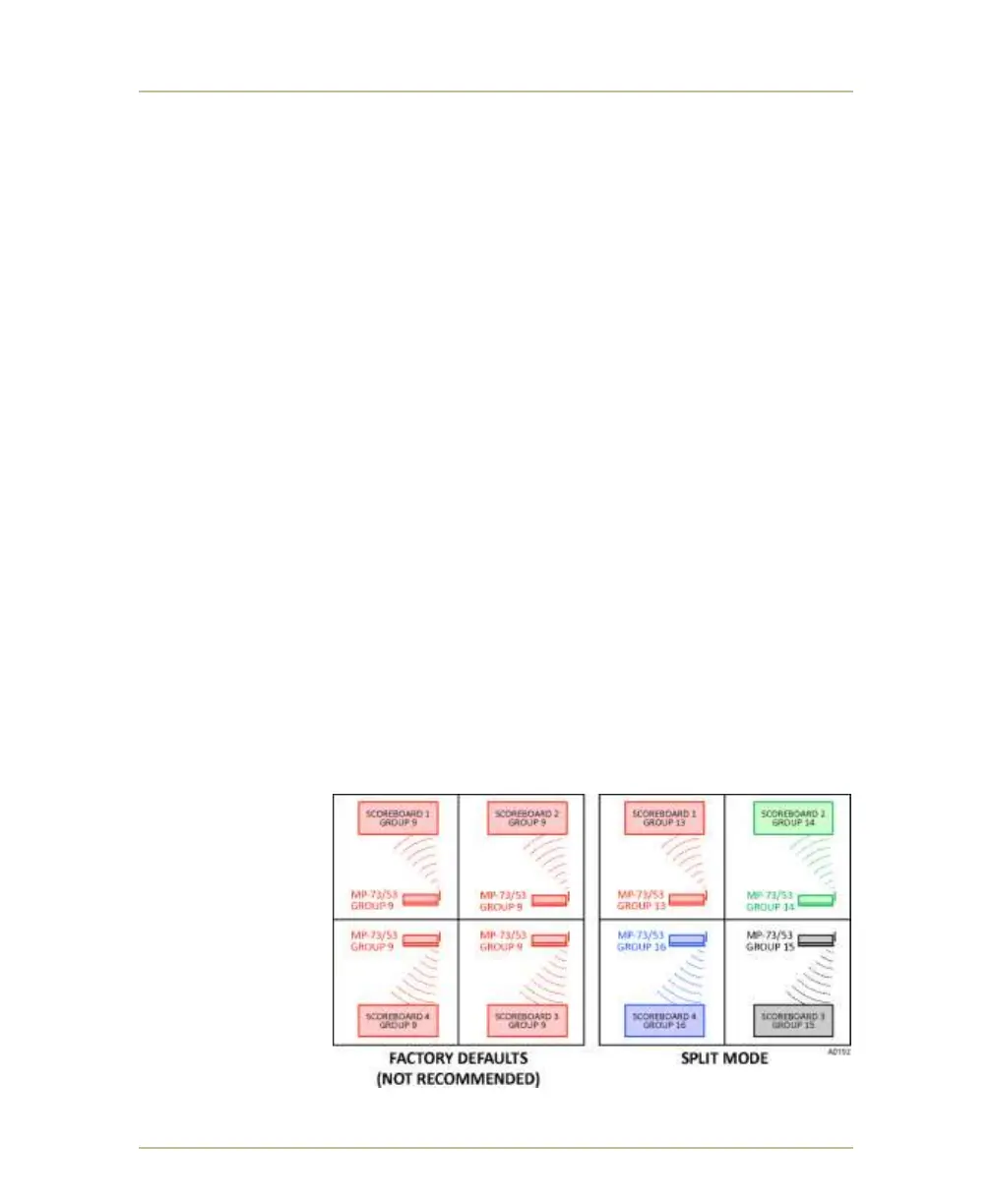

If operating multiple wireless scoreboards with multiple controls, then every
scoreboard and control must be assigned and set to their own group number.
Do not set more than one control to the same group number.
You can set multiple scoreboards to the same group number
If two or more
controls are located
within each other’s
range and are set
to the same group
number then they
will produce
competing signals.
