MP-73/53 G3 Wireless Option
130 MP-70/50 • MP-72/52 • MP-73/53 • PN 98-0002-29 • REV 1709.13

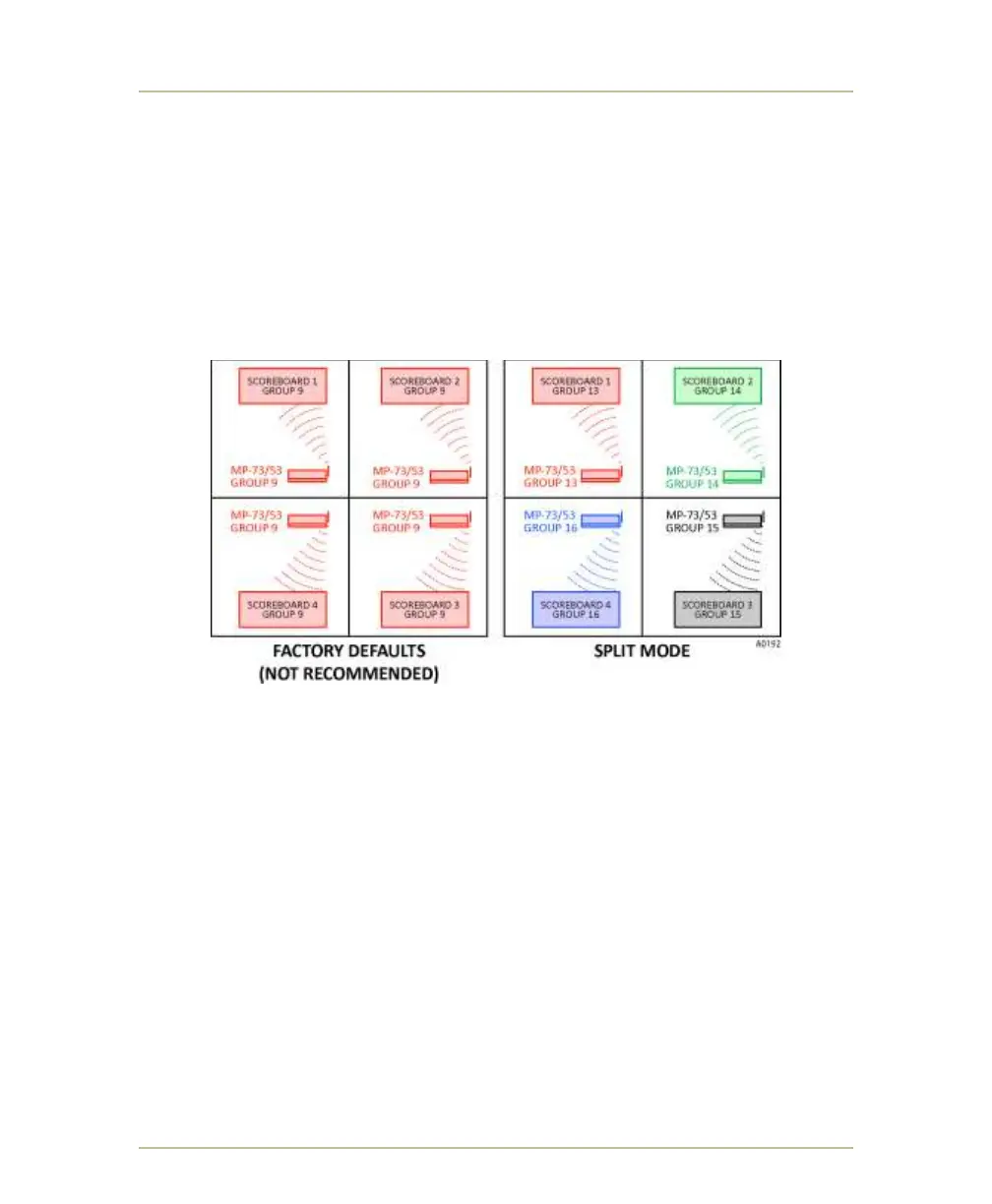

FOUR (4) CONTROLS FOR FOUR (4) SCOREBOARDS
Set up four (4) MP-73/53 G3 wireless controls in a sports facility with four (4)
basketball scoreboards that need to operate independent of each other but can
also be operated by two (2) controls or a single control.
The scoreboards and controls are factory preset to scoreboard type 00 which
defaults to group number 9. Change the scoreboard and controls to group
numbers 13, 14, 15 and 16.
1. Turn on all scoreboards and turn off all controls. The scoreboards will
display its current group number.
2. Change scoreboard then the MP-73/53 group number.
a. To change the scoreboard, refer to SET SCOREBOARD GROUP
NUMBER (G3), WIRELESS METHOD on page 123.
b. To change the MP-73/53, refer to SET GROUP NUMBER (G3) on
page 126.
c. Repeat steps a and b above for remaining scoreboard and MP-
73/53 combinations.
