8. SET UP AND INSTALLATION
CARD G FIT units are designed for direct installation on
the extruder of the production machine.
Make sure that the CARD G FIT unit is absolutly vertical to insure proper
material flow through the hopper.
Avoid direct heat radiation and hot air being blown towards the switch
cabinet of the CARD G FIT unit.

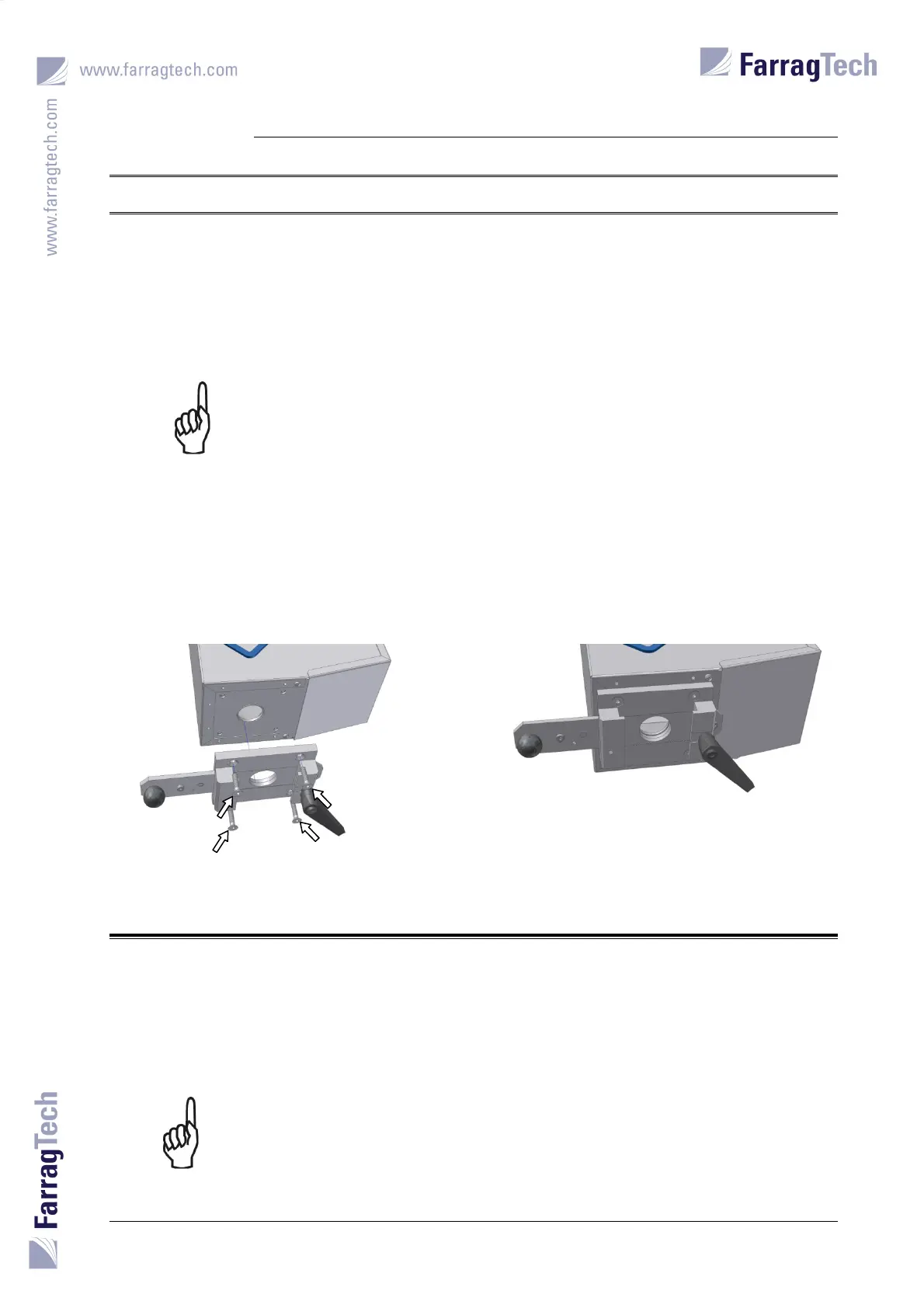

To install the CARD G FIT on an extruder, a flange needs to be mounted on the base plate of the
unit. This flange can then be slid on the steel base plate on the extruder. Locking the release
handle fastens the CARD G FIT on the extruder’s base plate. Opening the shut-off slide releases
the dried material to drop into the extruder.
8.1 COMPRESSED AIR HANDLING AND SUPPLY
Compressed air quality has a great influence on the drying
results. Proper industrial compressed air handling and installation is therefore requested to
guarantee proper function and good drying results. No special air quality is required. Standard
industrial compressed air quality is required:
Pressure dew point of 5°C [41°F] at 7bar [102PSI]
Residual oil content of 3mg/m³ [3ppm]
