EXTENDED MODE
CARD G / FIT 46 V 6.15 E / April 2010

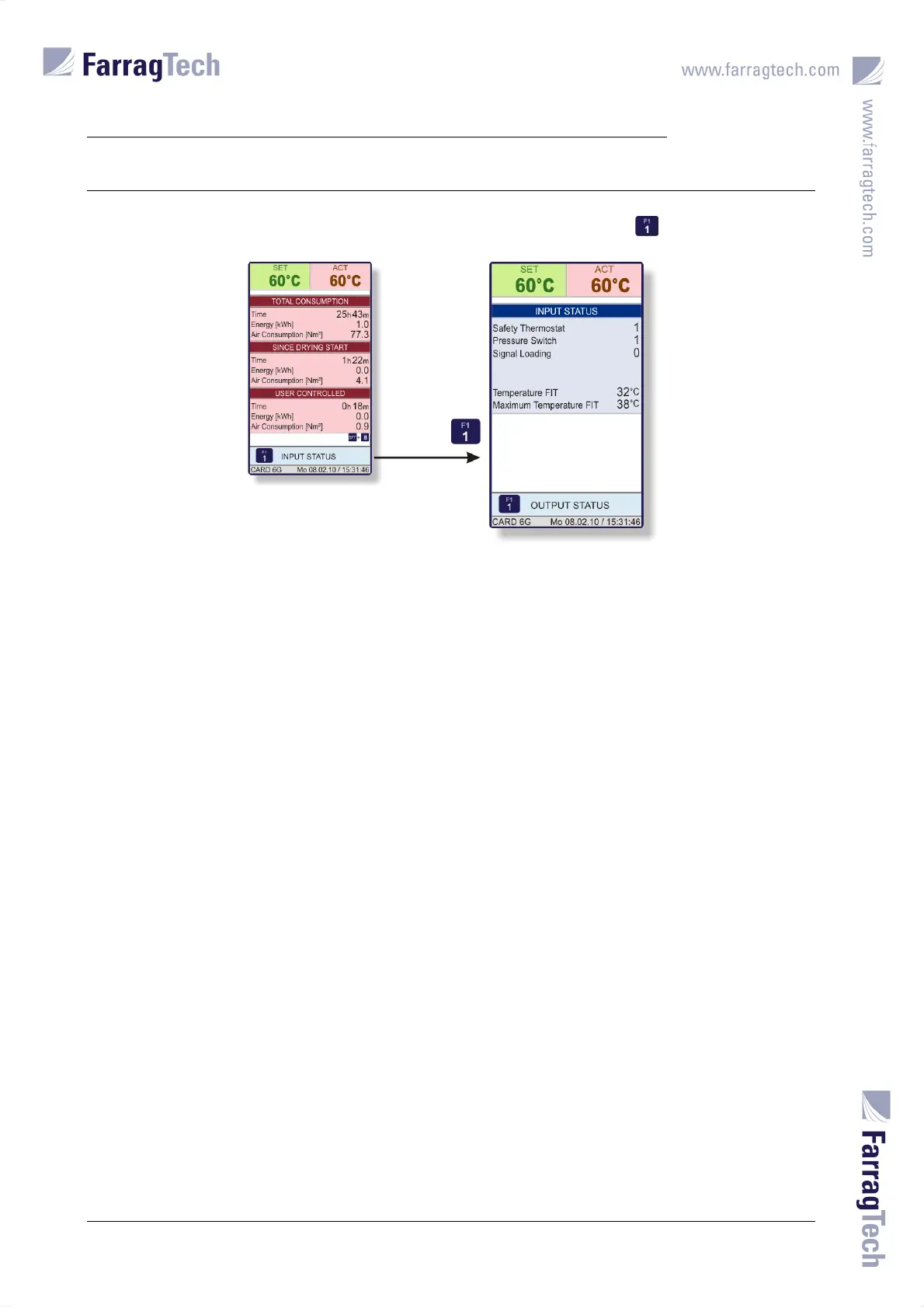

17.2.2 INPUT STATUS SCREEN
The INPUT STATUS SCREEN is attained from the ENERGY SCREEN with the key .
This screen is helpful for troubleshooting in case of alarms at the CARD G FIT. It shows the status
of the digital inputs connected to the FIT-controller.
Value 1 means the appropriate input is ON, value 0 means the input is OFF.
The actual and the maximum temperature inside the FIT-controller are also displayed.
