EXTENDED MODE
CARD G / FIT 47 V 6.15 E / April 2010
17.2.3 OUTPUT STATUS SCREEN

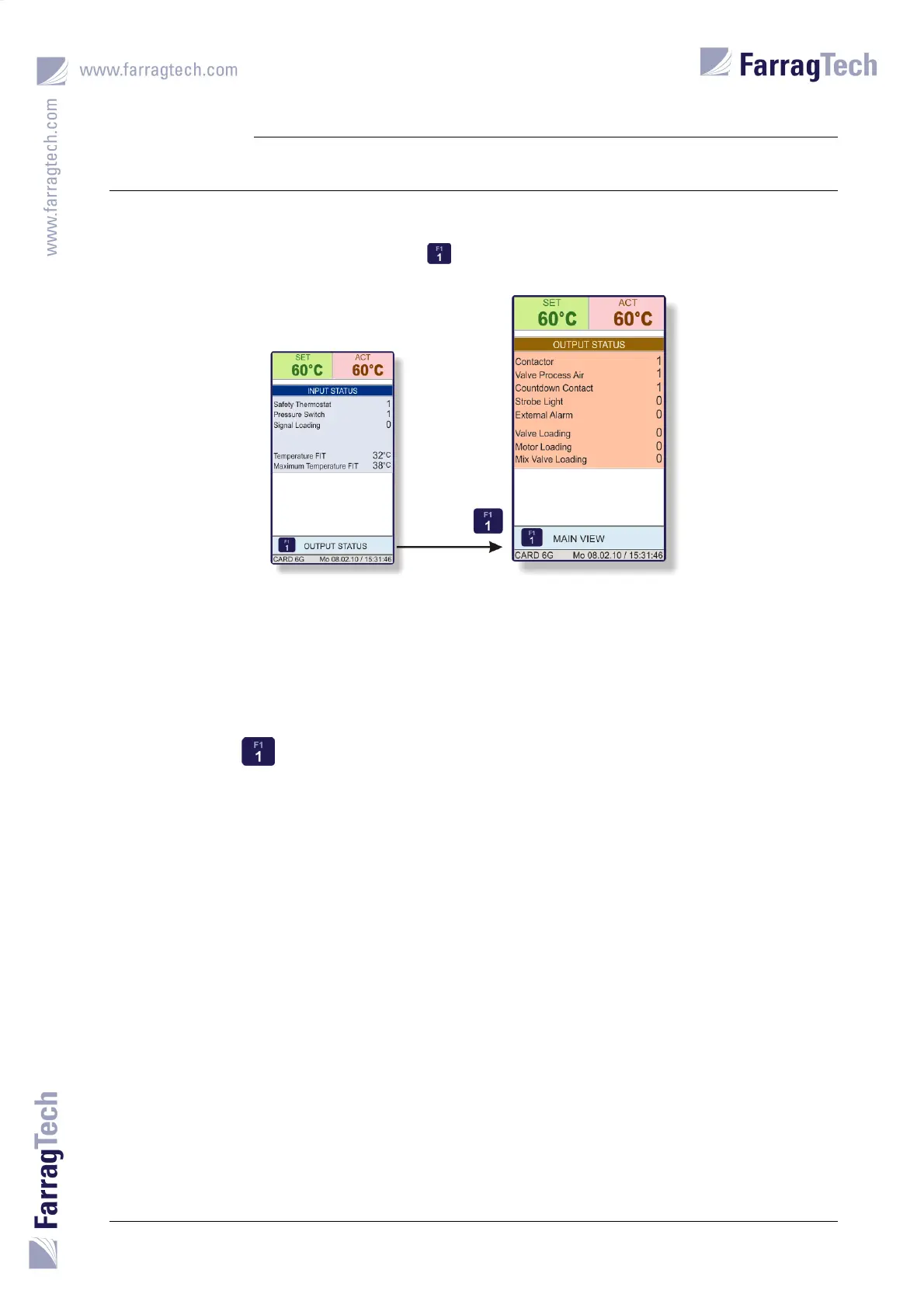

The OUTPUT STATUS SCREEN is attained
from the INPUT STATUS SCREEN with the key .
This screen is helpful for troubleshooting in case of alarms at the CARD G FIT. It shows the status
of the digital outputs connected to the FIT-controller.
Value 1 means the appropriate output is switched ON, value 0 means the appropriate output is
switched OFF.
Pressing the key returns the operator to the MAIN SCREEN
