Dust Extractor
RL 250 / RL 300 / RL 350
Fig. 6-1.2: Optional equipment
Warning! Risk of injury! / Risk of material damage!
Consider the centre of gravity when hoisting the machine (danger of overturning).
Use a wooden mat approx. 19x60x1000 mm
Remove the transport brackets before moving the machine
to the installation location
Remove all transport locking devices from the machine
prior to machine operation.
#
Transport brackets / transport support
Note: Optional equipment (Rotary feeder / Wood chip briquetting press)
The assembly may only be undertaken by an authorised customer service technician.
Assembling on your own authority may result in personal injury or material damage.
!Cutout hole in the machine frame
"
Synthetic insert
Standard equipment:
Lift the lever and remove the whole container from under
the machine.
Optional equipment
(Rotary feeder / Wood chip briquetting press)
Transport the machine according to the enclosed transport
and assembly instructions!
all machines:
Move the forks of the forklift truck so they fit into the machi-
ne frame holes.
Place the synthetic insert into position. approx.
19x60x1000 mm
remove transport supports
Fig. 6-1.2: Optional equipment
Remove the transport brackets before moving the machine
to the installation location
Remove all transport locking devices from the machine
prior to machine operation.
#
Transport brackets / transport support
!Cutout hole in the machine frame
"
Synthetic insert
6.2 Assembly
Note: Due to technical reasons, the machine is delivered in a partly dismantled state. To install the ma-
chines without a problem, two extra reliable people will be needed.

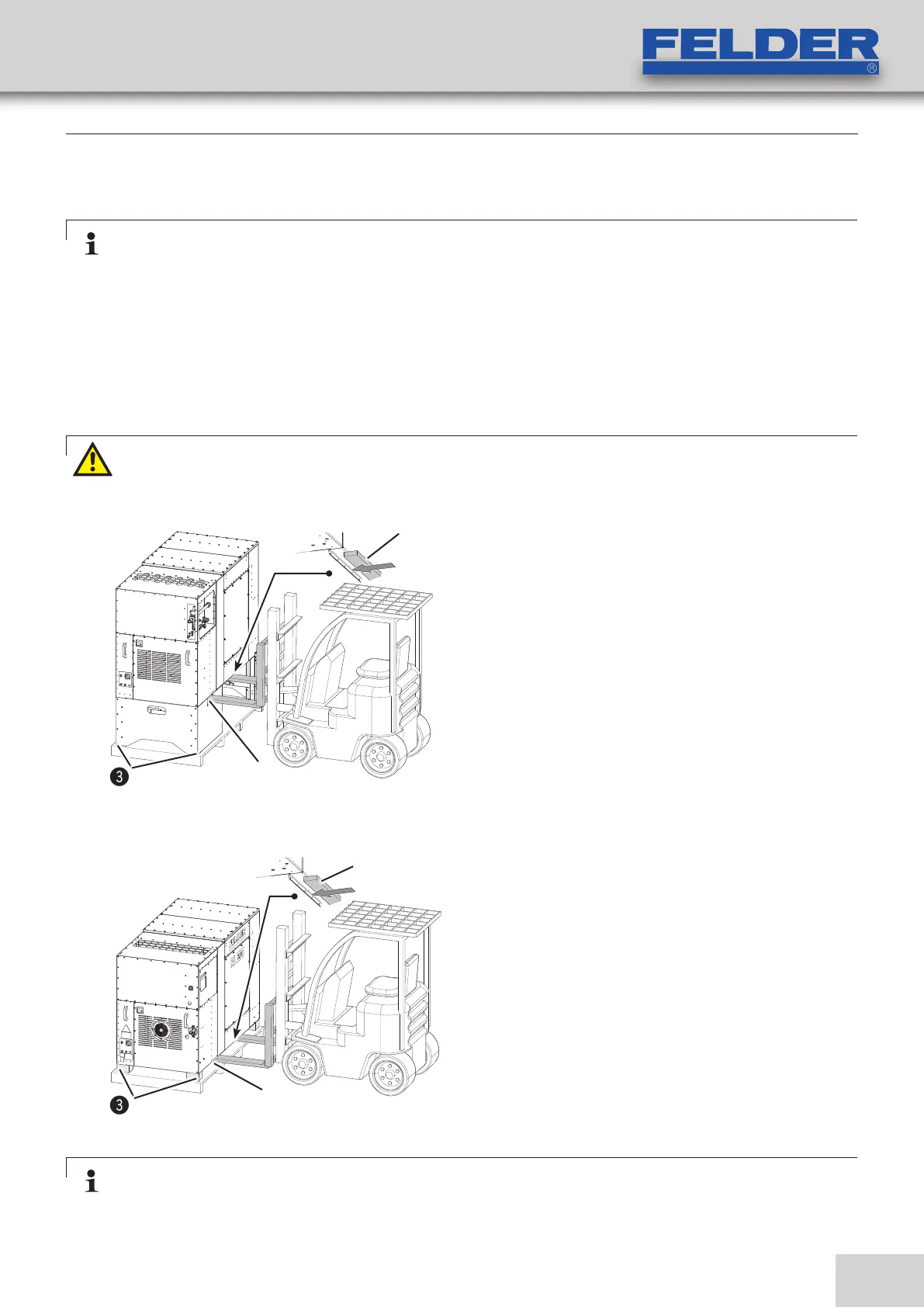

Fig. 6-1.1: Lifting procedures / Transporting the machine
Setup and installation
6.2.1 Basic extractor
Note: For a perfect extraction result, a correct installation of the system is necessary
( e.g. Check whether the minimum exhaust volume control is functioning correctly)
We recommend this be performed by FELDER trained specialists.
