Felder RL 250 - Empty the Condensation Receptable

40
0
1
2
3
4
5
H
2
O
H
2
O
!
"
!
"
#
!
Dust Extractor
RL 250 / RL 300 / RL 350

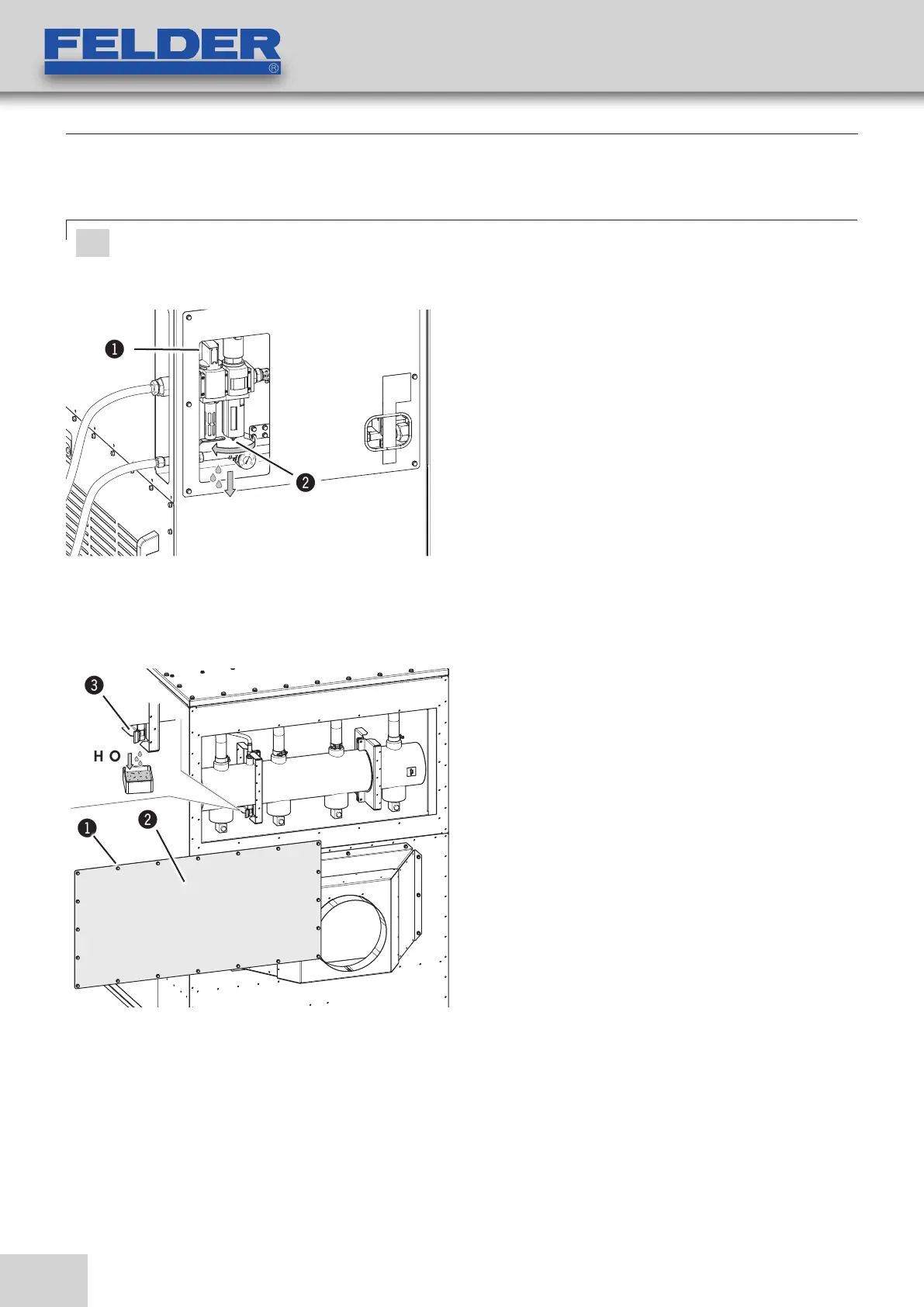

Fig. 8-5: Drain plug
Attention! Risk of material damage!
Never fill the condensation receptable with lubricant oils!
Fig. 8-4: Drain plug
1. Switch the device off and pull out the power plug.
2. Stop the pneumatic supply.
3. Remove the machine from the compressed air supply
system and vent the remaining compressed air.
Manual start-up valve:
Turn the knob at a right angle to the direction of
flow.
Pressure connection point including regula-
tor, filter and water blocker:
4. Twist the drain plug on the condensation receptable.
5. Once the condensation receptable is empty and com-
pressed air no longer escapes, close the drain plug
again.
Compressed air tank:
4. Loosen and remove the hex nuts.
Take off the covering lid.
5. Put a container below the drain cock.
Twist the drain plug on the condensation receptable.
6. Once the condensation receptable is empty and com-
pressed air no longer escapes, close the drain plug
again.
7. Compressed air container visual check (for corrosion).
Reassemble the cover.
8.8 Empty the condensation receptable
!Nuts (Cover)
"Cover (Guard plate)
#Drain plug
!Manual start-up valve
"Drain plug
Service
