Felder RL 250 - Inserting;Replacing the Chip Bags

31
0
1
2
3
4
5
#
!
!
$
!
1. Filter reinigen | Clean Filter | Nettoyez le filtre
2.1.
MAX
Achtung ! Attention !
2. Behälter leeren | Empty container | Videz le réservoir
"
"
#
Dust Extractor
RL 250 / RL 300 / RL 350
7.2 Inserting/replacing the chip bags

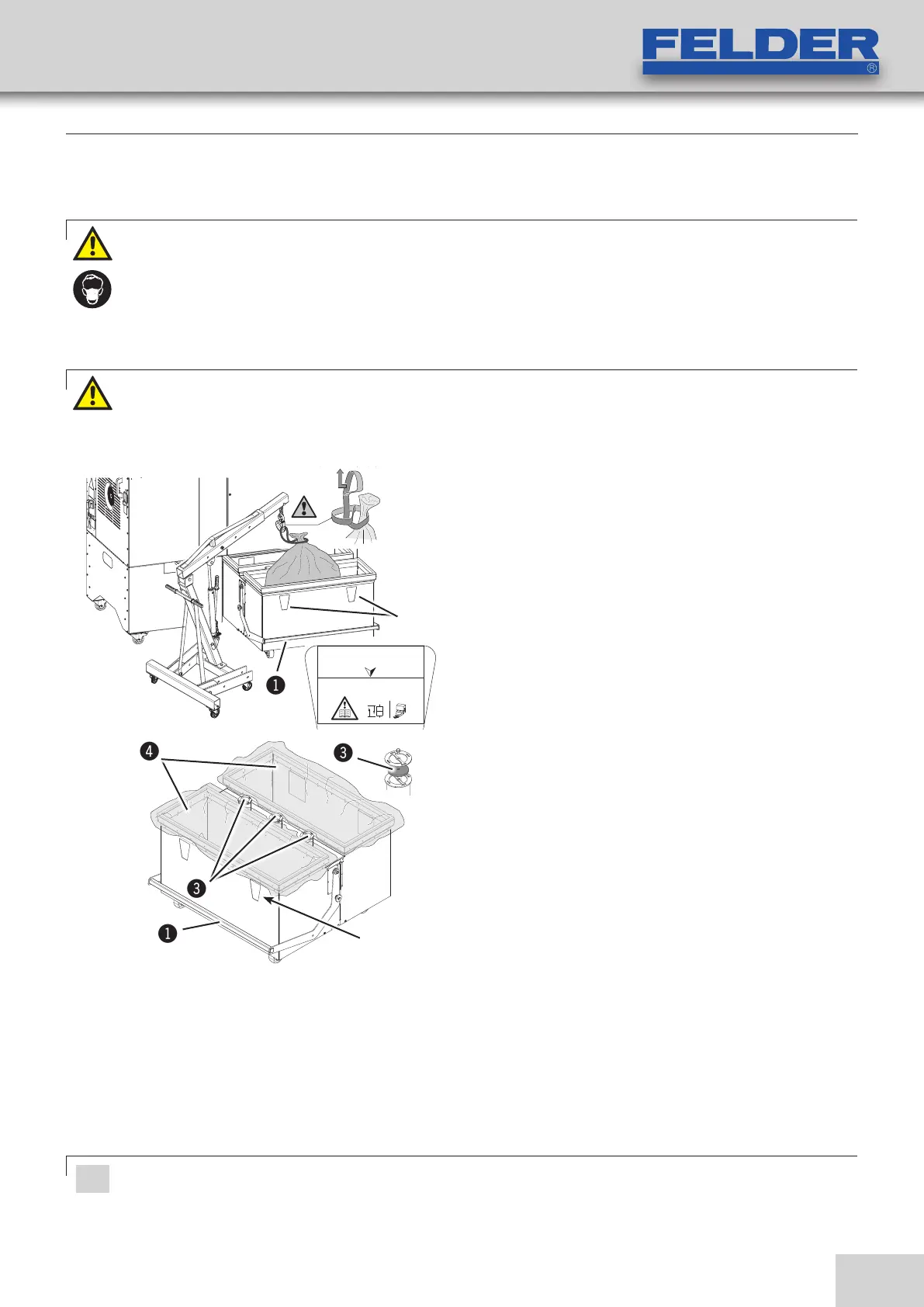

Fig. 7-1: Inserting/replacing the chip bags
Attention! Risk of material damage!
The dust collector works with 2 chip bags. Both collecting bags must always be inserted into the unit.
The unit may not be operated without the chip bags!
Do not place the chip bags over the extractor supports!
Operation
The dust container should be emptied if full and after
use!
At the very latest, the chip bags need to be replaced
once the indicator windows are filled to the 3/4 mark
(see sticker), or if the chip bags are damaged.
1. First clean the filters carefully!
See chapter entitled: >Dedusting the filter<
2. Switch off the device and wait for the ventilator to
come to a halt.
3. Switch off (Position “0”) the main switch and secure.
4. After lifting lever, you can roll the entire container from
under the unit.
Insert one bag in each chamber so the bag rim
extends approx. 3–4 cm over the edge of the dust
container.
Make sure the chip bags lie as smoothly as possible
against the container walls.
5. Slide the container back under the unit and lower
lever.
6. Check whether the seal between dust collector and
unit is broken, replace if needed
!Lever
"Indicator window
Warning! Danger of dust inhalation:
Always use a dust respirator (filter mask with a particle collector, Class 2) when carrying out this task. Prevent
uninvolved people from being exposed to the dust pollution.
Dust and shavings must be disposed of according to the regulations of the country where the machine is
installed.
The chip bags may only be changed once the unit has been switched off!
Warning! Heavy dead weights can easily cause an injury
Keep handling auxiliaries at hand (Crane, Belts...)
Ensure that the lifting gear used has an adequate capacity and that the load is
secured against lateral slippage!
#Extractor supports (Vacuum)
Replacement filter: Order no. 02.0.038
$Chip bags
Order no. 02.0.037
10 chip bags for RL 250 / 300 / 350
