Dust Extractor
RL 250 / RL 300 / RL 350
Warning light lights up:
1. Switch off the device and wait for the ventilator to
come to a halt.
2. Switch off (Position “0”) the main switch and secure.
Pull out the mains plug!
3. Loosen the screw and take off the covering lid
4. Release blockade (e.g. wedged wood)
5. Fit and screw the covering lid back on.
Exit error, restart machine
1. Plug the device into the electric mains supply.
Switch on the main switch ("I" position).
2. Red push button (LED flashes)
press and hold: approx. 5 seconds
3. Prepare the machine to operate
4. Start device:
Hold down and then release the green push button.
!Warning light: Remove blockage
"Red push button (LED flashes)
#Cover
$Screws (6 pcs.)

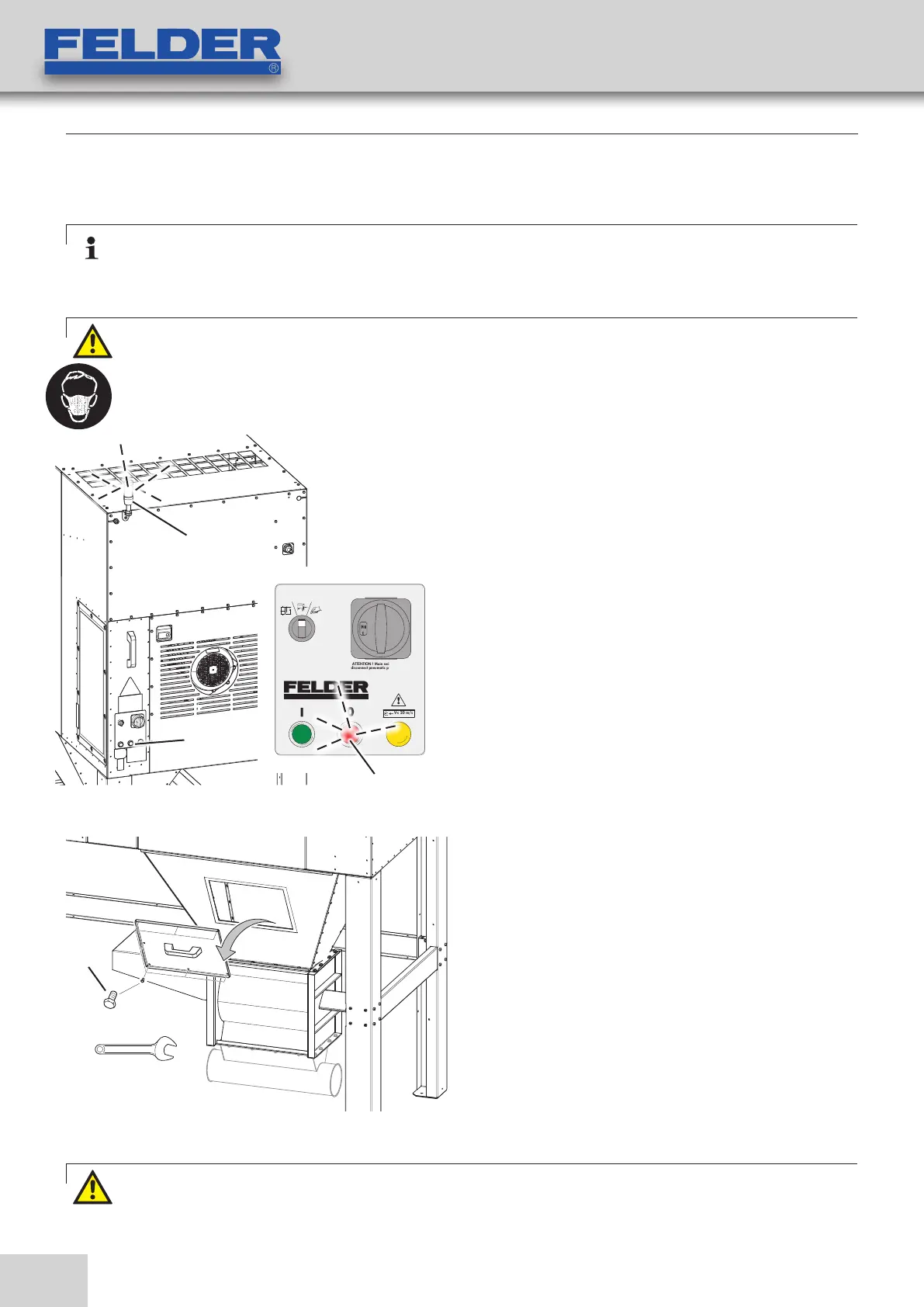

Fig. 7-3: Warning light lights up
Fig. 7-4: Remove the cover lid.
Note:
Warning light lights up: Switch the device off!
A foreign object is blocking the scraper of the mini silo.
Warning! Risk of injury!
Improper operation may lead to severe physical injury or material damage.
during operation: Do not release the cover!
7.4.2 Electrics - Optional equipment: Rotary feeder
Operation
Warning! Danger of dust inhalation:
Always use a dust respirator (filter mask with a particle collector, Class 2) when carrying out this task. Prevent
uninvolved people from being exposed to the dust pollution.
Dust and shavings must be disposed of according to the regulations of the country where the machine is
installed.
