Dust Extractor
RL 250 / RL 300 / RL 350
Service
Attention! Safety regulations
Ensure that this cover is always easy to move.
Closes the vacuum connector if dust should explode.
8.7 Safety cover (Check every six months)
1. Release the extractor hose from the extraction port.
2. Check the function; the safety cover have to fall back
in place after having been lifted up.
3. Attach vacuum hose to the vacuum support using the
hose clamp
!Vacuum hose
"Safety cover
#Remove dust and shavings
Fig. 8-4: Safety cover

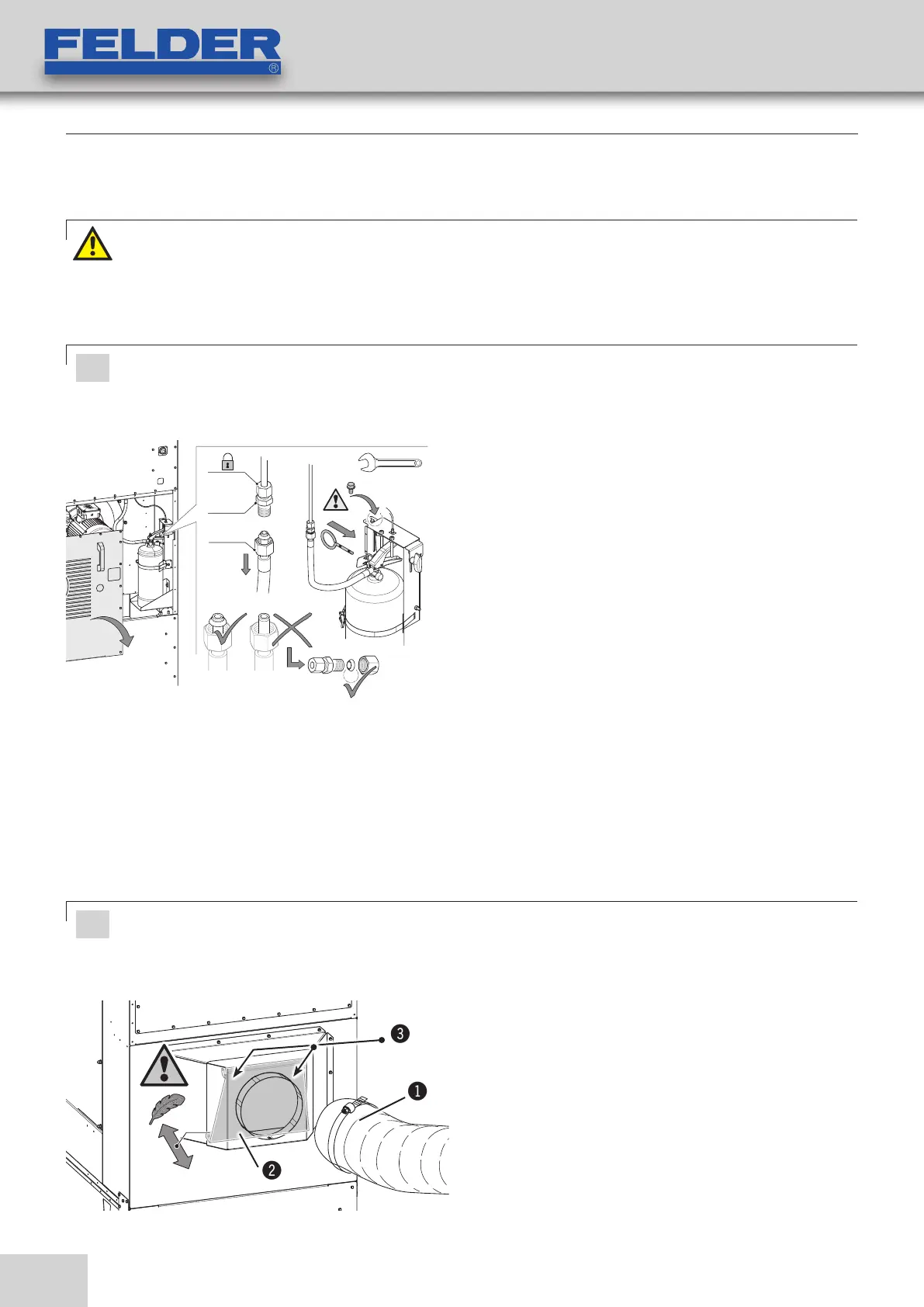

8.6 Extinguisher: Maintenance and servicing (Every two years)
Fig. 8-3: Fire extinguisher
!Cover
"Securing bolt + Retaining ring
#Connection opening Part number: 250INL
Attention! Risk of material damage!
At the installation ensure that connection opening is complete (Part number: 250INL)
Warning! Risk of injury! / Risk of material damage!
The following tasks may only be carried out by qualified and skilled personnel and according
to the safety regulations.
We recommend this be performed by FELDER trained specialists.
Execute the following instructions exactly!
See next page (Assembly instructions)
1. Switch the device off and pull out the power plug.
Take off the covering lid.
2. Secure the extinguisher to prevent it from discharging.
(Retaining ring + Securing bolt)
3. Release the screw fitting, Take the extinguisher out of
the machine.
4. The fire extinguisher must be checked by an autho-
rised specialist company.
5. To reassemble, follow the instructions in the reverse
order.
Please contact the FELDER KG service department, if
problems or a fault- function should occur!
