32
20 m/sV<
Auto
ACHTUNG ! Hauptschalter
trennt Maschine nicht vom Druckluftnetz !
ATTENTION ! Main switch does not
disconnect pneumatic power supply !
!
"
#
$ %
I
II
III
!
Dust Extractor
RL 250 / RL 300 / RL 350
Operation
Attention! Risk of material damage!
The machine may not be switched off more often than 3 times per minute using the red Off switch.
The motor will become too hot!
i.e. the motor may be run at the nominal capacity and afterwards must run idle for 6 minutes.
7.4 Electrics

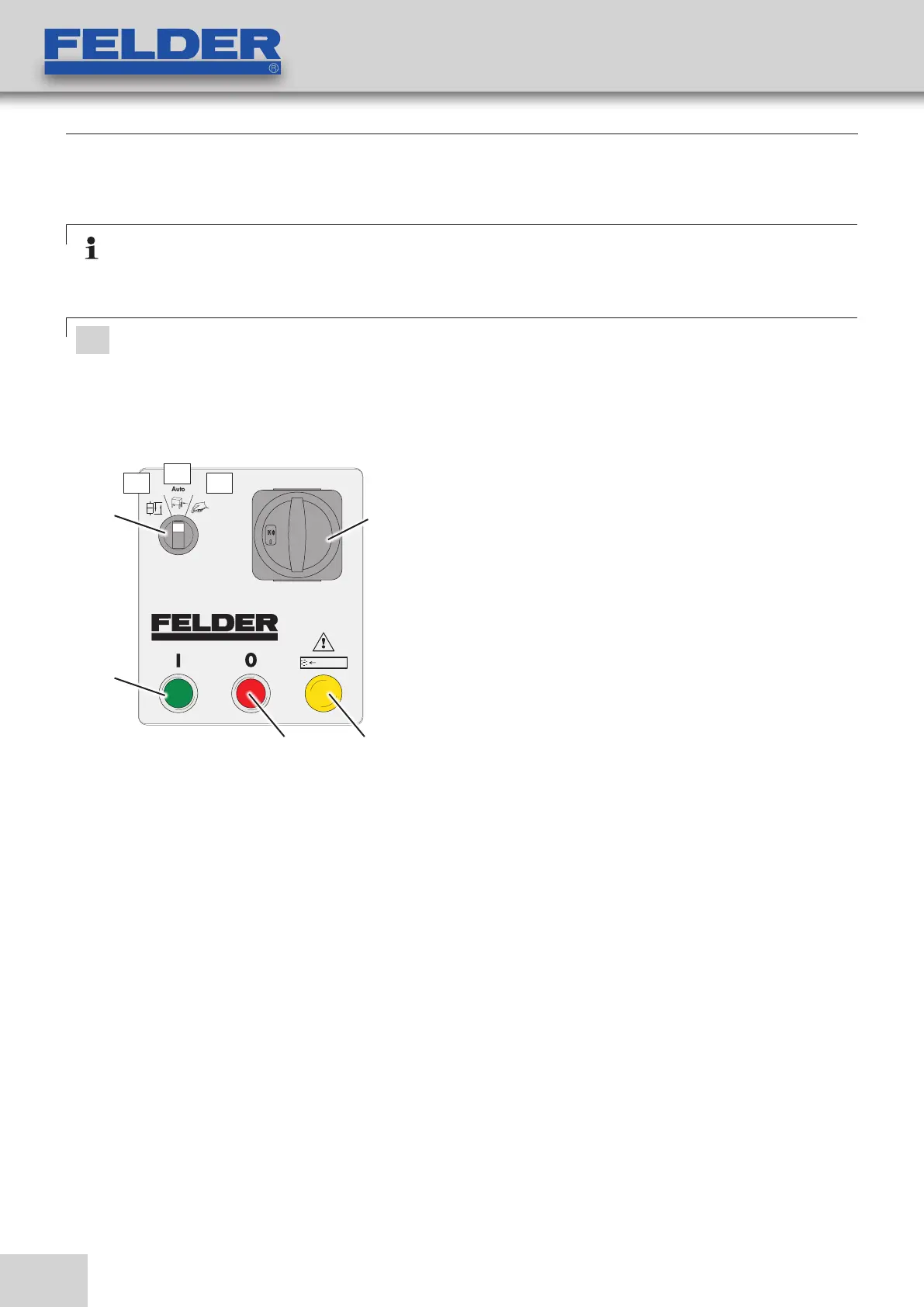

Fig. 7-2: Electrics
!Main switch
"Machine mode selector
#Green push button
$Red push button
%Warning light: Filter contents level monitoring
1. Switch the machine on/off with the main switch.
2. Machine mode selector
Switch position I
Filter cleaning cycle
The in-built filter elements are cleaned automatically.
See chapter entitled: Cleaning the filter
Switch position II
Automatic operation
The extraction device runs automatically once a wood-
working machine has been started.
See chapter entitled: Automatic Starting Device
Switch position III
Manual operation
• Start device: Green push button
• Stop device: Red push button
Note:
The machine is equipped with a motor protection device that switches the machine off in the event of an
overload.
