Dust Extractor
RL 250 / RL 300 / RL 350

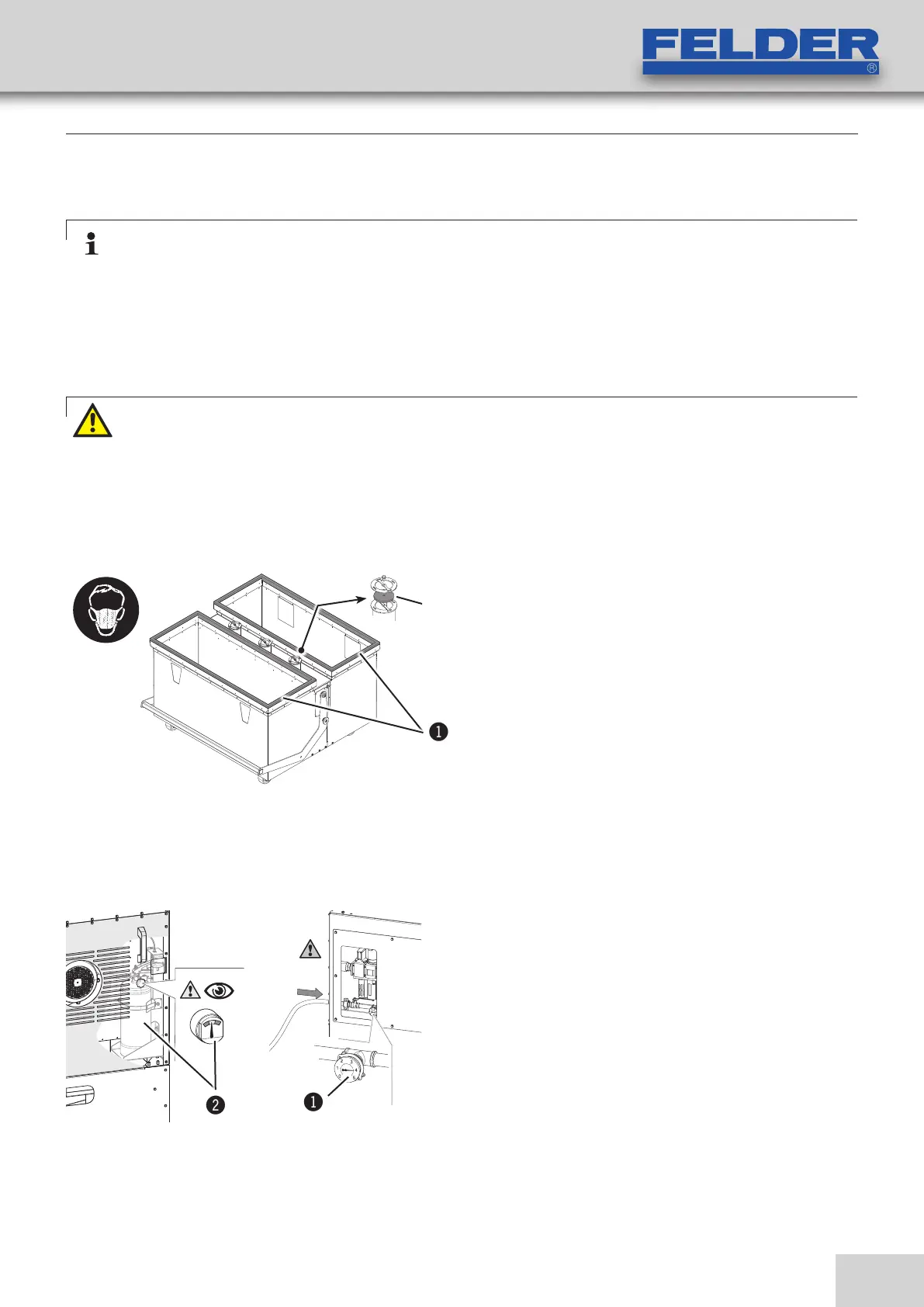

Fig. 8-1: Seal
8.3 Motor and electrical equipment
8.5 Fire extinguisher: Extinguisher / Water
Fig. 8-2: Fire extinguisher
!Water pressure gauge extinguisher
"Extinguisher
Service
The seal between the chip container and dust collector
must be tight, otherwise the chip bags will be sucked
upwards and the unit will not function correctly!
Check the seal periodically and replace if needed.
!Seal
"Extractor supports (Vacuum)
Replacement filter: Order no. 02.0.038
Water sprinkler:
The fire extinguisher system is free of maintenance and
must not be taken apart by the user.
Check display pressure:
Interval: Daily
Extinguisher:
Maintenance and servicing: Every two years
see the following pages
Check display pressure:
Interval: At least every six months
Please contact the FELDER KG service department, if
problems or a fault- function should occur!
8.4 Dust collector / Seals
Warning! Danger of dust inhalation:
Always use a dust respirator (filter mask with a particle collector, Class 2) when carrying out this task. Prevent
uninvolved people from being exposed to the dust pollution.
The entire unit should be cleaned of dust and chips on a weekly basis.
Remove the chip collector box to access the inside of the unit.
Note: The motor and electrical equipment are maintenance free. Be sure the motor can always cool suffici-
ently, i.e. regularly clean any chips and dust from the fan cover.
