Felder RL 250 - Collector Casters (Optional Equipment: Rotary Feeder); Vacuum Connector Assembly

23
ISK 6
$
%
&
"
#
!
"
!
#
Dust Extractor
RL 250 / RL 300 / RL 350
Assembling casters to the dust extractor:
!Collector casters
"Allen screws
6 pcs. - M8 x 25 mm
#Shims

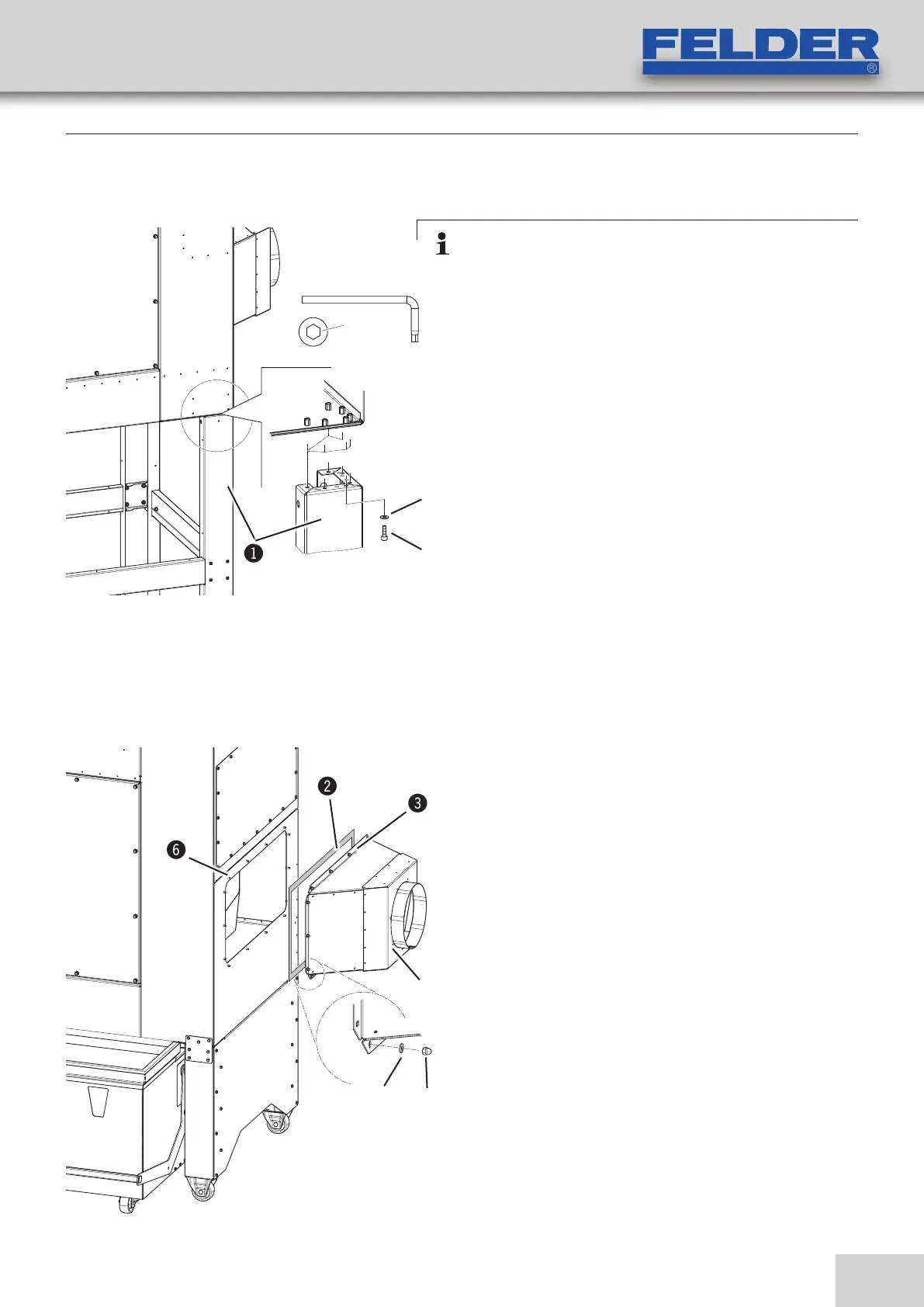

Fig. 6-3: Collector casters
Assembling casters to the dust extractor:
!Collector casters
"Allen screws
6 pcs. - M8 x 25 mm
#Shims
Fig. 6-3: Collector casters
1. Vacuum connector assembly.
2. Stick sealing tape to the bottom of the connection
plate.
3. Screw connection plate to the machine with nuts and
washers. (15 x).
Remove the oxidation protective layer from all blank
machine parts.
!Vacuum connector
"Sealing tape.
§Connection plate
$Shims
%cap nut
&Basic extractor
6.2.5 Vacuum connector assembly
Fig. 6-4: Vacuum connector assembly
Setup and installation
6.2.4 Collector casters (Optional equipment: Rotary feeder)
Note:
The assembly may only be undertaken by an authorised
customer service technician.
Assembling on your own authority may result in personal
injury or material damage.
