FENDT FAVORIT 900 - Installation and removal of rear-wheel brake

Fav 900
Transmission / Brake system
Installation and removal of rear-wheel brake
G
Repair
09.10.2001
1070 000006
G
a
1/4
Capitel Docu-No.
Index
Date Version
Page

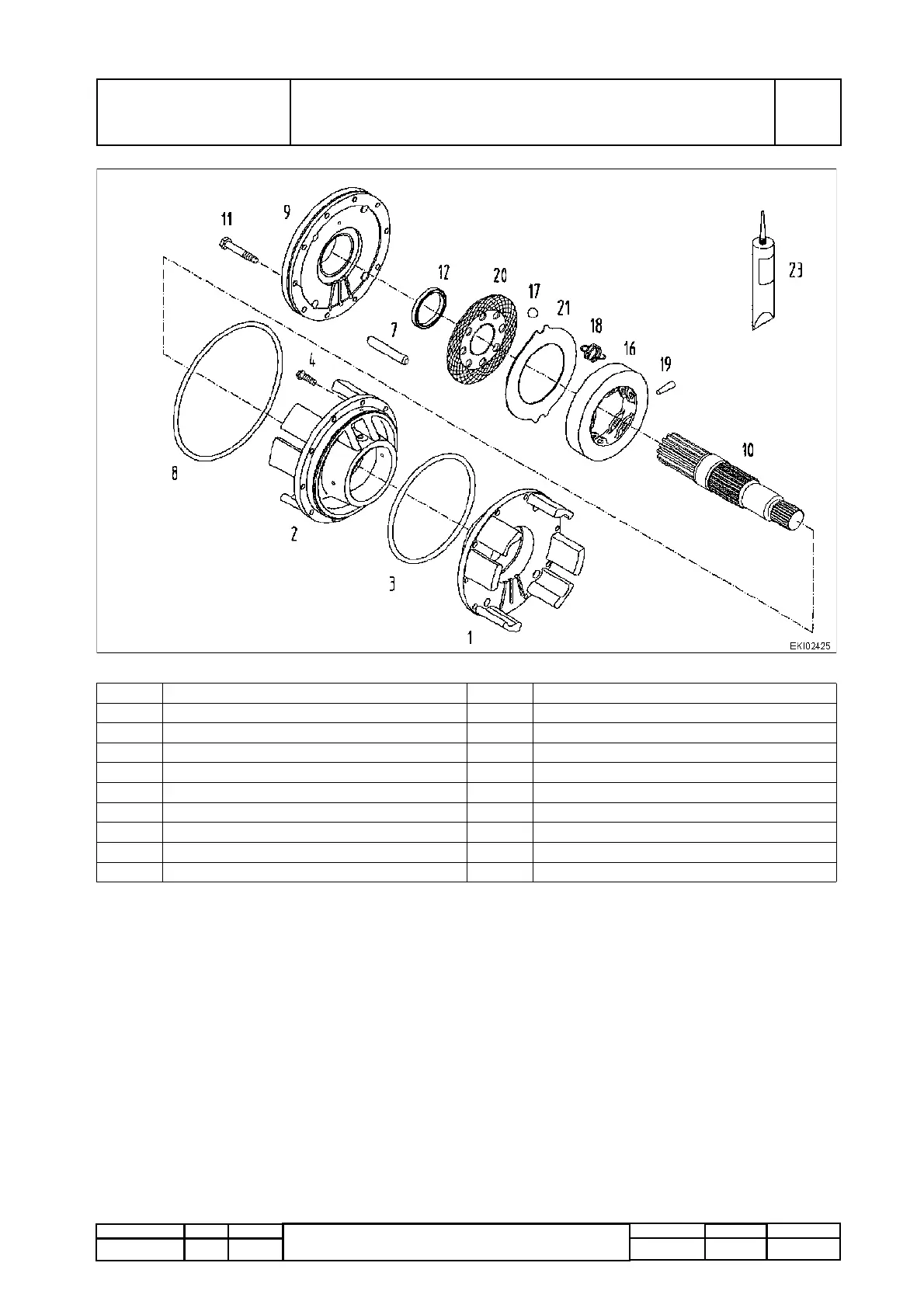

Installation and removal of rear-wheel brake
PM-Picturemodule
Text-module
PMTAB_Picture
Item Designation Item Designation
1 Bearing flange 12 Shaft seal
2 Bearing flange 16 Actuating disc
3 O-ring 17 Ball
4 M12x40-10.9 hexagon screw 18 Extension spring
7 Pin 19 Parallel pin
8 O-ring 20 Brake pad
9 Brake plate 21 Externally toothed disc
10 Shaft 23 Surface seal X903.050.074
11 M12x160-10.9 hexagon screw
