FENDT FAVORIT 900 User Manual

Fav 900
Electric / System in General
B035 - Hand throttle Position Sensor
E
Testing
Fav 900 chassis Number 23/3001 and up
29.11.2000
9000 000049
E
a
1/1
Capitel Docu-No.
Index
Date Version
Page

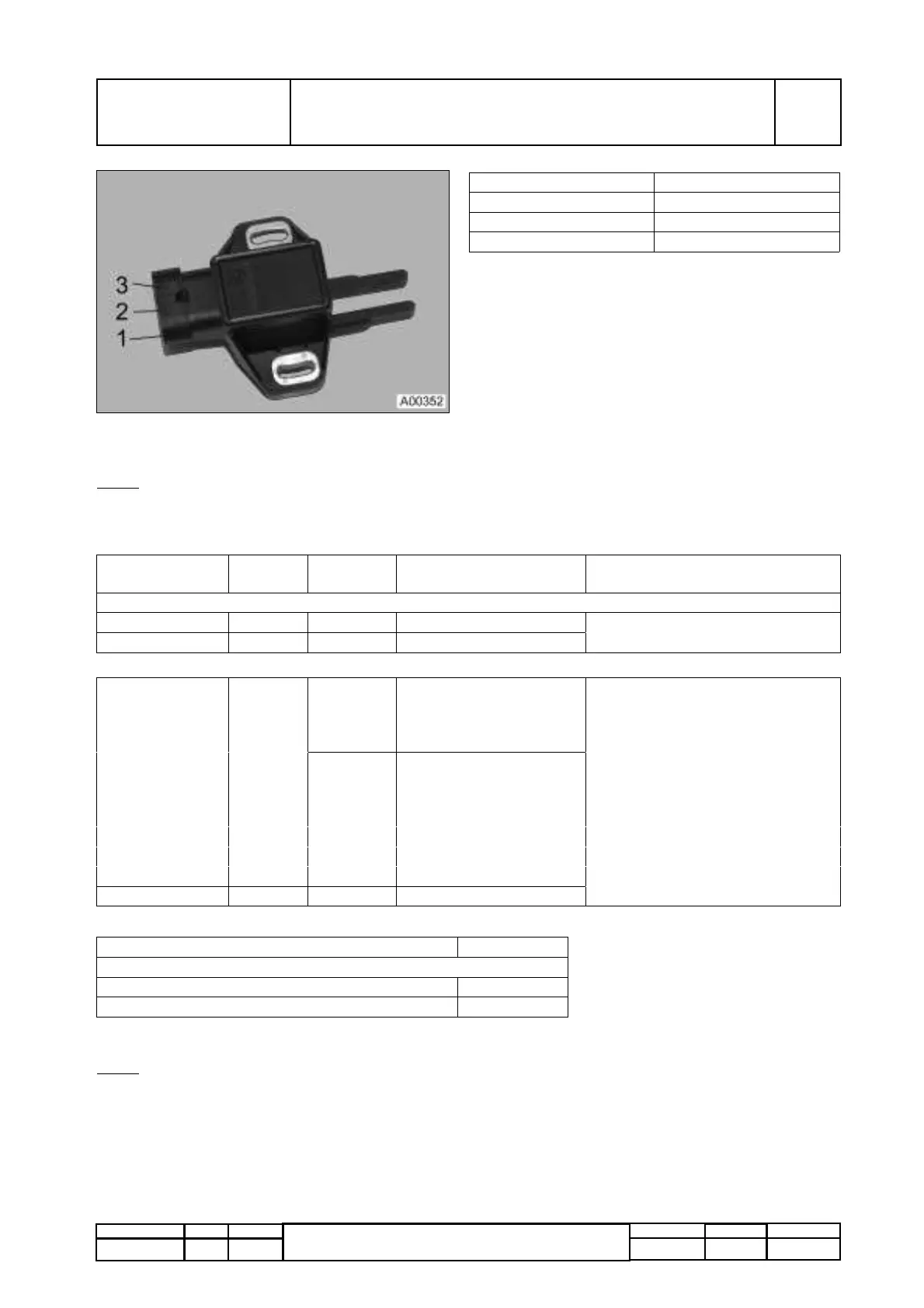

B035 - Hand throttle Position Sensor
Text-module
Note:
Connect Adaptor Connector X 899.980.246.205 directly onto Component B035 .
Ignition "ON".
Text-module
Text-module
+ Supply : Fuse 26 of Fuse board A013
Text-module
Note:
Diagnostic program EDC - Chapter 2000 Reg. B(F.C. 1.1.7E)
Description Engine speed Control EDC - Chapter 2710 Reg. A
Calibration 4002 - Chapter 0000 Reg.F (Calibration Hand Throttle)
Pin Function
1 Earth
2 + Versorgung
3 Signal
Test Pin
Reque-
sted Value Condition Possible Origin of failure
Supply 2 8,5 VDC Value 0 VDC, Failure within
Wiring, Fuse board,Fuse
Earth 1
Signal Amplitude 30 approx. 4
VDC ap-
prox. . 20
mA
Pos. max. Value 0 VDC: Failure within
Component or within Wiring
(Earth or Signal wire).
or approx. 0,7
VDC ap-
prox. 4,0
mA
Pos. min.
Current
Earth 1
Measuring Points on A004 - Side console Pin
Earth 1
Signal ( Setting Hand Throttle) 30
