Farmer 400
Fav 700
Fav 900
Electrics / system in general
S005 / S006 right / left magnetic brake switch
E
Testing
20.2.2001
9000 000069
E
a
1/2
Capitel Docu-No.
Index
Date Version
Page

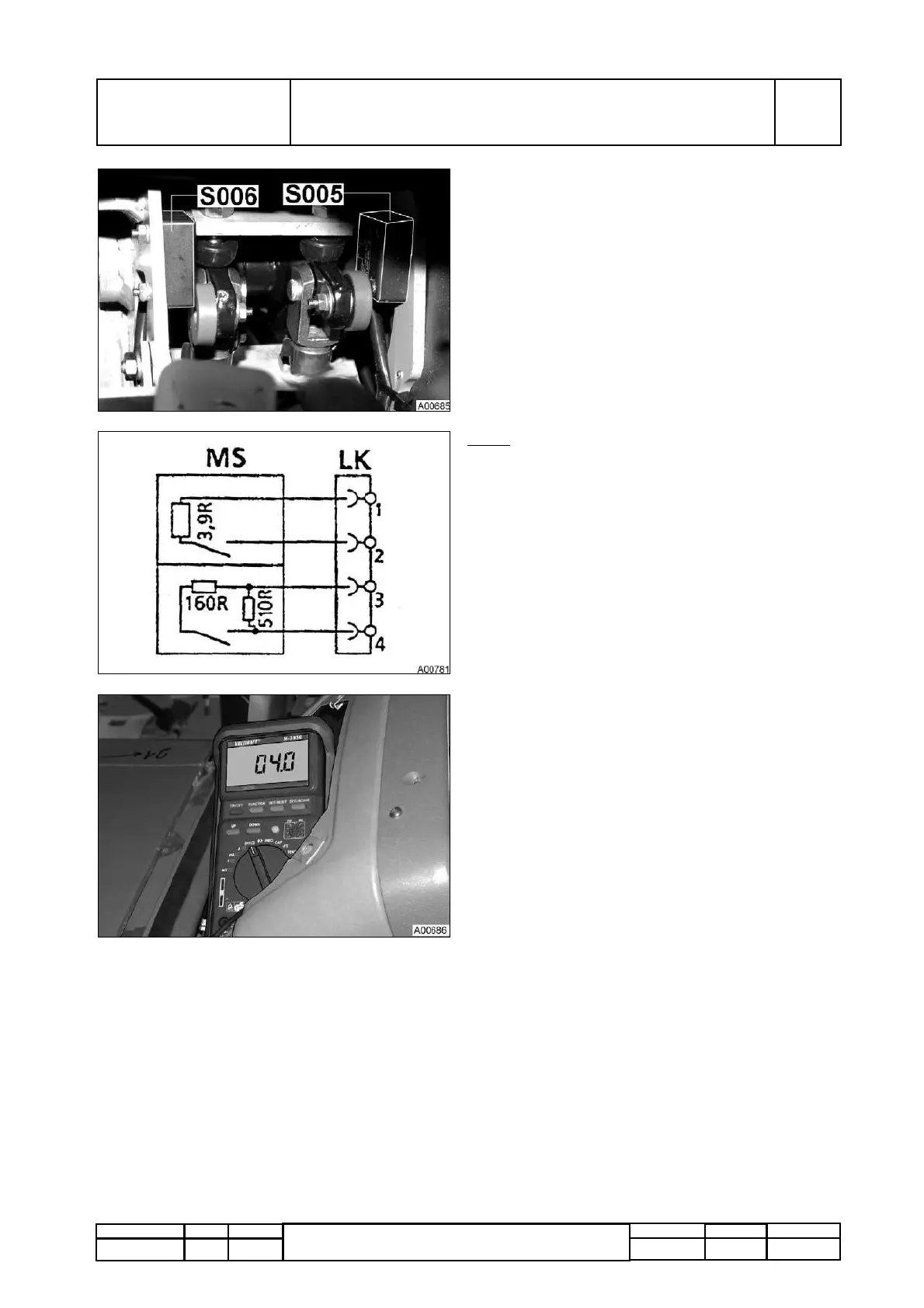

S005 / S006 right / left magnetic brake switch
PM-Picturemodule
PM-Picturemodule
PM-Picturemodule
PMTAB_Picture
At top on brake pedals; shown with clutch/brake
reservoir removed for greater clarity.
S005 = right brake solenoid switch
S006 = left brake solenoid switch
To test, connect adapter cable
(DIY using connector G 816.900.043.040).
PMTAB_Picture
Note:
Solenoid switches S005 and S006 are closed
with pedal in rest position.
Pins 1 and 2 for brake light and
compressed-air advance control system
solenoid valve.
Pins 3 and 4 for differential lock control.
For pin assignment see drawing
PMTAB_Picture
Connect multimeter (ohmmeter) and test each
solenoid switch.
Connect pins 1 and 2:
Pedal in rest position approx. 3.9 ohms
Pedal depressed, infinite resistance.
Connect pins 3 and 4:
Pedal in rest position approx. 121 ohms
Pedal depressed approx. 510 ohms
