Farmer 400
Fav 700
Fav 900
Front axle / Suspension
Control system function charts
A
General
Fav 900 chassis number 23/3001 and up
28.11.2000
3050 000001
A
a
1/5
Capitel Docu-No.
Index
Date Version
Page
Control system function charts
Text-module

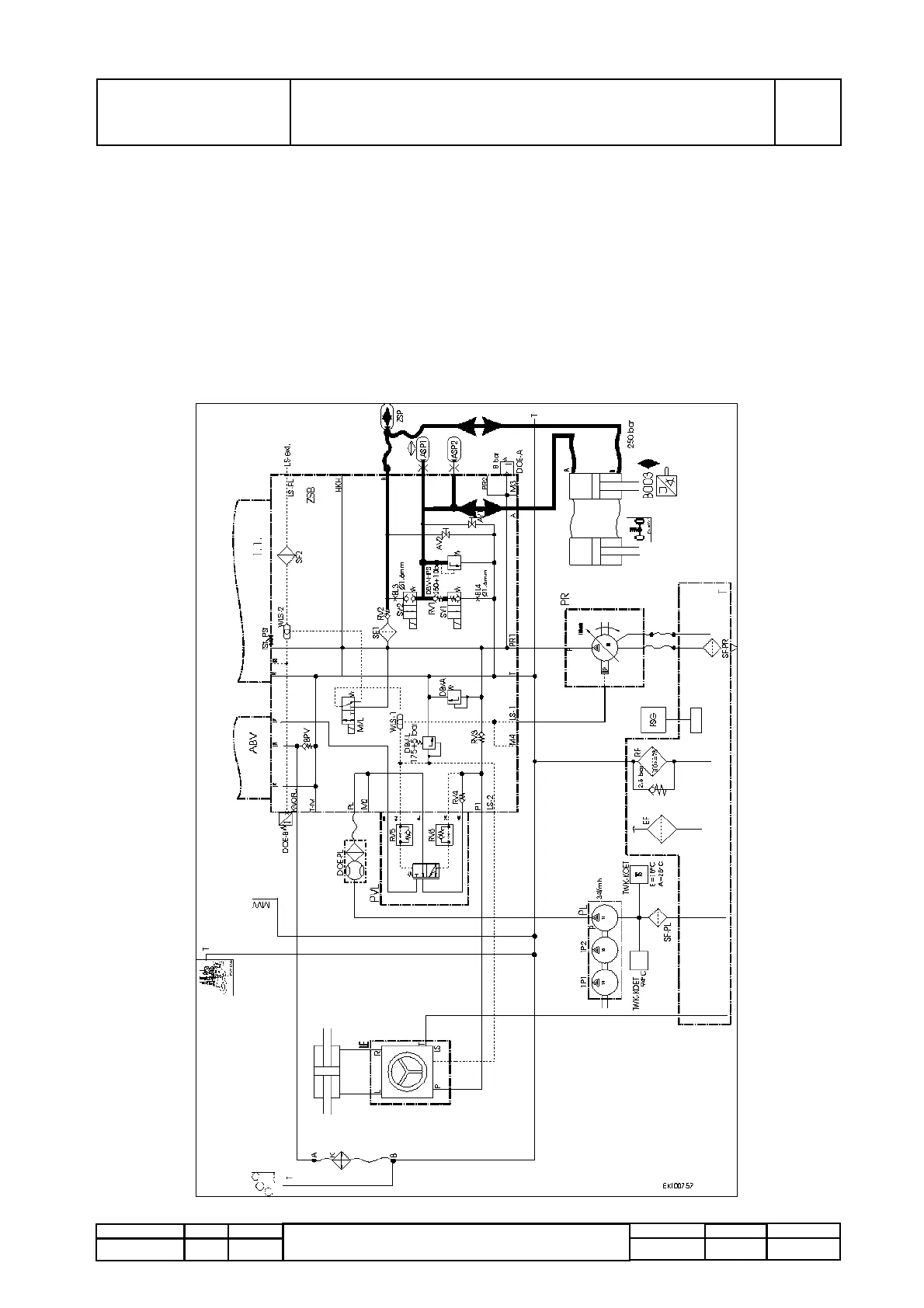

Operational status: Tractor suspension operational
Key: The active position of the relevant valves is marked.
Note: The FARMER 400 has just one suspension cylinder, and thus only one accumulator, ASP1, is
available.
Bullet-List
Function
● Springing = oil passes between cylinder and nitrogen diaphragm accumulator
● Peak pressures are limited to 250 bar by pressure-relief valve DBV-HPS.
● Relevant e-box continuously determines average of all movements (position sensor B003).
● Any deviations (longer than 1.5 seconds) from level-controlled mid-position trigger correction
(=raise).
PM-Picturemodule
Text-module
PMTAB_Picture
