Air compressor / General system
Checking dual-line brake system in tractor
E
Testing
06.11.2001
8800 000003
E
a
1/2
Capitel Docu-No.
Index
Date Version
Page

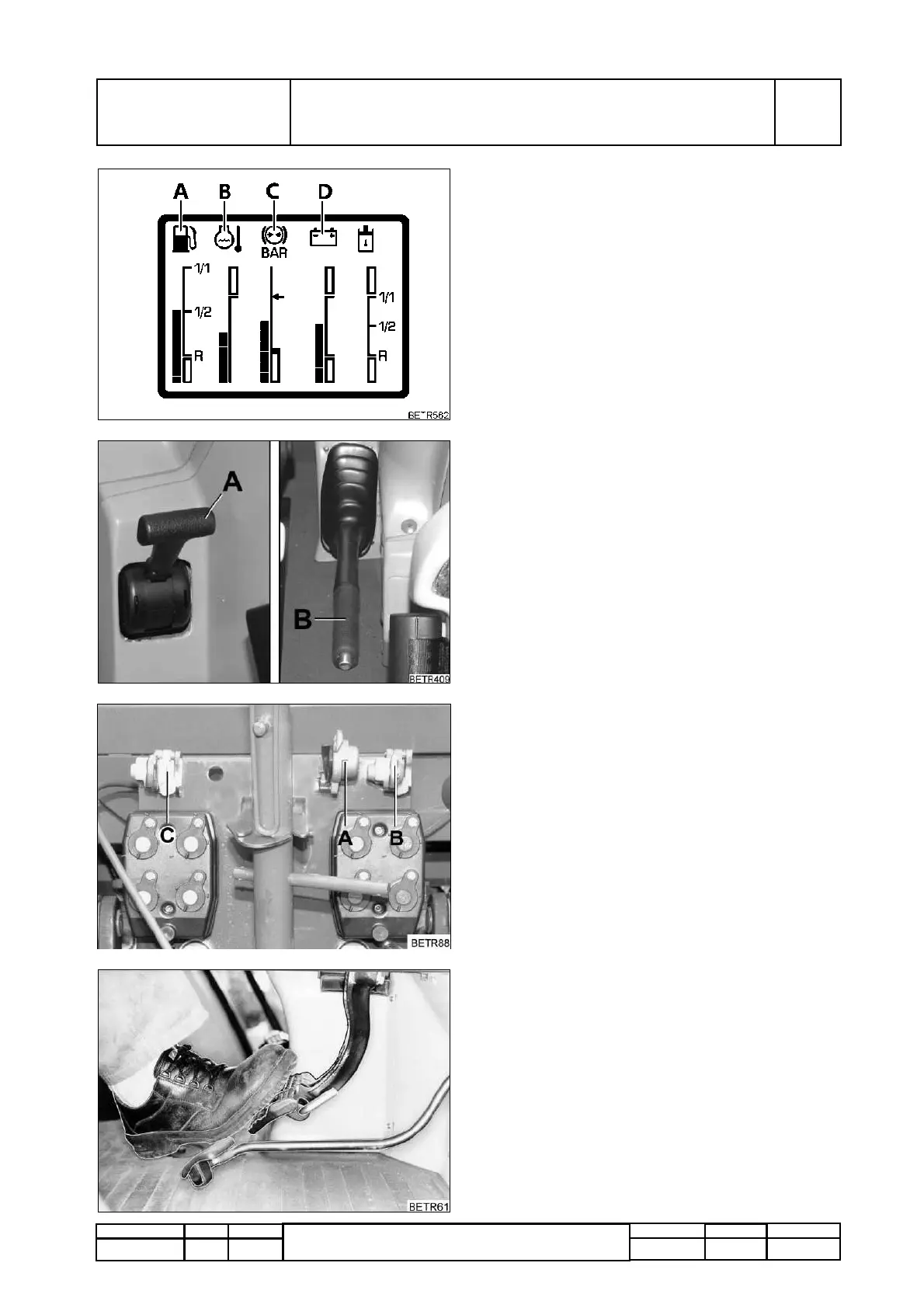

Checking dual-line brake system in tractor
PM-Picturemodule
PM-Picturemodule
PM-Picturemodule
PM-Picturemodule
PMTAB_Picture
C = Compressed-air volume
Fill air compressor until cut-out pressure is
reached.
PMTAB_Picture
A = Pneumatic handbrake
B = Mechanical handbrake (optional extra)
Release handbrake.
PMTAB_Picture
A = Coupling head (black), single-line brake
system connection
B = Coupling head (red), dual-line system,
storage tank
C = Coupling head (yellow), dual-line system,
brakes
Connect test pressure gauge to coupling head
(yellow).
Target value: 0 bar
PMTAB_Picture
Actuate footbrake.
