Hydraulic pump assembly / Transmission pump
Installation and removal of 1P1 - servopump
G
Repair
Fav 900 chassis number 23/3001 and up
23.08.2001
9420 000001
G
a
1/6
Capitel Docu-No.
Index
Date Version
Page
Installation and removal of 1P1 - servopump
PM-Picturemodule
Text-module
Text-module
Note:
Chapter 1005 Reg. C - Transmission hydraulic circuit diagram with key
Chapter 1005 Reg. E - Transmission pressure test

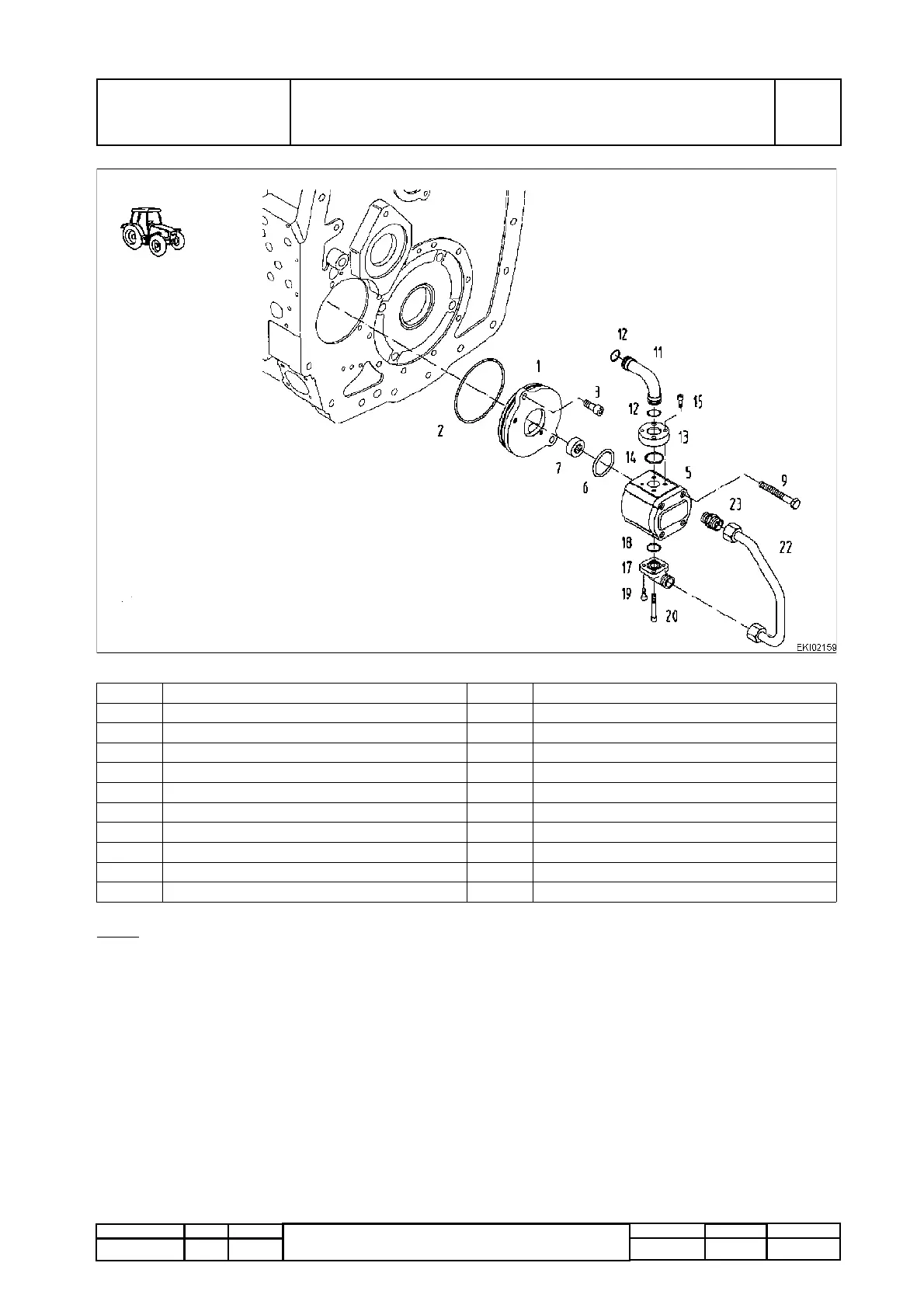

PMTAB_Picture
Item Designation Item Designation
1 Centering cover 13 Intake flange
2 O-ring 14 O-ring
3 Socket head cap screw 15 Socket head cap screw
5 1P1 - servopump 17 Flange socket
5 Seal set 18 O-ring
6 O-ring 19 Socket head cap screw
7 Driver 20 Socket head cap screw
9 Hexagon screw 22 Pressure pipe
11 Bend 23 Screw socket
12 O-ring
