M002 / M004 - front / rear wiper motor
PM-Picturemodule
PM-Picturemodule
PM-Picturemodule
PM-Picturemodule
PMTAB_Picture

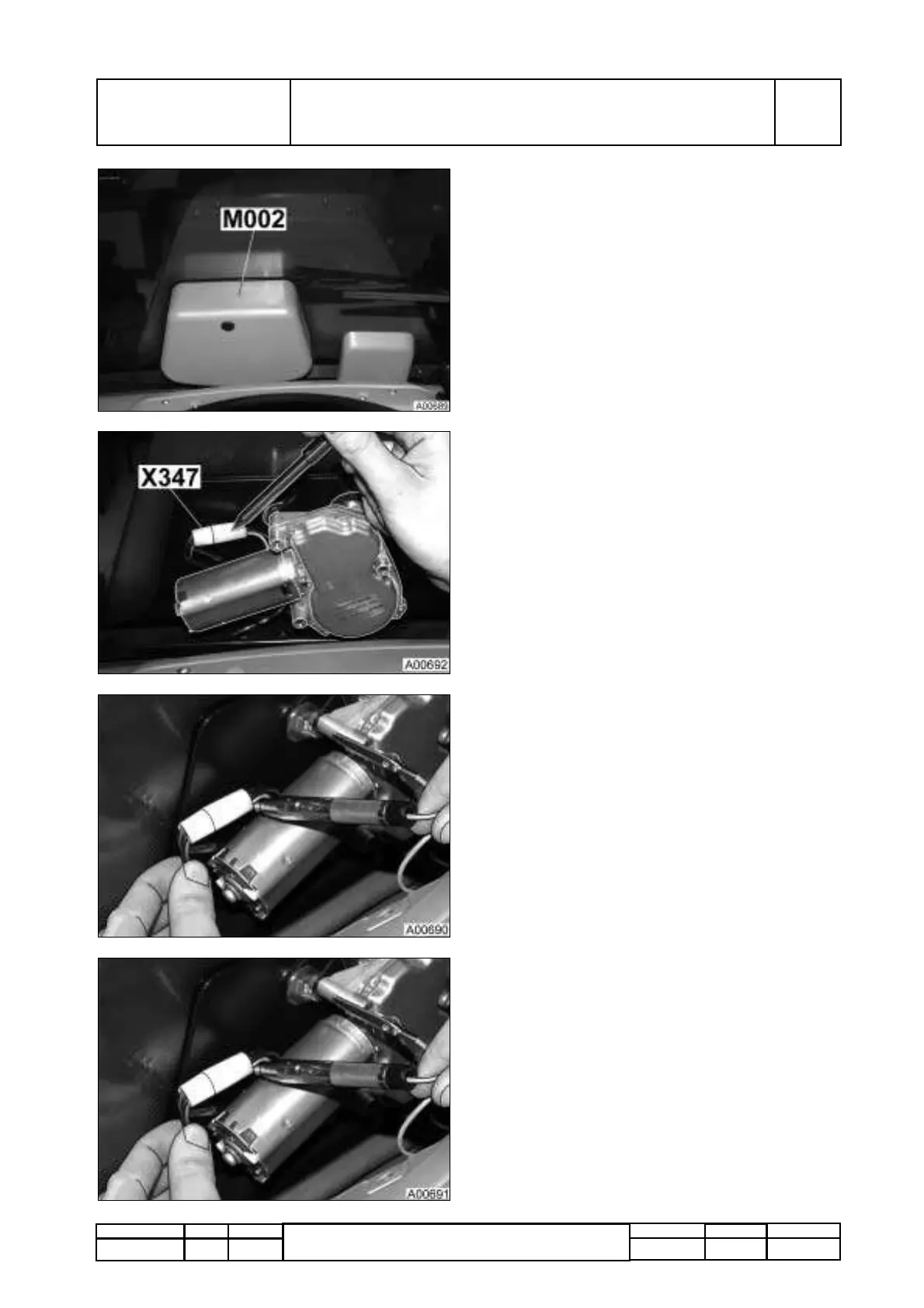

In windscreen:
M002 = front wiper motor
PMTAB_Picture
X347 = cable coupler to front wiper motor
PMTAB_Picture
Testing wiper motor M002
Switch on ignition and wiper motor.
Connect yellow electric cable and earth (wiper
motor) at cable coupler X347.
If voltage is present and wiper motor M002 is not
running, wiper motor M002 is defective.
PMTAB_Picture
Testing wiper shut-off (park position)
Ignition "ON"
Connect black/green electric cable and earth
(wiper motor) at cable coupler X347.
Is voltage present?
Switch wipers on, wiper motor runs.
Connect black electric cable and earth (wiper
motor).
Voltage pulsates. If voltage does not pulsate, end
shut-off in wiper motor is defective.
