FENDT FAVORIT 900 - G - Repair; Bleeding clutch hydraulics

Fav 900
Transmission / Clutch actuation system
Bleeding clutch hydraulics
G
Repair
13.06.2001
1100 000003
G
a
1/2
Capitel Docu-No.
Index
Date Version
Page
Bleeding clutch hydraulics
PM-Picturemodule
Text-module
Text-module
Note:
Hydraulic circuit diagram of clutch hydraulics - see Chapter 1005 Reg.C - Transmission
hydraulic circuit diagram

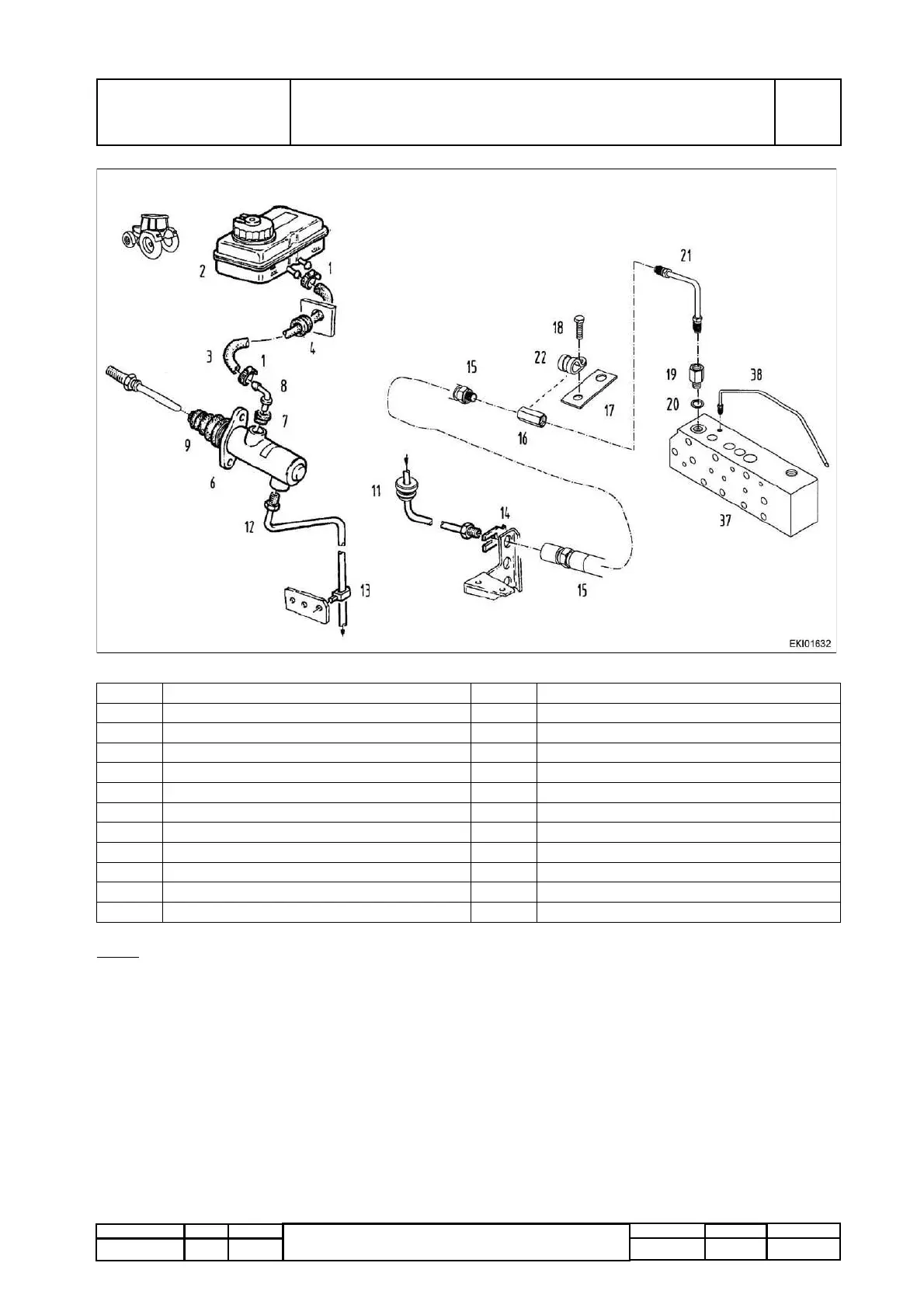

PMTAB_Picture
Item Designation Item Designation
1 Hose clip 14 Hose bracket
2 Expansion tank 15 Brake hose
3 Pressure hose 16 Spacer
4 Grommet 17 Bracket
6 Clutch master cylinder 18 Self-tapping screw
6 Repair kit 19 Screw connector
7 Rubber plug 20 Sealing ring
8 Elbow joint 21 Brake line
9 Protective cap 22 Pipe clip
11 Grommet 37 Valve unit
12 Connecting pipe 38 Bleed line
