Service Information
Setting and checking the start of delivery
Group
2
KDM
17/01
Favorit 900
Chapter No
2000
Reg.
H
Doc-No.
000003
Intended only for the personal use of the recipient. Disclosure or reproduction requires our express consent.
1
Machines affected: 916/23/.... 916/24/....
920/23/.... 920/24/....
924/23/.... 924/24/....
926/23/.... 926/24/....

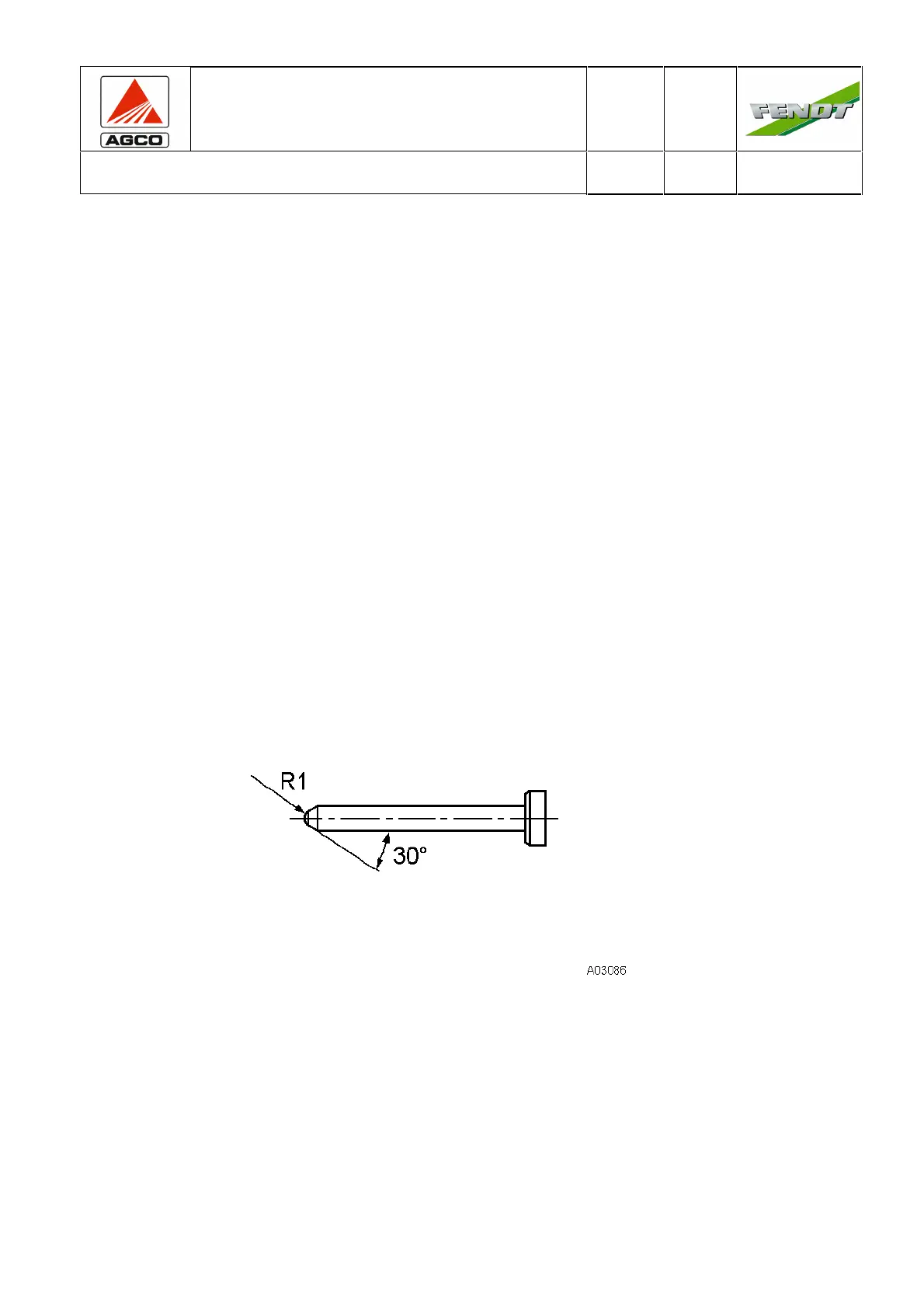

In order to be able to set the start of delivery correctly (refer to the training document or
workshop manual), the measuring tip of the dial gauge must have a radius of 1 mm.
If this radius is greater than 1 mm, exact calibration is impossible.
The start of delivery is set to O.T. (+- 0.5 degree).
If the start of delivery differs by more than 3 degrees, the EDC goes into fault mode and fault
code 1.2.CA is displayed.
A measuring pin with a radius of 1 mm can be ordered from our parts department.
Part number: X 899.980.245.101 Measuring pin FB-VP44
Marktoberdorf, 07.2001 AGCO GmbH & Co.
EKI - Schr en Johann-Georg-Fendt-Str.4
D-87616 Marktoberdorf
