Farmer 400
Fav 700
Fav 900
Power lift / Electrohydraulic control
Rear power lift EPC-C
A
General
Fav 900 chassis number 23/3001 and up
11/04/2001
8610 000004
A
a
1/1
Capitel Docu-No.
Index
Date Version
Page
Rear power lift EPC-C
PM-Picturemodule
Text-module
PMTAB_Picture

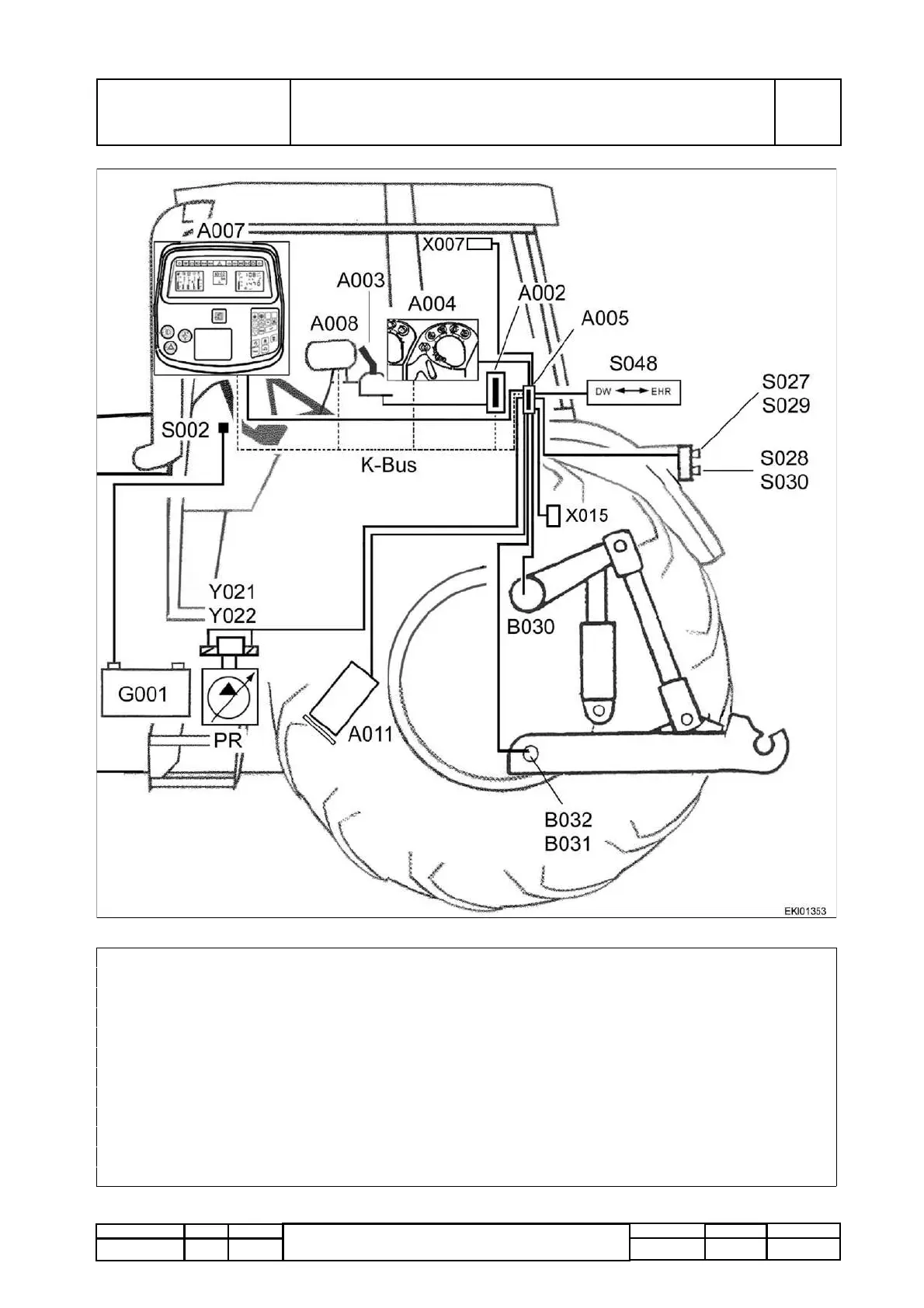

A002 Enhanced controls e-box K-bus Enhanced controls bus
A003 Joystick PR LS pump
A004 Control console S002 Ignition-starter switch
A005 EPC e-box S027 External EPC "Lift" button, right
A007 Instrument panel S028 External EPC "Lower" button, right
A008 Vario terminal S029 External EPC "Lift" button, left
A011 Radar sensor S030 External EPC "Lower" button, left
B030 Rear EPC position sensor S048 EPC/DA switchover solenoid switch
B031 Rear EPC right draft-sensing pin X007 Implement socket cable coupler
B032 Rear EPC left draft-sensing pin X015 Cable coupler for remote control socket
G001 Battery Y021 "EPC lift" solenoid valve
Y022 "EPC lower" solenoid valve
