Fav 900
Engine / Injection Pump
Pre - Pressure / Internal Pressure
E
Testing
Fav 900 Chassis number 23/3001 and up
6.11.2000
2710 000002
E
a
1/2
Capitel Docu-No.
Index
Date Version
Page
Pre - Pressure / Internal Pressure
PM-Picturemodule
PM-Picturemodule
PM-Picturemodule
PMTAB_Picture

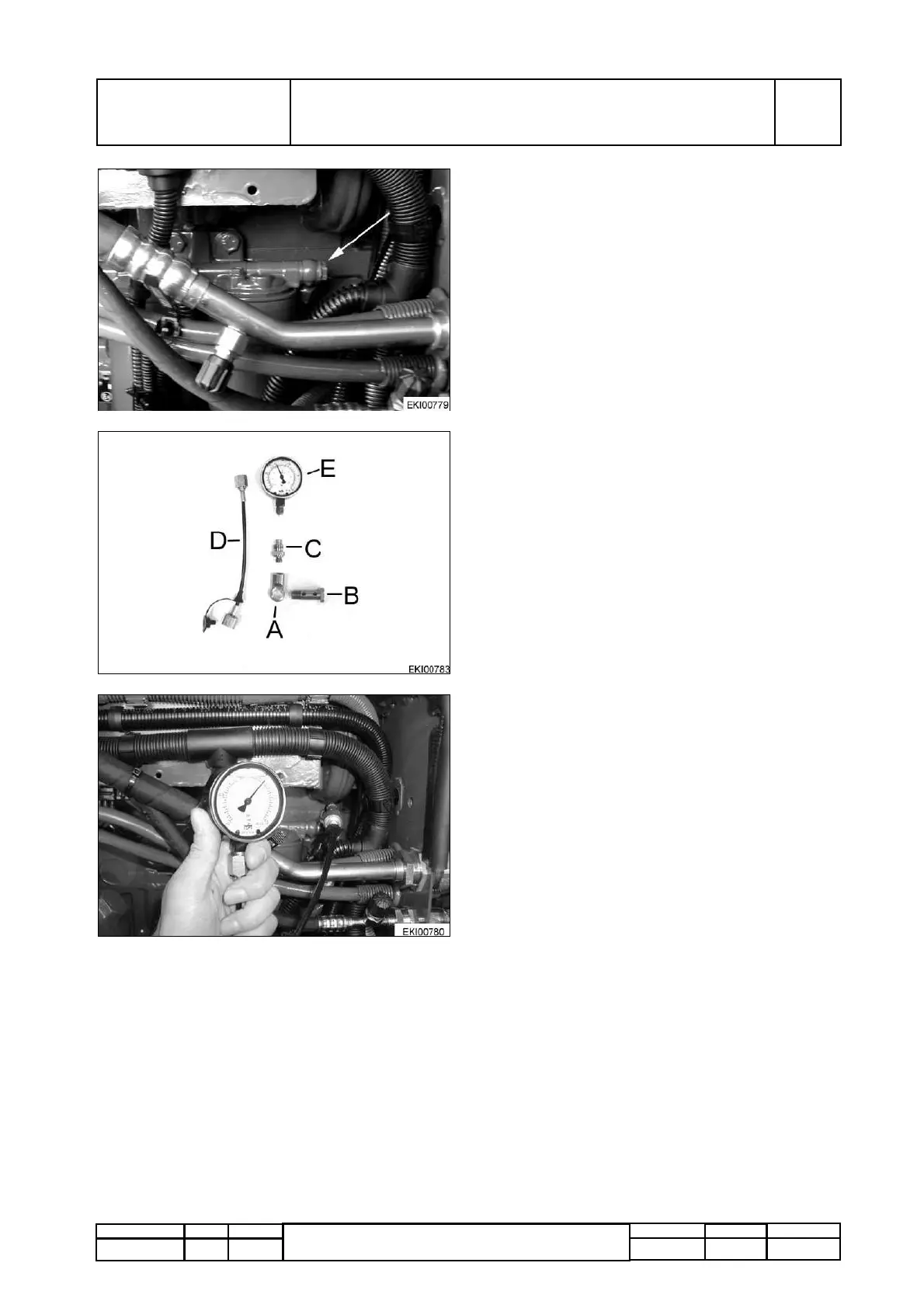

Checking Pump Pressure of injection Pump
VP 44 prüfen.
Loosen Hollow screw on Filter Body.
PMTAB_Picture
Measuring Case X 899.980.217.000
A = Ring stub 14 mm
B = Hollow screw M 14 x 1,5
C = Test Connection M 10 x 1
D = Test Hose
E = Pressure Gauge (Range : 0 bar Absolute -
1,5 bar Relative)
PMTAB_Picture
Start Engine and run it through complete speed
range.
Read Presure on Pressure Gauge.
Requested pressure downstream of filter and
upstream of Pump:
0,1 bar - 0,8 bar
If this value cannot be reached Filter may be
contaminated
To Next Page
