Fav 900
Engine / Injection Pump
Fuel Injection Pump VP 44 - Mounting - Dismounting
G
Repair
Fav 900 Chassis number 23/3001 and up
01/2000
2710 000002
G
b
4/10
Capitel Docu-No.
Index
Date Version
Page

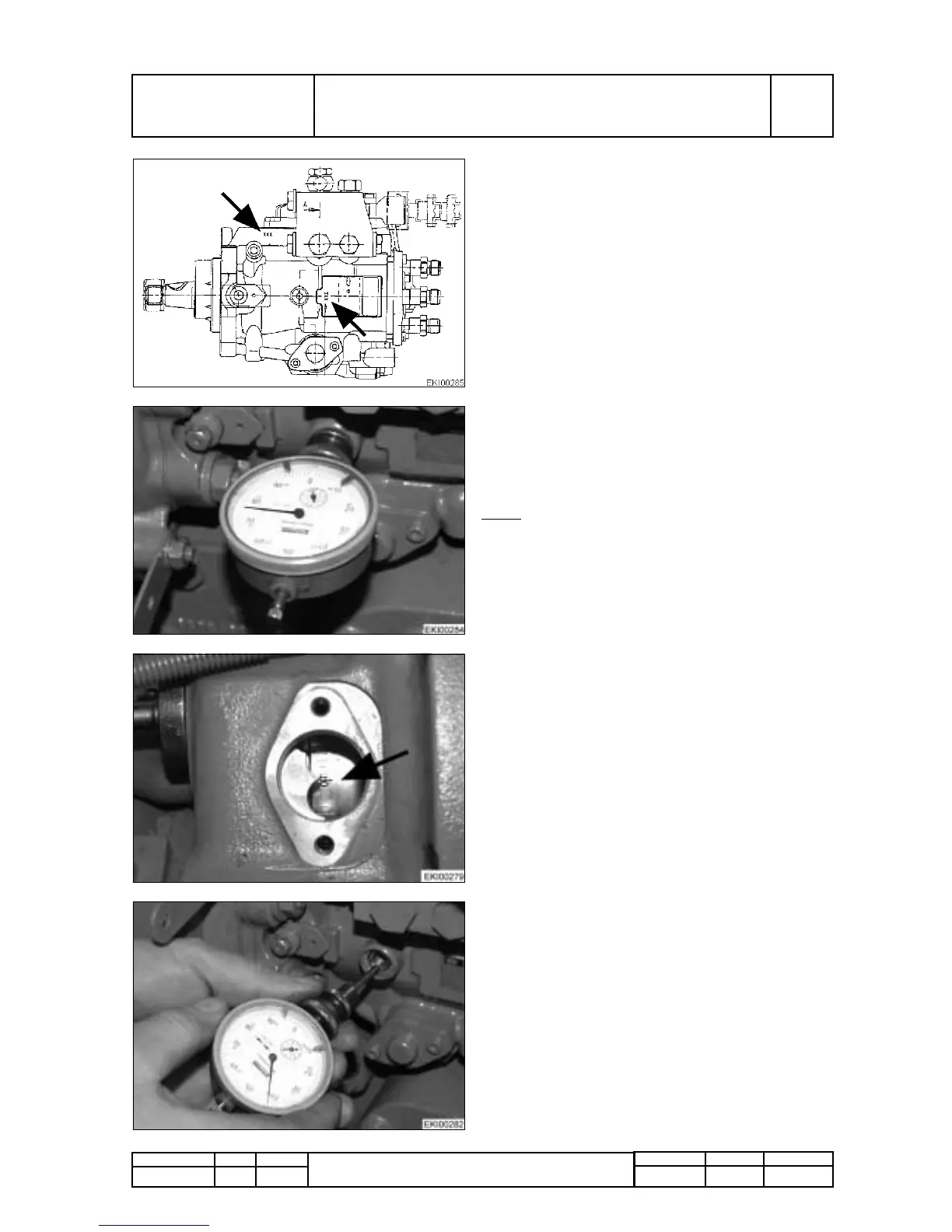

Fuel Injection Pump VP 44 - Mounting - Dismounting
PM-Picturemodule
PM-Picturemodule
PM-Picturemodule
PM-Picturemodule
PMTAB_Picture
3 - digit Number. Marking (arrows) is possible on
following positions.
PMTAB_Picture
Move crank shaft again into TDP Position until the
marked displacement (X . XX) will be reached.
e.G.: Displacement on injection pump 0.79
means 0,79 mm (0.0311") displacement on dial
gauge
Note:
Scanning rod of dial gauge reaches the flat
section of the control shaft.
Do not move the crank shaft any more , in
order to avoid the sheering of the scanning
rod.
PMTAB_Picture
Start of delivery will be adequate if the flywheel is
in position TDO (± 0,5 °).
If this positon is not correct, start of delivery point
will not be correct.
(Check start of delivery, Chapter 2710 Reg.E)
PMTAB_Picture
Remove dial gauge and adaptor.
